Home /Products/Other/ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg

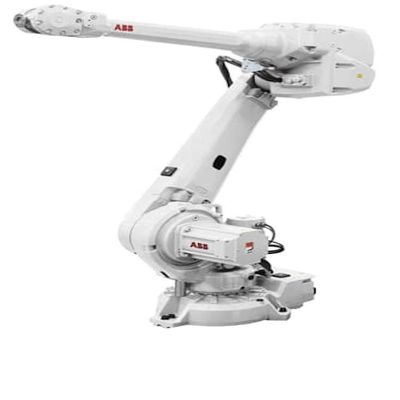

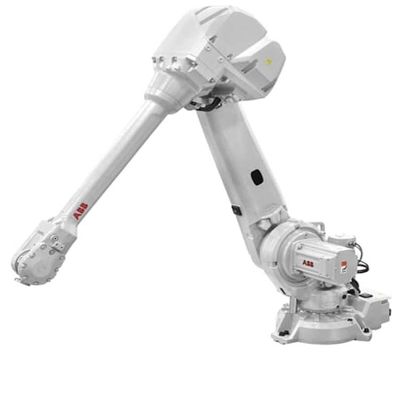

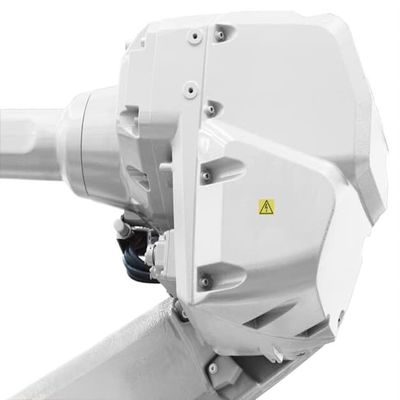

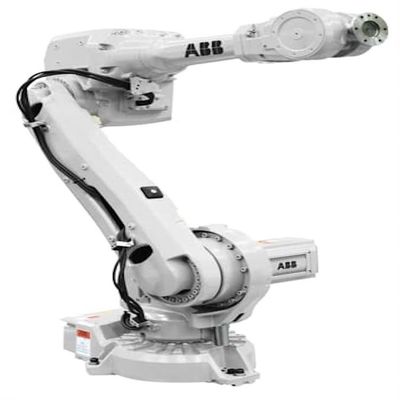

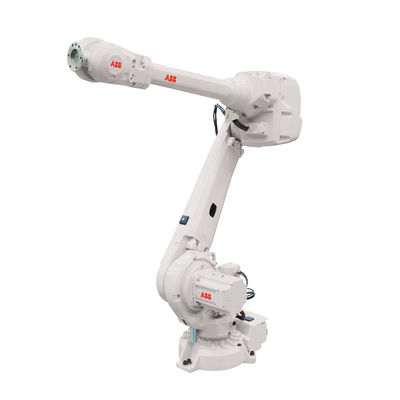

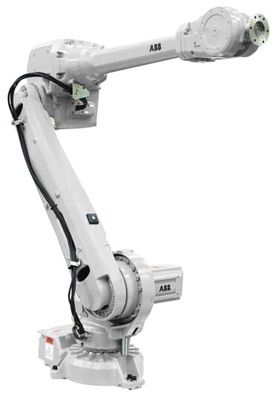

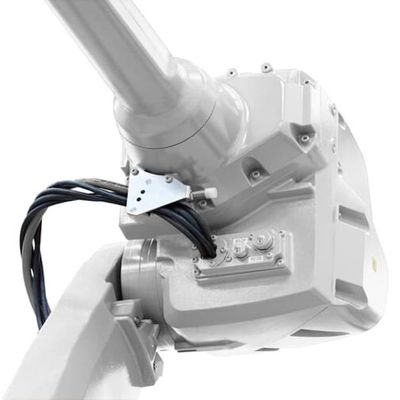

ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg

1 set
MOQ
US $41620.00 - 43360.00/ Set
Price
ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg
Features Gallery Product Description Request A Quote
Features
Specifications
Robot Version: IRB 4600-60/2.05
Reach: 2050mm
Payload: 60Kg
Armload: 20Kg
Protection: Standard IP67
Mounting: Floor,shelf,inverted Or Tilted
Controller: RC5 Single Cabinet
Supply Voltage: 200-600V,50-60Hz
Robot Base: 512x676mm
Position Repeatability: 0.06mm
Highlight:

Articulated Industrial Robot Arm

,

Reach 2050mm ABB Robot Arm

,

IP67 ABB Robot Arm
Basic Infomation
Place of Origin: China
Brand Name: ABB
Model Number: ABB IRB4600-60/2.05
Payment & Shipping Terms
Packaging Details: ONE ABB large industrial total station robotic 6 axis IRB4600-60/2.05 material handling machine packing with fumigation wooden frame, Total WG:850KG(>VG)
Delivery Time: 30-60 work days
Payment Terms: L/C, T/T
Supply Ability: 100 pieces per month
Product Description

ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg 0ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg 1ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg 2ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg 3ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg 4

Specification

Robot version Reach(m) Payload(kg) Armload(kg)
IRB 4600-60/2.05 2.05 60 20
IRB 4600-45/2.05 2.05 45 20
IRB 4600-40/2.55 2.55 40 20
IRB 4600-20/2.50 2.51 20 11
Number of axes 6+3 external(up to 36 with MultiMove0
Protection Standard IP67,as option Foundry Plus 2
Mounting Floor,shelf,inverted or tilted
Controller IRC5 Single cabinet

Performance(according to ISO 9283)

Robot version Position repeatability Path repeatability
IRB 4600-60/2.05 0.06mm 0.46mm
IRB 4600-45/2.05 0.05mm 0.13mm
IRB 4600-40/2.55 0.06mm 0.28mm
IRB 4600-20/2.50 0.05mm 0.17mm

Technical information

Electrical Connections
Supply voltage 200-600V,50-60Hz
Physical
Robot base 512x676mm
Height
IRB 4600-60/2.05 1727mm
IRB 4600-45/2.05 1727mm
IRB 4600-40/2.55 1922mm
IRB 4600-20/2.50 1922mm
Robot weight
IRB 4600-60/2.05 425kg
IRB 4600-45/2.05 425kg
IRB 4600-40/2.55 435kg
IRB 4600-20/2.50 412kg





ABB IRB 4600 6 Axis Industrial Robot Arm Articulated Arm Assembly Reach 2050mm Payload 60Kg Armload 20Kg 5

Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
