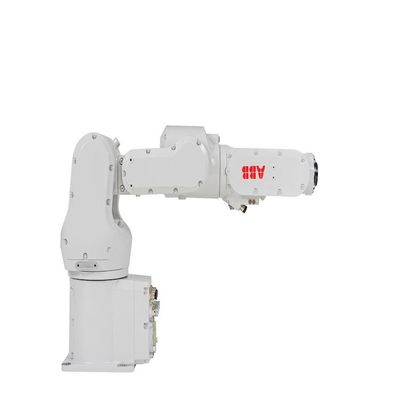

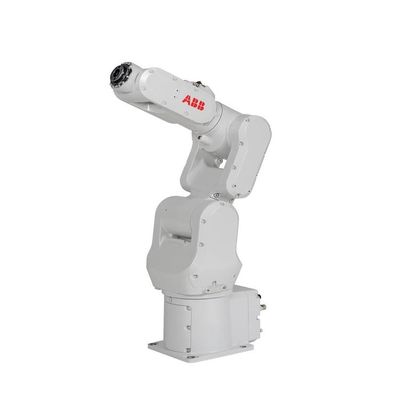

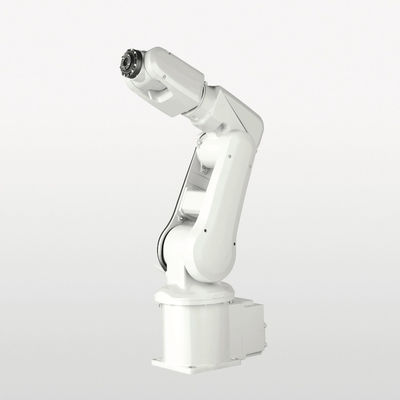

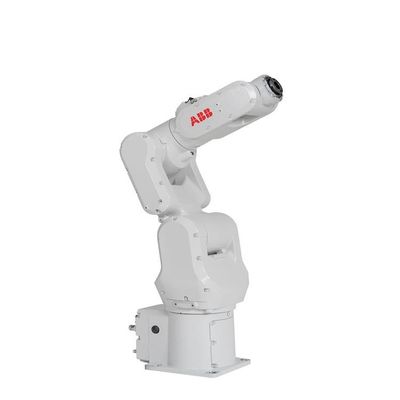

ABB IRB120 6 Axis Industrial Robot Arm Assembly Handling Picking Packing Robot Payload 3Kg Reach 580mm With ICR5 Contro

Basic Information
Place of Origin: China
Brand Name: ABB
Model Number: IRB120
Minimum Order Quantity: 1 set
Packaging Details: Industrial robot and mini industrial robot arm ABB IRB120 6 Axis Industrial Robot Arm Assembly Handling Picking Packing Robot Payload 3Kg Reach 580mm with ICR5 controller packing with fumigation wooden frame, total WG:130KG(>VG)
Delivery Time: 30-60 work days
Payment Terms: L/C, T/T
Supply Ability: 100 pieces per month
Product Name: ABB IRB120 Armload(kg): 0.3
Protection: IP30 Weight: 25kg
Material: Aluminium Alloy Mounting: Any Angle
Integrated Signal Supply: 10 Signals On Wrist Position Repeatability: 0.01mm
Integrated Air Supply: 4 Air On Wrist(5 Bar) Acceleration Time 0-1m/s: 0.07s
Reach: 580mm
High Light:

Reach 580mm ABB Robot Arm

,

Aluminium Alloy ABB Robot Arm

,

Payload 3Kg Robotic Welding Arm

Specification

Robot version Reach(m) Payload(kg) Armload(kg)
IRB 120-3/0.6 0.58 3 0.30
Number of axes 6
Protection IP30
Mounting Any angle

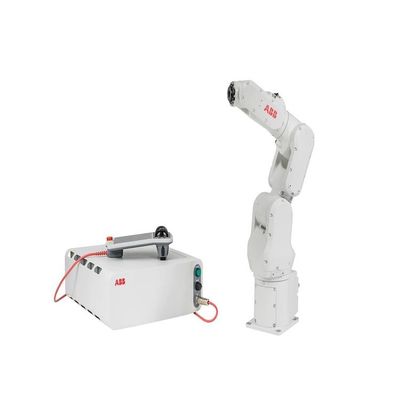

Controller IRC5 Compact/IRC5 Single cabinet
Integrated signal supply 10 signals on wrist
Integrated air supply 4 air on wrist(5 bar)

Performance (according to ISO 9283)



1 kg picking cycle IRB120
25 x300x25 mm 0.58s
25x300x25 with 180°axis 6 reorientation 0.92s
Acceleration time 0-1m/s 0.07s
Position repeatability 0.01mm

Movement

Axis movement Working range Axis max speed IRB 120
Axis 1 rotation +165°to -165° 250°/s
Axis 2 arm +110°to -110° 250°/s
Axis 3 arm +70°to -110° 250°/s
Axis 4 wrist +160°to -160° 320°/s
Axis 5 bend +120°to -120° 320°/s
Axis 6 turn

Default:

+400°to -400°

Max.rev:

+242°to -242°

420°/s

1
