Place of Origin:
China
Brand Name:
ABB
Model Number:
IRB 1200-7/0.7
Contact Us

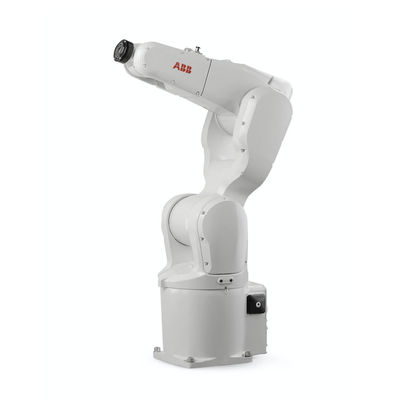

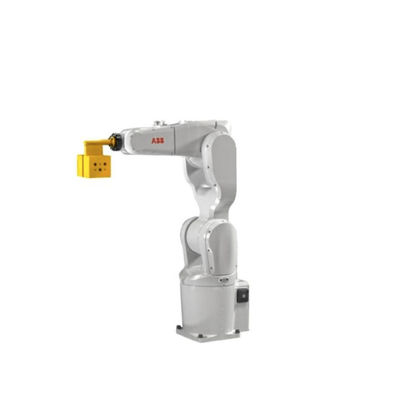

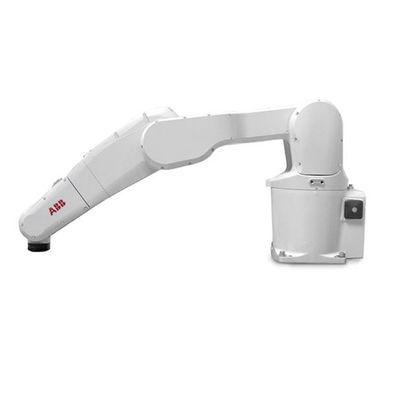

6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 kg
Specification
| Robot version | Reach(m) | Payload(kg) | Armload(kg) |
| IRB 1200-7/0.7 | 0.7 | 7 | 0.3 |
| IRB 1200-5/0.9 | 0.9 | 5 | 0.3 |
| Protection | Standard robot(IP40) or IP67,Foundry Plus 2 based on IP67,Food Grade Lubricant and Clean Room(ISO class 3)based on IP67 | ||
| Mounting | Any angle | ||
| Controllers | IRC5 compact/IRC5 single cabinet | ||
| Integrated signal and power supply | 10 signals on wrist | ||
| Integrated air supply | 4 air on wrist(5 Bar) | ||
| Integrated ethernet | One 100/10 Base-TX Ethernet port | ||
| Accuracy | 0.02mm | ||
Performance(according to ISO 9283)
|
Robot version 1 kg picking cycle |
Reach(m)
|
Payload(kg) |
| 25x300x25 mm | 0.42s | 0.42s |
| Max.TCP Acceleration | 35m/s*s | 36m/s*s |
| Acceleration time 0-1m/s | 0.06s | 0.06s |
| Position repeatability | 0.02mm | 0.025mm |
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Send your inquiry directly to us
