ABB IRB 120 Mini 6 Axis Robot Arm With IRC5 Compact Controller For Picking And Placing Robot Arm

Basic Information
Place of Origin: Chinese
Brand Name: ABB
Certification: ce
Model Number: ABB IRB 120-3/0.6
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 2 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 set/month
Model: IRB 120-3/0.6 Maximum Reach: 580 Mm
Maximum Payload: 3kg Pose Repeatabilit: ± 0.01 Mm
Number Of Axes: 6 Weight: 25 Kg
Protection Rating: IP67
High Light:

Picking ABB Robot Arm

,

3kg Payload ABB Robot Arm

,

580mm Reach ABB Robot Arm



ABB IRB 120 mini 6 Axis robot arm with IRC5 Compact controller for Picking and Placing robot arm



Main Specifications

Model:IRB 120-3/0.6
Maximum reach:580 mm
Maximum payload:3 kg
Pose repeatabilit: ± 0.01 mm
Number of axes :6
Weight:25 kg
Protection rating:IP30



ABB  IRB 120  mini  6 Axis robot arm with IRC5 Compact controller  for Picking  and Placing  robot arm



Product Description
Production Name ABB IRB 120 6 Axis robot arm mini
Model IRB 120-3/0.6
Application pick and place robot
Maximum reach 580 mm
Maximum payload 3 kg
Pose repeatability (ISO 9283) ± 0.01 mm
Number of axes 6
Mounting position any angle
Footprint 180mm x180mm
Weight 25 kg
Protection rating IP30
Controller IRC5 compact ,IRC5 Single cabinet

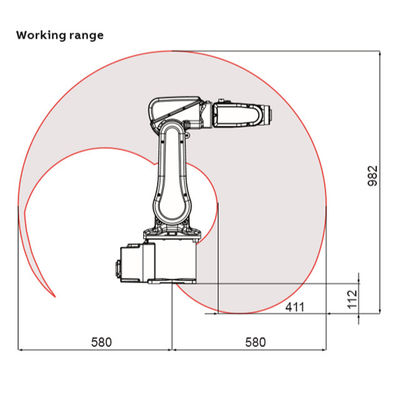

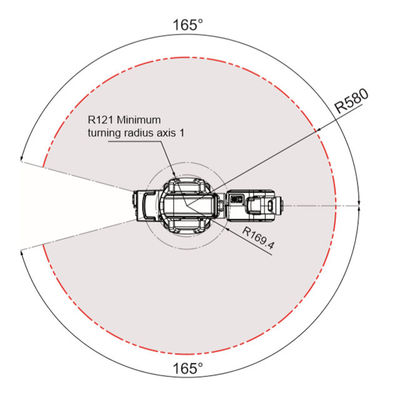

Motion range
A1 +165° to -165°
A2 +110° to -110°
A3 +70° to -110°
A4 +160° to -160°
A5 +120° to -120°
A6 +400° to -400°

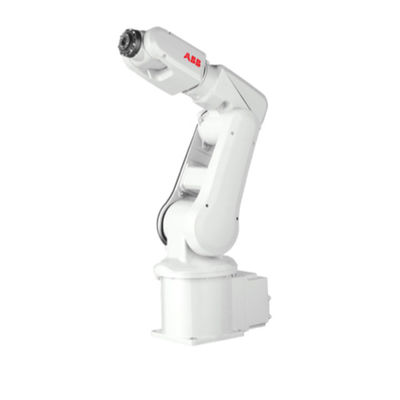

Detailed Images

ABB  IRB 120  mini  6 Axis robot arm with IRC5 Compact controller  for Picking  and Placing  robot armABB  IRB 120  mini  6 Axis robot arm with IRC5 Compact controller  for Picking  and Placing  robot arm ABB  IRB 120  mini  6 Axis robot arm with IRC5 Compact controller  for Picking  and Placing  robot armABB  IRB 120  mini  6 Axis robot arm with IRC5 Compact controller  for Picking  and Placing  robot arm

ABB  IRB 120  mini  6 Axis robot arm with IRC5 Compact controller  for Picking  and Placing  robot arm



Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days



2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3.Quality Assurance



4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
