6 Axis Collaborative Robot Arm AUBO I5 As Welding And Assembly Robot Project

Basic Information
Place of Origin: China
Brand Name: Aubo
Certification: ce eac
Model Number: i5
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 set /month
Maximum Payload: 5 Kg Maximum Reach: 1008 Mm
Pose Repeatability (ISO 9283): ± 0.02 Mm Number Of Axes: 6
Mounting Position: Floor/ Ceiling/Wall I/O Port: 16 In/16 Out
High Light:

6 Axis Collaborative Robot Arm

,

1008mm Reach Collaborative Robot Arm

,

5kg Payload Collaborative Robot Arm







6 axis collaborative robot arm Chinese brand AUBO i5 as welding and assembly robot project













Product Name 6 axis collaborative robot arm Chinese brand AUBO i5 as welding and assembly robot project
Application 6 axis robot arm collaborative robot
Model AUBO i5

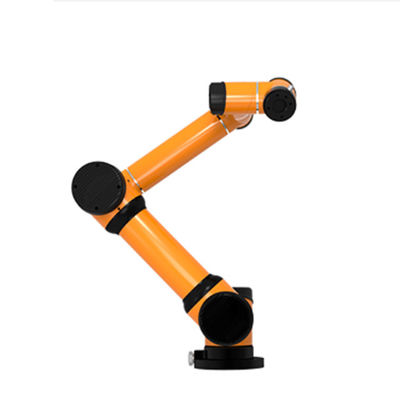

Robot Arm
Maximum reach 1008 mm
Maximum payload 5 kg
Pose repeatability (ISO 9283) ±0.02mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Lifetime 30000h
Weight 24kg / 52.9 lbs
Protection rating IP54
Warranty 1 year
Power consumption Min 90W, Typical 125W, Max 250W
Material Aluminum alloy
Ambient temperature 0-50°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±360°
A2 360°
A3 ±360°
A4 360°
A5 ±360°
A6 ±360°
Controller IRC5 Single Cabinet/IRC5 Compact
Teach pendant
Weight 1.8Kg
Screen 12 inch Resistive LCD touch screen
Cable length 6m
Protection rating IP54
Colour silver and red

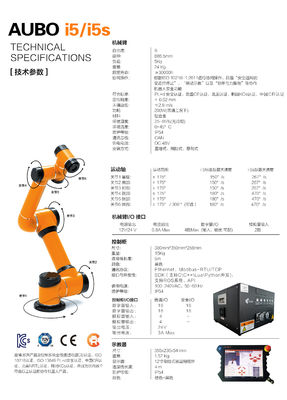

Detailed Images

6 axis collaborative robot arm Chinese brand AUBO i5  as welding and assembly  robot  project







6 axis collaborative robot arm Chinese brand AUBO i5  as welding and assembly  robot  project 6 axis collaborative robot arm Chinese brand AUBO i5  as welding and assembly  robot  project 6 axis collaborative robot arm Chinese brand AUBO i5  as welding and assembly  robot  project





6 axis collaborative robot arm Chinese brand AUBO i5  as welding and assembly  robot  project
