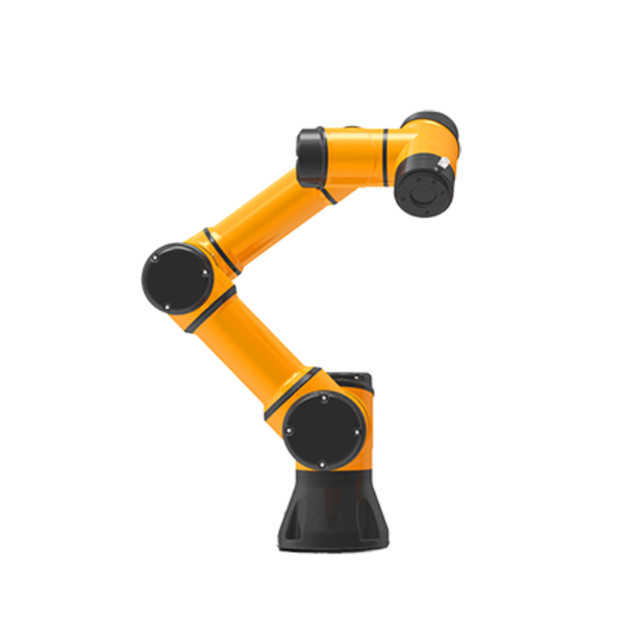

Collaborative Robot AUBO I3 Payload 3kg Picking And Packing Robots 6 Axis

Basic Information
Place of Origin: China
Brand Name: Aubo
Certification: ce eac
Model Number: i3
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 set /month
Maximum Payload: 3 Kg Maximum Reach: 832 Mm
Pose Repeatability (ISO 9283): ± 0.02 Mm Number Of Axes: 6
Mounting Position: Floor/ Ceiling/Wall I/O Port: 16 In/16 Out
High Light:

Payload 3kg Collaborative Robot Arm

,

Picking Packing Collaborative Robot Arm

,

832mm Reach Collaborative Robot Arm







collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis













Product Name collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis
Application 6 axis robot arm collaborative robot
Model AUBO i3

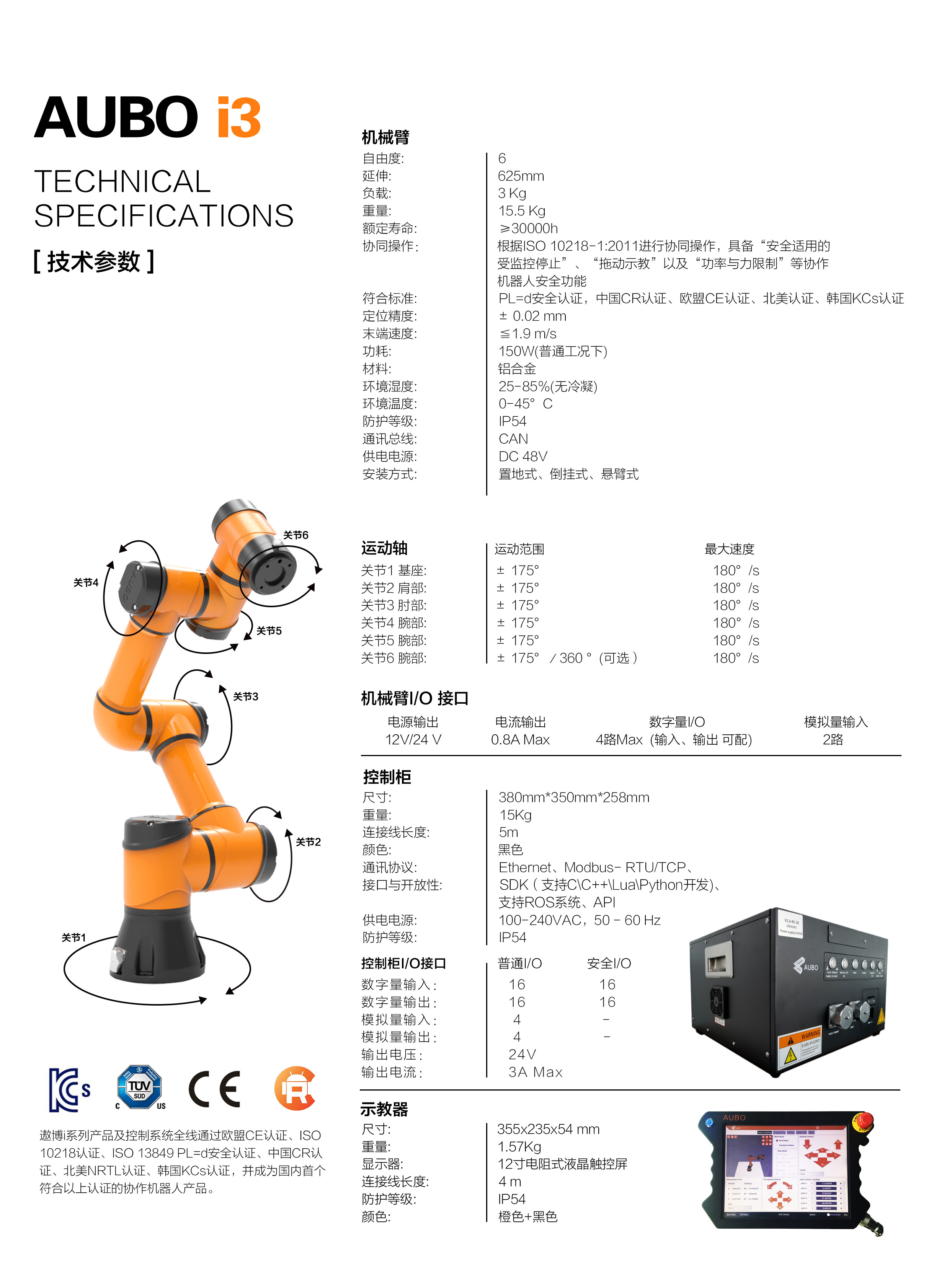

Robot Arm

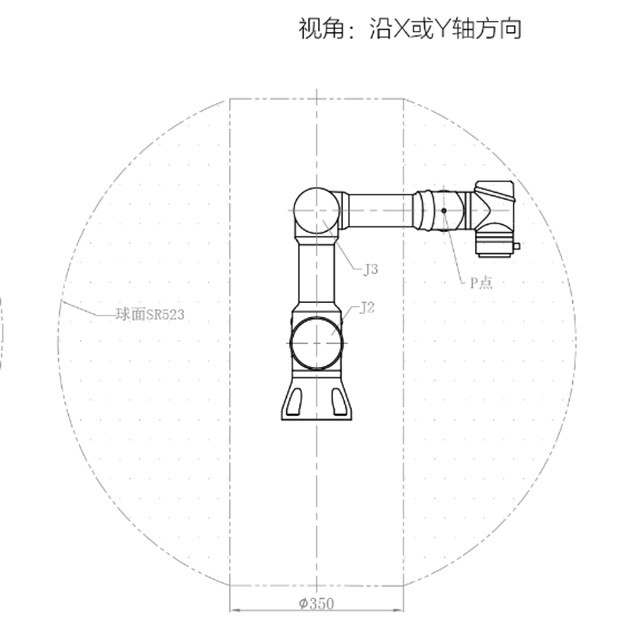

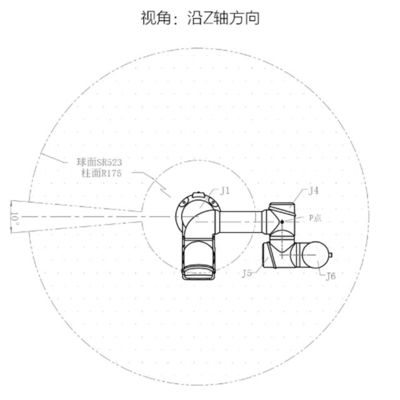

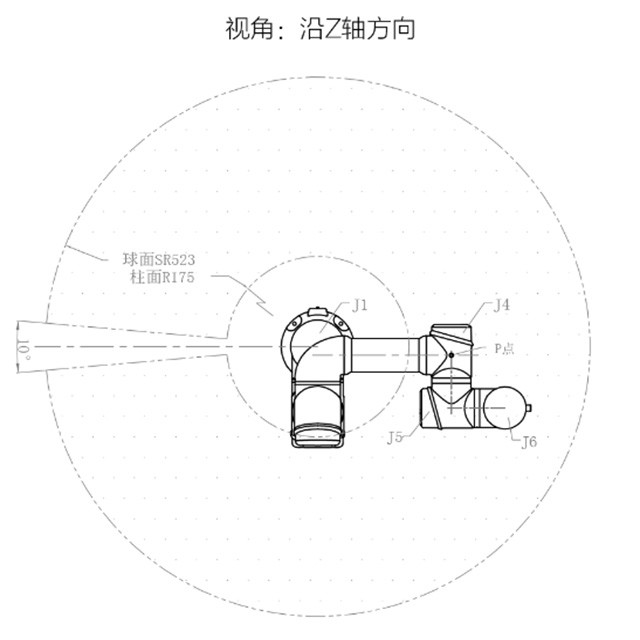

Maximum reach 832 mm
Maximum payload 3 kg
Pose repeatability (ISO 9283) ±0.02mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Lifetime 30000h
Weight 33.1 kg / 73 lbs
Protection rating IP54
Warranty 1 year
Power consumption Min 90W, Typical 125W, Max 250W
Material Aluminum alloy
Ambient temperature 0-50°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±360°
A2 360°
A3 ±360°
A4 360°
A5 ±360°
A6 ±360°
Controller IRC5 Single Cabinet/IRC5 Compact
Teach pendant
Weight 1.8Kg
Screen 12 inch Resistive LCD touch screen
Cable length 6m
Protection rating IP54
Colour silver and red







Detailed Images

collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis







collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis
