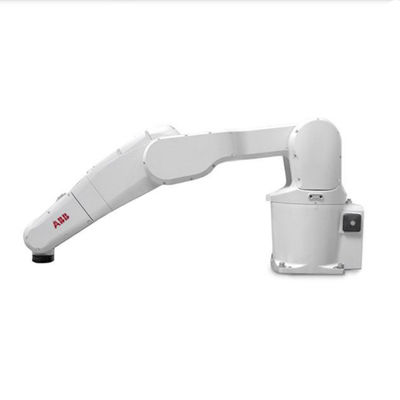

Industrial Robot Arm Payload 5kg Reach 900mm IRB 1200-5/0.9 6 Axis Small Picking Robot Arms

Basic Information
Place of Origin: China
Brand Name: ABB
Model Number: IRB1200
Minimum Order Quantity: 1 set
Packaging Details: One Automatic ABB Robot Arm IRB1200 Small Welding Robot 6 Axis 5kg Handling Capacity with robotiq gripper packing with fumigation wooden frame, Controller and other parts packing with brown box,
Delivery Time: 15 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: Industrial Robot Arm Payload 5kg Reach 900mm IRB 1200-5/0.9 6 Axis Small Picking Robot Arms Axis: 6
Payload: 5kg Reach: 900mm
Mounting: Any Angle Supply Voltage: 200-600 V, 50/60 Hz
Acceleration Time 0-1 M/s: 0.06 S Controller: IRC5 Compact/IRC5 Single Cabinet
Robot Base: 210 X 210 Mm Robot Height: 967 Mm
Robot Weight: 54 Kg
High Light:

Payload 5kg ABB Robot Arm

,

Reach 900mm ABB Robot Arm

,

ABB Picking Robot Arms

AI Robot IRB 120 as Robot Welding Series with ICR5 Controller 6 Axis 3kg arc Reach 580mm Industial Robotic Arm

Specification

Robot version Reach (m)

Payload

(kg)

Armload

(kg)

IRB 1200-5/0.9 0.9 5 0.3
Number of axes 6
Protection Standard robot (IP40) or IP67, Foundry Plus 2 based on IP67, Food Grade Lubricant and Clean Room (ISO class 3) based on IP67
Mounting Any angle
Controller IRC5 Compact/IRC5 Single Cabinet
Integrated signal and power supply 10 signals on wrist
Integrated air supply 4 air on wrist (5 bar)
Integrated ethernet One 100/10 Base-TX ethernet port



Performance (according to ISO 9283)

  IRB 1200-5/0.9
1 kg picking cycle
25 x 300 x 25 mm 0.42 s
Max. TCP Acceleration 36 m/s*s
Acceleration time 0-1 m/s 0.06 s
Position repeatability 0.025 mm



Technical information

Electrical Connections
Supply voltage 200-600 V, 50/60 Hz
Rated power transformer rating 4.5 kVA
Power consumption 0.39 kW
Physical
Robot base 210 x 210 mm
Robot height 967 mm
Robot weight 54 kg





Industrial Robot Arm Payload 5kg Reach 900mm IRB 1200-5/0.9  6 Axis Small Picking Robot Arms 0



Product Description

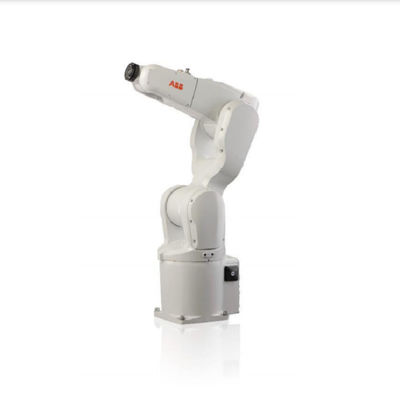

IRB 1200

A compact, flexible, fast and functional small industrial robot

As a family of robots, the IRB 1200 comes in two variants which can handle a wide range of applications. Both IRB 1200 variants can be mounted at any angle and come with IP 40 protection as standard. Both variants are available with Food Grade Lubrication, SafeMove2, Foundry Plus 2 and Clean Room option. The 700 mm reach variant can carry a payload of up to 7 kg, while the longer reach 900 mm variant can carry up to 5 kg of payload.



Food Grade Lubrication and Clean Room option

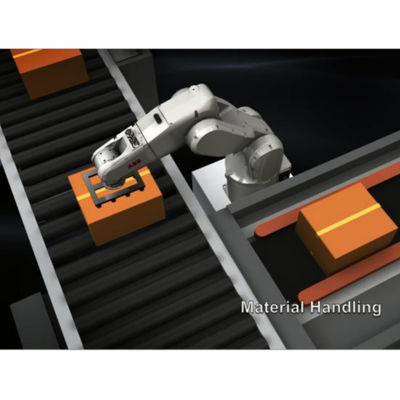

This Food Grade Lubrication (NSF H1) option includes Clean Room ISO class 3 and IP67 protection rating which ensure uncompromising safety and hygiene for food and beverage applications. The Clean Room ISO class 3 design eliminates the potential for contamination of the food handling area. This option provides smooth surfaces and makes it easy to keep clean and maintain in environments such as CNC machine tending and material handling in the food industry. This results in features that allow for 15% smaller cells with 10% shorter cycle times.



SafeMove2

The IRB 1200 SafeMove2 becomes the smallest ABB robot to feature the advanced safety-certified monitoring and control software solution which allows robots and operators to work more closely together by restricting robot motion to precisely what is needed for a specific application.



Compact

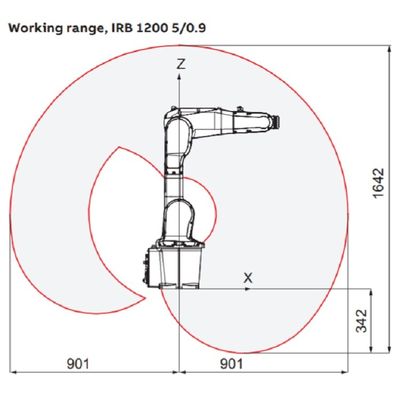

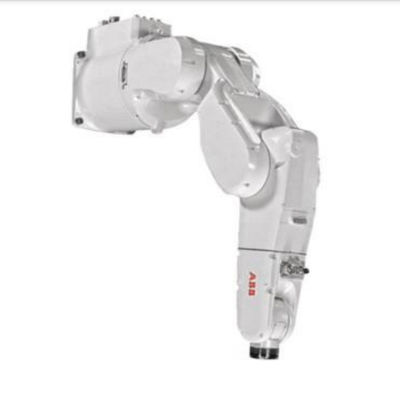

The IRB 1200 has no offset in axis two, which results in a longer stroke than other small robots and it, meaning it can be placed very close to the work piece and still be functional. This allows for a much more compact installation when the robot is mounted on the ceiling inside a small cell, such as in electronics machining or polishing applications. The robots’ large useable working area contained in a small package leads to shorter cycles and more compact machines.



Foundry Plus 2

The IRB 1200 is also available with Foundry Plus 2, ABB’s optional protection system which allows it to withstand harsh environments for example heavy duty metal casting and automotive applications.



Features and benefits

• 15% smaller cells that have 10% shorter cycle times

• Available with Food Grade Lubrication • Optionally with SafeMove2 functionality

• Available with Foundry Plus 2 protection for harsh environments

• IP40 protection as standard; Clean Room, IP67 and Foundry Plus 2 protection are also available options

• 4 air ducts, 10 customer signals and Ethernet routed internally from wrist flange to foot

• Mountable at any angle

• Large useable working area in a compact footprint
