1098-EGR And 1098H-EGR China Regulator

1098-EGR And 1098H-EGR China Regulator

DN 25 Control Valve Positioner

NPT End Control Valve Positioner

Gas Distribution Control Valve Positioner

Place of Origin:

China

Brand Name:

Fisher

Certification:

ATEX, CUTR, PED

Model Number:

1098-EGR /1098H-EGR

Contact Us

Request A Quote
Product Details
Body Sizes:
DN 25, 50, 80, 100, 150, 200 X 150, 300 X 150
End Connection:
NPT, CL150 RF, CL300 RF, CL600 RF, CL125FF, CL250RF, BWE, SWE
Maximum Inlet Pressure:
400 Psig / 28 Bar Or Body Rating Limit Whichever Is Lower
Nitrile (NBR):
-20° To 180°F / -29° To 82°C
Fluorocarbon (FKM):
0° To 300°F / -18° To 149°C
Ethylenepropylene (EPR):
-20° To 275°F / -29° To 135°C
Application 1:
Natural Gas Distribution Systems,etc.
Application 2:
Plant Air Service
Application 3:
Liquid Service
Application 4:
Fuel Gas Supply To Industrial Boilers
Product Description
Product Description
Specification

item

value

Warranty

3 years

Certification

IECEE

Place of Origin

China



Shanghai

Brand Name

Fisher

Model Number

1098-EGR and 1098H-EGR

Body Sizes

DN 25, 50, 80, 100, 150, 200 x 150, 300 x 150

End Connection

NPT, CL150 RF, CL300 RF, CL600 RF, CL125FF, CL250RF, BWE, SWE

Maximum Inlet Pressure

400 psig / 28 bar or body rating limit whichever is lower

Nitrile (NBR)

-20° to 180°F / -29° to 82°C

Fluorocarbon (FKM)

0° to 300°F / -18° to 149°C

Ethylenepropylene (EPR)

-20° to 275°F / -29° to 135°C

Application 1

Natural gas distribution systems,etc.

Application 2

Plant air service

Application 3

Liquid service

Application 4

fuel gas supply to industrial boilers

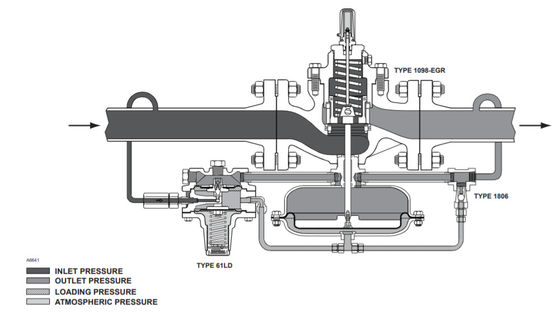

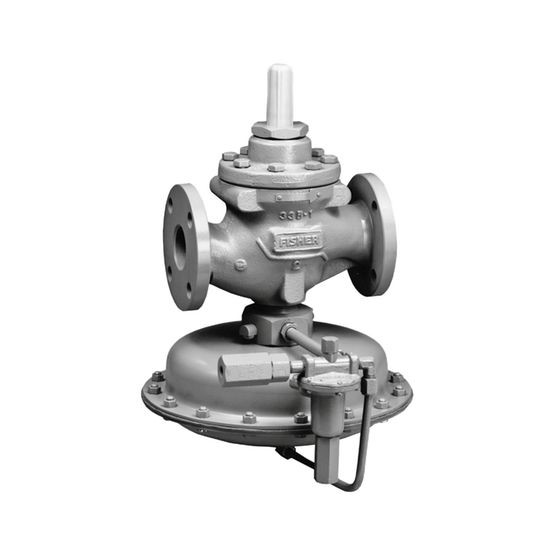

1098-EGR And 1098H-EGR China Regulator 0
1098-EGR And 1098H-EGR China Regulator 1
Packing & Delivery

Valve parts 1098-EGR and 1098H-EGR regulator provide economical and accurate pressure regulator packed with one fumigation wooden box
