Robot Arm 6 Axis 5kg Payload IRB1410 As High Frequency Welders Compact Arc Welding Machine

Basic Information
Place of Origin: China
Brand Name: ABB
Model Number: IRB1410
Minimum Order Quantity: 1 set
Packaging Details: CONTAINER
Delivery Time: 30-60 work days
Payment Terms: T/T, L/C, D/A, Western Union
Supply Ability: 50 set per month
Reach Of 5th Axis (m): 1.44 Handling Capacity (kg): 5
Supplementary Load, On Axis 3 (kg): 18 Supplementary Load, On Axis 1 (kg): 19
Number Of Axes: 6 Mounting: Floor
Controller: IRC5 Single Cabinet/IRC5 Compact Integrated Signal Supply: 12 Signals On Upper Arm
Integrated Air Supply: Max. 8 Bar On Upper Arm Max. TCP Velocity: 2.10 M/s
Continuous Rotation Of Axis: 6 Position Repeatability: 0.02 Mm
Supply Voltage: 200-600 V,50/60 Hz Rated Power Transformer Rating: 4 KVA/7.8 KVA With External Axes
Robot Base: 620 X 450 Mm Robot Weight: 225 Kg
High Light:

5kg Payload ABB Robot Arm


IRB1410 ABB Robot Arm


Arc Welding ABB Robot Arm

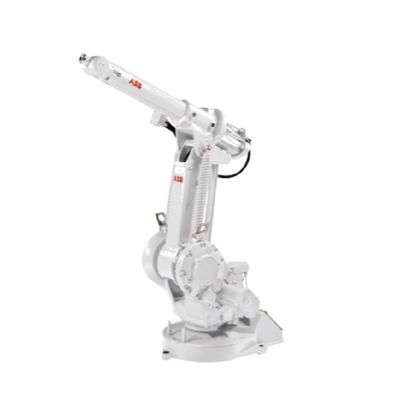

IRB 1410 Industrial Robot

The robot has a handling capacity of 5kg at the wrist with a unique 18kg additional load for applications equipment on the upper arm. Superior levels of control and path accuracy provide excellent work quality.

The ability to adjust process speed and position means you achieve optimum manufacturing accuracy with little or no rejects.

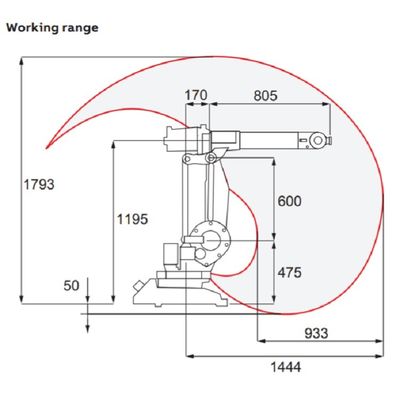

IRB 1410 is known for its stiff and robust construction. This translates into low noise levels, long intervals between routine maintenance and long service life. The robot has a large working area and long reach. The compact design, very slim wrist and high performance operation even in difficult and restricted locations.

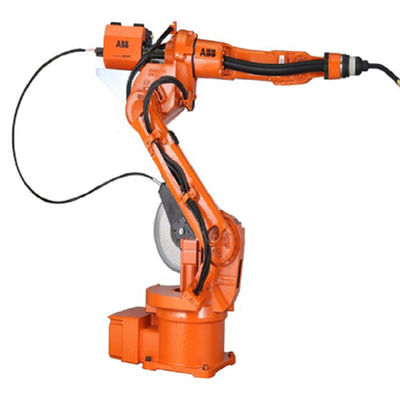

Adapted for arc welding

The IRB 1410 has integrated wire feed cabling and mounting holes for optimized assembly of process equipment on the arm. Easy-to-use arc welding functions are included as standard in the IRC5 robot controller are made available via the patented programming and operation interface unit - the FlexPendant.


Global service and support

For worry-free operation, ABB also offers RemoteService, which gives remote access to equipment for monitoring and support. Moreover, ABB customers can take advantage of the company’s service organization; with more than 35 years of experience in the arc welding sector, ABB provides service support in over 100 locations in 53 countries.


Main applications

• Arc Welding

• Material Handling

• Machine Tending
