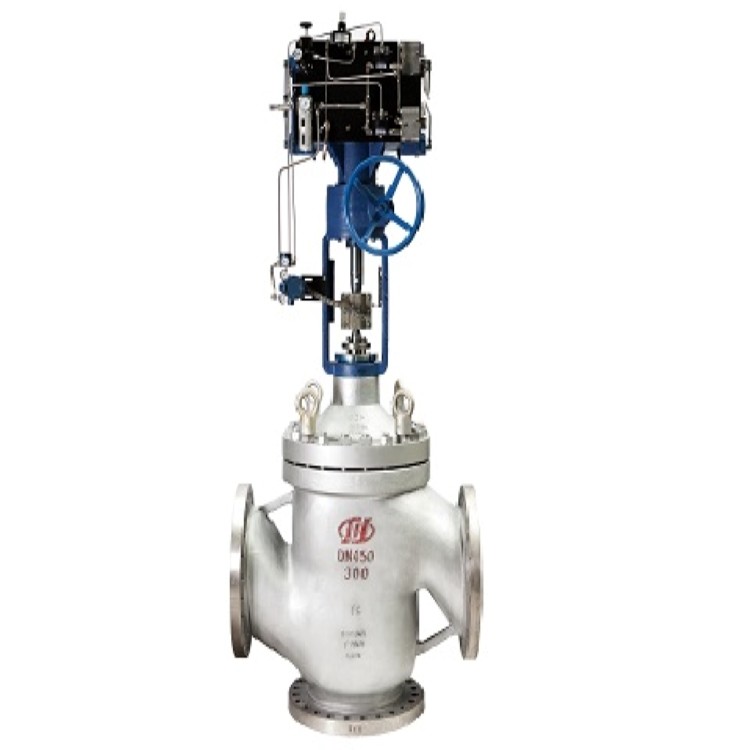

Name: China Three Way Control Valve work in -45~566℃ adjust Fluid Temperature
Brand: Chuanyi
SKU: CV3000 series
Price: 1100 USD
Availability: InStock
Rating: 4.5 (154 reviews)

Home > products > Pneumatic Control Valve >

China Three Way Control Valve work in -45~566℃ adjust Fluid Temperature

450mm Pneumatic Control Valve

ANSI150 Pneumatic Control Valve

ATEX Pneumatic Control Valve

Place of Origin:

China

Brand Name:

Chuanyi

Certification:

ATEX, CUTR, PED

Model Number:

CV3000 series

Request A Quote

China Three Way Control Valve work in -45~566℃ adjust Fluid Temperature

Product Details

Type:

Three-way, Cast Globe Valve

Nominal Size:

DN25～450mm

Rated CV Value:

6.3～3100

Pressure Rating:

ANSI150～600 PN1.6～6.4MPa Fluid

Temperature:

-45～+566℃

End Connections:

Flanged：FF、RF、RJ、TG、MFM

Body & Bonnet Material:

SCPH2/WCB,SCPH21/WC6,SCS13A/CF8,SCS14A/CF8M,SCS16A/CF3M,Ti And Other Alloy Steels .etc.

Rangeability:

30：1

Flow Characteristics:

Linear,EQ%

Leakage:

ANSI Class IV

Pneumatic Control Valve With Burkert Solenoid Valve And DVC6200 DVC2000 Positioner For General Applications

Get Best Price

FOXBORO Positioner and Burkert Valve For Chinese Pneumatic Control Ball Valve

Get Best Price

Masoneilan Positioner SVI2 And Flowmeter For Chinese Pneumatic Control Valve In Stock

Get Best Price

Masoneilan Positioner SVI2 And Air Filter Regulator For Chinese Pneumatic Control Valve

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

Specification

item	value
Warranty	3 years
Type	BALL VALVES, Globe Valves
Certification	Reach
Place of Origin	China
	Fujian
Brand Name	Chuanyi
Model Number	CV3000 SERIES
Application	General
Temperature of Media	Normal Temperature
Power	Pneumatic
Media	Water
Port Size	Air piping:Rc1/4
Structure	BALL
Type	Three-way, cast globe valve
Nominal size	DN25~450mm
Rated CV value	6.3~3100
Pressure rating	ANSI150~600 PN1.6~6.4MPa
Fluid Temperature	-45~+566℃
End connections	Flanged:FF,RF,RJ,TG,MFM
Rangeability	30:1
Flow characteristics	Linear,EQ%
Leakage	ANSI Class IV
Body & Bonnet Material	SCPH2/WCB,SCPH21/WC6,SCS13A/CF8,SCS14A

Packing & Delivery

Three-way ball valve to adjust the fluid temperature control valve packed with one fumigation wooden box
