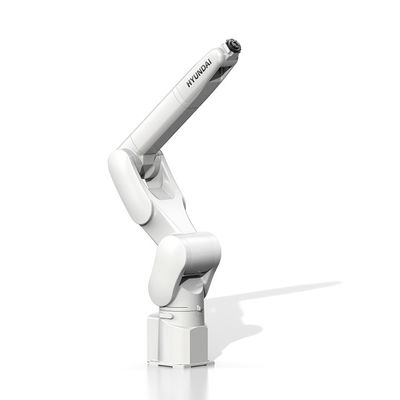

HH4L 6 Axis Payload 4kg Reach 1131mm High Accuracy High Flexibility Assembly Machine Material Handling Robots

Basic Information
Place of Origin: China
Brand Name: Hyundai Robotic
Model Number: HH4L
Minimum Order Quantity: 1 -10 sets
Price: USD 27421-28484 PER SET
Packaging Details: CONTAINERS
Delivery Time: 60 work days
Payment Terms: Western Union, T/T, L/C, D/A
Supply Ability: 10 sets per month
Model: HH4L Structure: Articulated
Degree Of Freedom: 6 Drive Method: AC Servo
Application: Material Handling, Assembly, Sealing Repeatability: ±0.03 Mm
Ambient Temperature: 0 ~ 40 °C Body Weight: 43kg

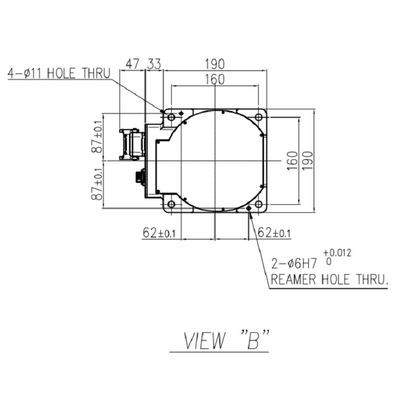

Installation Method: Floor/Wall/Ceiling Applicable Controller: Hi5a-T10, Hi5a-S20
High Light:

Material Handling Kuka Robot Arm

,

6 Axis Kuka Robot Arm

,

Floor Installation Kuka Robot Arm

6 Axis Payload 4kg Reach 1131mm High accuracy High flexibility Assembly machine&Material handling robots

Features
High Speed, High accuracy, Large working envelope, High reliability & flexibility



Max.MotionRange

Main Axes


Wrist Axes

Swivel


Horizontal


Vertical


R2


B(Bending)


R1(Twisting)

±170 °


+180 ° ~ -55 °


+213 ° ~ -70 °


±190 °


±135 °


±360 °

Max.Speed

Main Axes


Wrist Axes

Swivel


Horizontal


Vertical


R2


B(Bending)


R1(Twisting)

300 °/s


230 °/s


360 °/s


550 °/s


550 °/s


1000 °/s

AllowableTorque Wrist Axes

R2


B(Bending)


R1(Twisting)

0.61 kgf·m


0.61 kgf·m


0.30 kgf·m
