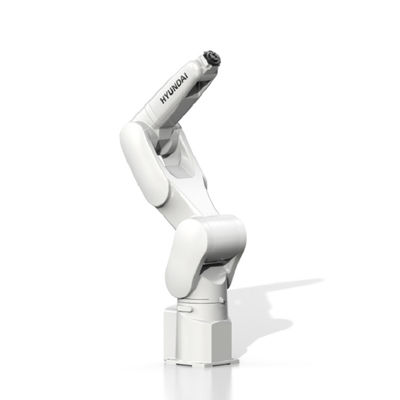

HH8 Payload 8kg Reach 832mm 6 Axis High Accuracy High Speed Assembly Machine Material Handling Robot

Basic Information
Place of Origin: China
Brand Name: Hyundai Robotic
Model Number: HH8
Minimum Order Quantity: 1 -10 sets
Price: USD 24497-25437 PER SET
Packaging Details: CONTAINERS
Delivery Time: 60 work days
Payment Terms: Western Union, T/T, L/C, D/A
Supply Ability: 10 sets per month
Model: HH8 Structure: Articulated
Degree Of Freedom: 6 Drive Method: AC Servo
Application: Material Handling, Assembly, Sealing Repeatability: ±0.03 Mm
Ambient Temperature: 0 ~ 40 °C Body Weight: 42kg
Installation Method: Floor/Wall/Ceiling Applicable Controller: Hi5a-T10, Hi5a-S20
High Light:

Wall Installation Kuka Robot Arm

,

Payload 8kg Kuka Robot Arm

,

Reach 832mm Kuka Robot Arm

Payload 8kg Reach 832 mm 6 Axis High accuracy High Speed Assembly machine&Material handling robot

Features
High Speed, High accuracy, Large working envelope, High reliability & flexibility



Max.MotionRange

Main Axes


Wrist Axes

Swivel


Horizontal


Vertical


R2


B(Bending)


R1(Twisting)

±170 °


+180 ° ~ -55 °


+213 ° ~ -66 °


±190 °


±135 °


±360 °

Max.Speed

Main Axes


Wrist Axes

Swivel


Horizontal


Vertical


R2


B(Bending)


R1(Twisting)

455 °/s


385 °/s


520 °/s


550 °/s


550 °/s


1000 °/s

AllowableTorque Wrist Axes

R2


B(Bending)


R1(Twisting)

1.73 kgf·m


1.73 kgf·m


1.02 kgf·m
