Industrial Robot 6 Axis AR1730 For Welding 25kg Payload Fast And Accurate YRC 1000 Controller Arc Welding Robot

Basic Information
Place of Origin: China
Brand Name: YASKAWA
Model Number: IR1730
Minimum Order Quantity: 1-10 sets
Packaging Details: CONTAINERS
Delivery Time: 60 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50 sets per month
Controlled Axes: 6 Mounting: Floor,Wall,Tilt Or Ceiling

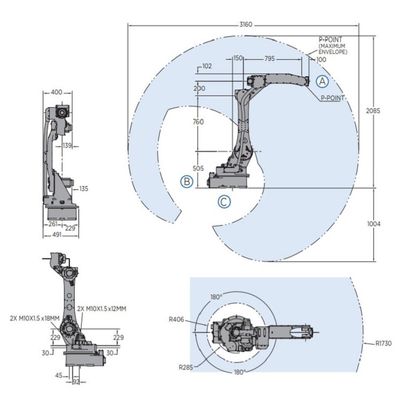

Repeatability: 0.02mm Horizontal Reach: 1730mm
Vertical Reach: 3089mm Controller: YRC1000

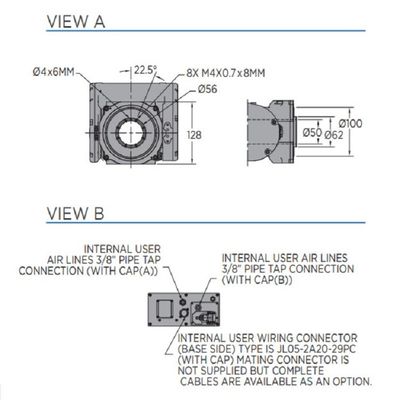

Lnternal User L/o Cable: 17 Conductors W/ Ground Lnternal User Air Line: (1)3/8" Connection
Power Requirements: 380-480 VAc Power Rating: 2kVA
High Light:

AR1730 Yaskawa Robot Arm

,

Arc Welding Yaskawa Robot Arm

,

2kVA Yaskawa Robot Arm

Industrial Robot 6 Axis AR1730 for Welding 25kg Payload Fast and Accurate YRC 1000 Controller Arc Welding Robot

KEY BENEFITS

lncreased payload, axis speedsand wrist inertia improve
throughput and quality
Streamlined arm design reducesinterference
Expanded wrist range improvesapplication flexibility
Single robot-to-controller cableconnection enables fast setup

·Powerful, high-speed, six-axis
AR173O robot is ideal for a variety ofwelding applications.
·High wrist speed and payload
accommodate additional sensorsand accessories required for complex parts.
·Extensive horizontal reach andvertical reach accommodate wide range of parts.
·Work envelope extends behind robot, allowing space for tool storage or maintenance.
·Slim profile design allows close proximity placement of robots forhigh-density workcells.
·Contoured arm allows easy access to parts in tight spots and avoids potential interference with fixtures.

·Patented double-yoke upper arm design is much stronger than other Six-axis integrated cable designs.

·Symmetric wrist profile, with amplerange, provides equal torch accessto both sides of part.
·High allowable moment and inertiaratings provide wrist rigidity and consistent weld quality.

·50 mm thru-hole for torch cabling,hoses and sensor wires reduces cable interference and wear.
·Minimal protrusion from the U-axis and internal S-axis routing prolongcable life and maximize part access.

·Modular robot harness design for improved diagnostics andmaintenance.
·Single pendant provides controlof up to eight robots and multiple positioners.

· Precise coordinated motion withother Yaskawa robots and servo positioners.
· Variety of advanced, exclusive programming functions maximize weld quality and speed.
·The AR1730 has an IP67-rated wristand an IP54 body standard.
·Floor-mounted model is standard.Wall-, tilt- or ceiling-mounted versions are available.
·Compact YRC controller utilizes the lightweight standard teach pendant with intuitive programing.







OPTIONS
·Extended length manipulator cables

·Robot risers
·Wide variety of fieldbus cards

·Vision systems
·Variety of weld packages

·Seam tracking and seam finding packages

·Functional Safety Unit (FSU)
·External axes







SECIFICATIONS

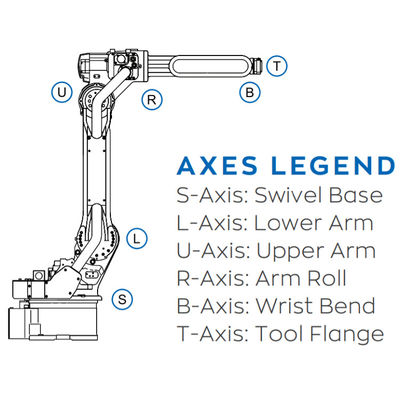

Axes Maximum motion range Maximum speed Allowable moment

Allowable

moment of inertia

  degrees °/sec N·m kg·㎡
S ±180 210 - -
L +155/-105 210 - -
U +160/-86 265 - -
R ±150 420 52 2.3
B +90/-135 420 52 2.3
T ±210 885 32 1.2
