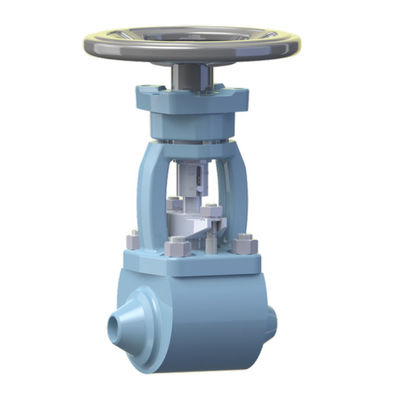

Designed For Highest Pressure And Temperature Applications Model VA510 High Pressure Globe Valve Forged Steel

Designed For Highest Pressure And Temperature Applications Model VA510 High Pressure Globe Valve Forged Steel

PN 630 Pneumatic Control Valve

Socket Weld Pneumatic Control Valve

ASME B16.34 Pneumatic Control Valve

Place of Origin:

China

Brand Name:

Sempell

Model Number:

VA510

Contact Us

Request A Quote
Product Details
End Connection:
Socket Weld, Butt Weld
Body Design:
Long Pattern
Pressure / Rating:
Up To PN 630 / Class 3600
Temperature Range:
Up To +720°C (+1300°F)
Design:
Acc. To PED, EN/DIN Or ASME
Pressure Class:
ASME, PN
Process Connection Type:
BWE, SWE
Seat/Seal Type:
Metal-to-Metal
Shutoff Class:
Class V (FCI 70-2)5
Standards:
ASME B16.34
Style:
Direct-Operated, Globe Valves
Valve Size Standard:
NPS, DN
Valve Type:
Globe, Engineered Product
Product Description

Designed for Highest Pressure and Temperature Applications Model VA510 High Pressure Globe Valve Forged Steel



SPECIFICATION

Product name Sempell Model VA510 Globe Valve
Size range DN 65 to 750 (NPS 2½ to 30)
Pressure / Rating Up to PN 720 / Class 4500
Temperature range Temperature range
Connection Butt weld ends acc. to ASME B16.25 or ISO 9692-1
Design Acc. to PED, DIN/EN or ASME
Valve Size

NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 1-1/4 / DN 32, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3/4 / DN 20, NPS 3/8 / DN 10


Product  Description

Forged steel globe valve designed for isolation and control of high temperature and high pressure applications. This multipurpose globe valve is suitable for manual or automated operation.

Features
T-pattern globe type
Body made of forged steel
Wear resistant stellite body seat
Conical seat with line contact sealing
Visual position indicator
Non-rising hand wheel
Prepared for later automation in service
Low pressure loss due to optimized flow path
Small driving forces
Easy maintenance
Code compliance with DIN, EN and PED
• Stellited seat surface
• One-piece disc-stem made of corrosion resistant 17 % Cr-steel
• Loose backseat
• Outside screw and yoke - non-rising handwheel
• Visual position indicator
• Optional high-temperature design with cooling ribs


Material                     Alloy, Steel, Stainless Steel, Metal, Carbon Steel
Applications        Vents, drains, bypass systems, warm-up lines, in conventional power plants
