Medium Industrial Robots ABB IRB 4600 Robotic Welding Machine With 6 Axis

Basic Information
Place of Origin: Chinese
Brand Name: ABB
Certification: ce eac
Model Number: ABB IRB 4400
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 2 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 set/month
Model: ABB IRB 4600 Maximum Reach: 2050mm
Maximum Payload: 45kg Pose Repeatabilit: ± 0.05 Mm
Number Of Axes: 6 Weight: 425 Kg
Protection Rating: Standard Version IP 54, Foundry Plus 2 IP 67
High Light:

ABB IRB 4600 ABB Robot Arm

,

2050mm Reach ABB Robot Arm

,

45kg Payload ABB Robot Arm

medium industrial robots IRB 4600 welding robotic machine with 6 axis



Main Specifications:



Model:IRB 4600
Maximum reach:2050 mm

Maximum payload:45 kg
Pose repeatabilit: ± 0.05 mm
Number of axes :6
Weight:425kg
Protection rating: IP 67 with Foundry Plus 2 option



medium industrial robots IRB 4600 welding robotic machine with 6 axis



Product Description
Production Name ABB IRB 4600
Model IRB 4600-45/2.05
Application laser cutting robot arm
Maximum reach 2050 mm
Maximum payload 45kg
Pose repeatability (ISO 9283) ± 0.05 mm
Number of axes 6
Mounting position Floor, shelf, inverted or tilted
Footprint 512mm x 676mm
Weight 425 kg
Protection rating IP67 with Foundry Plus 2 option
Controller IRC5 Single cabinet

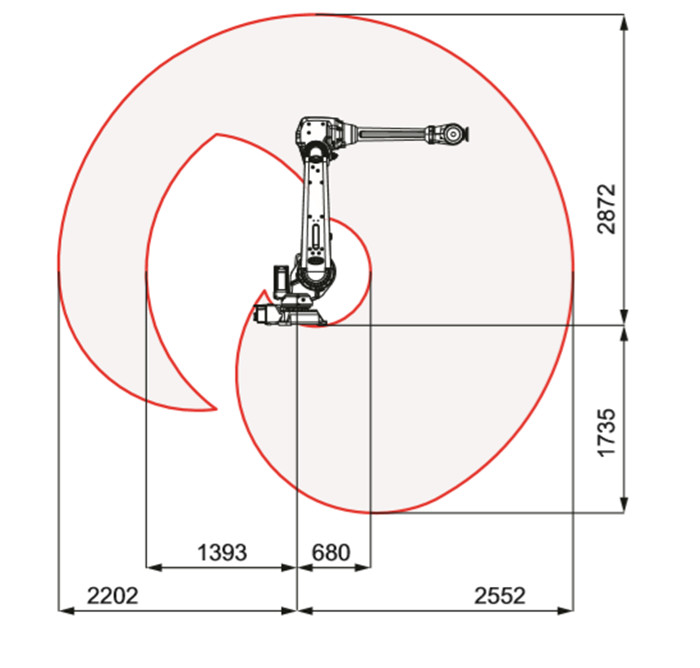

Motion range
A1 180° to -180°
A2 150° to -90°
A3 75° to -180°
A4 400° to -400°
A5 120° to -125°
A6 400° to -400°
Detailed Images

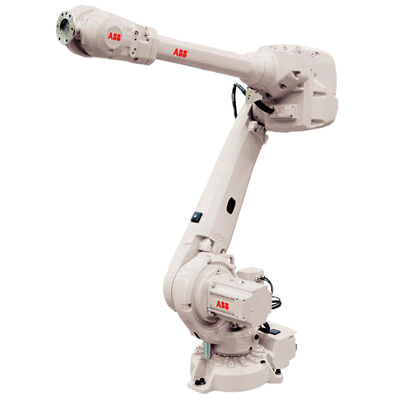

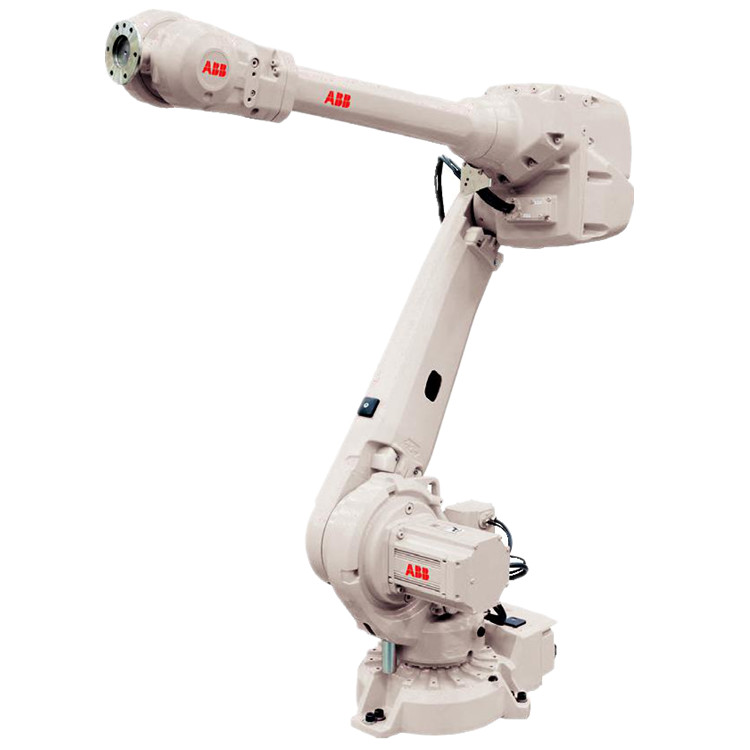

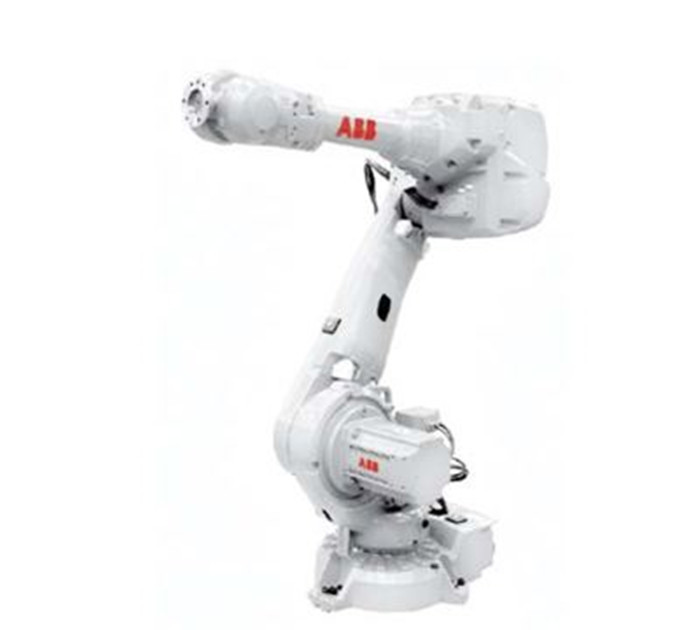

medium industrial robots IRB 4600 welding robotic machine with 6 axis  medium industrial robots IRB 4600 welding robotic machine with 6 axis  medium industrial robots IRB 4600 welding robotic machine with 6 axis

medium industrial robots IRB 4600 welding robotic machine with 6 axis
