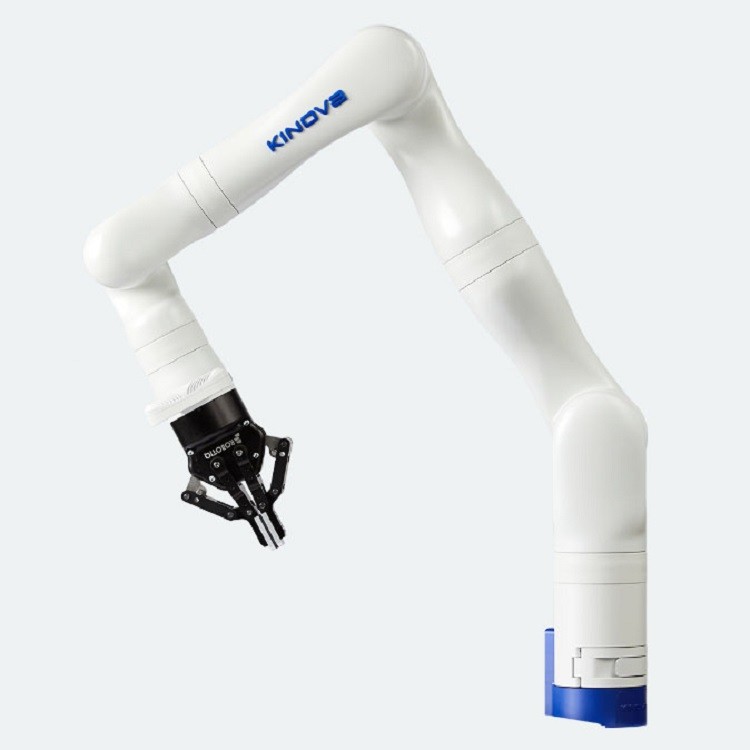

Versatile And Modular Kinova Gen3 Robots 6 Axis

Versatile And Modular Kinova Gen3 Robots 6 Axis

36W Modular Collaborative Robot Arm

902mm Reach Collaborative Robot Arm

Mobile Manipulation Collaborative Robot Arm

Place of Origin:

China

Brand Name:

KINOVA

Model Number:

Gen3

Contact Us

Request A Quote
Product Details
Payload:
Full-range Continuous 2kg,mid-range Continuous 2kg
Reach:
902mm
Power Consumption:
36W
Degrees Of Freedom:
6 DoF
Total Weight:
7.2kg
Maximum Cartesian Translation Speed:
50 Cm/s
Power Supply Voltage:
18 To 30 VDC, 24 VDC Nominal
Average Power:
36 W
Ingress Protection:
IP33
Operating Temperature:
-30 °C To 35 °C
Sensors:
Torque,position, Current, Voltage, Temperature, Accelerometer And Gyroscope
Product Description

Open technology for simple tasks or complex AI and machine learning

Regardless of your expertise, the Gen3 robotic platform enables you to test and turn your ideas into reality:

› Dynamic grasping

› Deep learning

› Mobile manipulation

› Vision-based manipulation

› Dexterous assembly

› Haptics and more...



Start working with your robot quickly using new teaching modes and preferred tools and languages Bring your projects to the next level with easy integrations and our rich Kinova® KortexTM open API software.

› ROS, MATLAB® and Simulink® packages

› Closed-loop , low-level control at 1kHz

› Advanced programming in C++ and Python environments

Versatile And Modular Kinova Gen3 Robots 6 Axis 0

› Gazebo and MoveIt simulation environments › Intuitive web app connects from any desktop or mobile device



Kinova Gen3 robots are designed for safety, efficiency and control in real-world environments

› Ultra lightweight

› Portable

› Power efficient

› Best payload-to-weight ratio



Maximum Cartesian translation speed 50 cm/s

Actuator joint range after start-up(software limitation) Infinite

Power supply voltage 18 to 30 VDC, 24 VDC nominal

Average power 36 W

Ingress protection IP33

Operating temperature -30 °C to 35 °C

Materials Carbon fiber Aluminum
