Jaka Ai 5 Cobot 6 Axis Collaborative Robot Chinese Manipulator Robot Arm

Jaka Ai 5 Cobot 6 Axis Collaborative Robot Chinese Manipulator Robot Arm

6 Axis Manipulator Robot Arm

954mm Reach Manipulator Robot Arm

5kg Payload Manipulator Robot Arm

Place of Origin:

Germany

Brand Name:

JAKA

Certification:

ce eac

Model Number:

jaka Ai 3 cobot

Contact Us

Request A Quote
Product Details
Model:
Jaka Ai 5 Cobot
Maximum Reach:
954mm
Maximum Payload:
5kg
Weight:
23 Kg
Power:
350W
Teach Pendant:
MT(PAD/Mobile)APP
Material:
Aluminum Alloy
Product Description

JAKA Ai 5 cobot 6 axis collaborative robot Chinese manipulator robot arm



Main Specifications
Maximum reach:954 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc

Power consumption:350W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description
Product Name JAKA Ai 5 cobot 6 axis collaborative robot Chinese manipulator robot arm
Application JAKA Ai 5 cobot 6 axis collaborative robot Chinese manipulator robot arm
Model JAKA Ai 5 cobot
Robot Arm
Maximum reach 954mm
Maximum payload 5 kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Certificate CR, CE, 15066
Temperature range 0-50℃
Weight 23 kg
Protection rating IP54
Standard CE, TUV,KSc
Power consumption 350W
Material Aluminum alloy
Ambient temperature 0-50°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±270°
A2 -85°,+265°
A3 ±175°
A4 -85°,+265°
A5 ±270°
A6 ±270°
Controller
Size 410mm*307mm*235mm
Weight 12Kg
Cable length 6m
Colour silver and red
Protocol Ethernet,Modbus-RTU/TCP
Power 100-240V/AC,50-60HZ
Protection rating IP44
I/O port 16 in/16 out
Teach pendant MT(PAD/Mobile)APP
Size 355mm*235mm*54mm
Weight 1.8Kg
Screen 12 inch Resistive LCD touch screen
Cable length 6m
Protection rating IP54
Colour silver and red

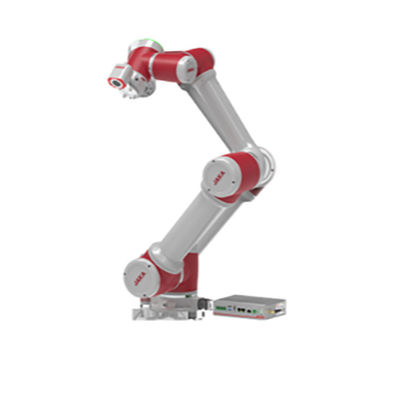

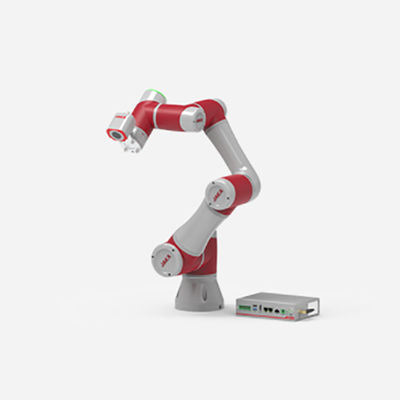

Detailed Images

JAKA Ai 5 cobot 6 axis collaborative robot  Chinese manipulator robot armJAKA Ai 5 cobot 6 axis collaborative robot  Chinese manipulator robot arm

JAKA Ai 5 cobot 6 axis collaborative robot  Chinese manipulator robot armJAKA Ai 5 cobot 6 axis collaborative robot  Chinese manipulator robot armJAKA Ai 5 cobot 6 axis collaborative robot  Chinese manipulator robot arm

JAKA Ai 5 cobot 6 axis collaborative robot  Chinese manipulator robot arm
