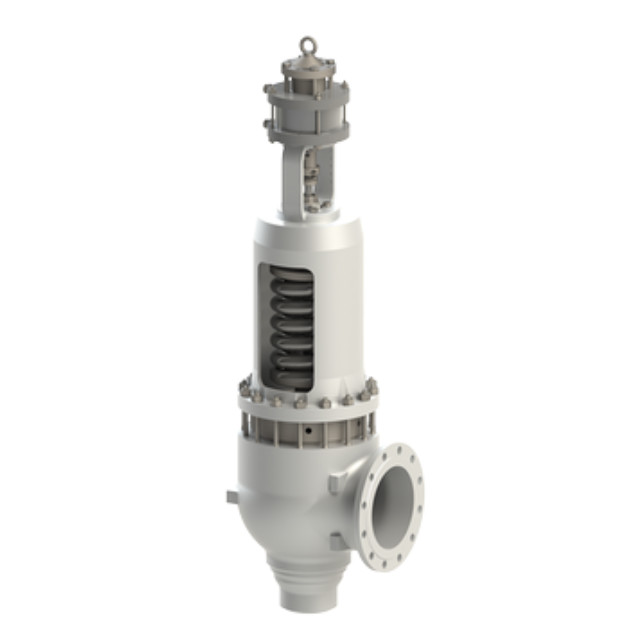

Boiler Protection With Welding End High Pressure Steam Safety Valve

Basic Information
Place of Origin: China
Brand Name: Sempell
Model Number: SOH
Minimum Order Quantity: 1 set
Packaging Details: WOODEN BOX
Delivery Time: 30-60 WORK DAYS
Payment Terms: T/T, L/C, D/A, Western Union
Supply Ability: 10 SETS PER MONTH
Size Inlet: DN 40 - DN 250 Temperature Range: Up To +700 °C / +1300 °F
Set Pressure: 10 - 320 Bar Orifice Diameter: 17.5 Mm-160 Mm
Design: Open Bonnet, Balanced Piston, Pneumatically Assisted Accessories: Position Indicator
Body Material: 1.0460/SA105, 1.0619/SA216 WCB Body /Material: 1.7335/SA182 F12 ,1.7357/SA217 WC6
Body Materials: 1.7380/SA18 F22,1.7379/SA217 WC9 Body - Material: 1.4903/SA182 F91,1.4901/SA182 F92
High Light:

DN40 Electric Control Valve

,

160mm Orifice Electric Control Valve

,

SA216 WCB Electric Control Valve

SOH Sempell Model Design For Boiler ProtectionWith Welding End High Pressure Steam Safety Valve

High pressure safety valve for boiler protection with welding end or flanged connections



Features



High tightness up to set pressure due to supplementary load
Smooth operation (no forces by popping)
Rigid body design
Self-aligning spring assembly
Low friction, spring compression
Mechanical lift stop ensures functional stability
Locking for hydrostatic test without additional parts
High allowable back pressure
