Name: Samson Type 4763 Electro Pneumatic Positioner With Varies Valves
Brand: Samson
SKU: 4763
Rating: 4.7 (104 reviews)

Home > products > Control Valve Positioner >

Samson Type 4763 Electro Pneumatic Positioner With Varies Valves

Electro Pneumatic Control Valve Positioner

ATEX Control Valve Positioner

IP54 Control Valve Positioner

Place of Origin:

China

Brand Name:

Samson

Certification:

ATEX, CUTR, PED

Model Number:

4763

Request A Quote

Product Details

Controlled Variable (travel Range):

7.5 To 60 Mm, With Lever Extension: 7.5 To 90 Mm

Signal Pressure Pst (output):

Max. 0 To 6.0 Bar (0 To 90 Psi)

Characteristic:

Linear Characteristic

Hysteresis:

< 0.5 %

Direction Of Action:

Reversible

Sensitivity:

< 0.1 %

Proportional Band Xp:

1 To 3.0 % With Spring 1 1 To 2.0 % With Spring 2

Air Consumption In Steady State:

With 6 Bar Supply Air: 0.5 Mn³/h

Oil Content:

Class 3 Pressure Dew Point: Class 3

Degree Of Protection:

IP 54 Venting Over Check Valve (1790-7408): IP 65

Masoneilan SVI3 Valve Positioner For Pneumatic Control Ball Valve Customized ODM With Burkert Valve

Get Best Price

Chinese High Performance Control Valve With 3730-3 Positioner Enhance Your Control Valve System

Get Best Price

Light Yellow Samson Positioner 3730-3 And ASCO Solevoid Valve For Control Ball Valve And Pneumatic Actuator In Stock

Get Best Price

Upgrade Your Control Valve with Our Advanced Control Valve Positioner Spirax Sarco SP7

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

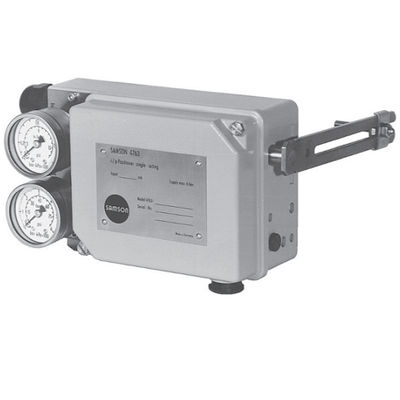

Samson Type 4763 Electro Pneumatic Valve Positioners With Varies Valves

Product Description

Specification

item	value
Warranty	1 years
Place of Origin	China
	Shanghai
Brand Name	Samson
Model Number	Type 4763
Controlled variable (travel range)	7.5 to 60 mm, with lever extension: 7.5 to 90 mm
Signal pressure pst (output)	Max. 0 to 6.0 bar (0 to 90 psi)
Characteristic	Linear characteristic
Hysteresis	< 0.5 %
Direction of action	Reversible
Sensitivity	< 0.1 %
Proportional band Xp	1 to 3.0 % with spring 1 1 to 2.0 % with spring 2
Air consumption in steady state	With 6 bar supply air: 0.5 mn³/h
Oil content	Class 3 Pressure dew point: Class 3
Degree of protection	IP 54 Venting over check valve (1790-7408): IP 65

Packing & Delivery

Samson type 4763 Electropneumatic valve positioners packed with one fumigation wooden box
