6 Axis Robot Arm GP12 Payload 12kg Reach 1440mm For Material Handing Fast And Accurate Matecurate Material Handing Robot

1set
MOQ
6 Axis Robot Arm GP12 Payload 12kg Reach 1440mm For Material Handing Fast And Accurate Matecurate Material Handing Robot
Features Gallery Product Description Request A Quote
Features
Specifications

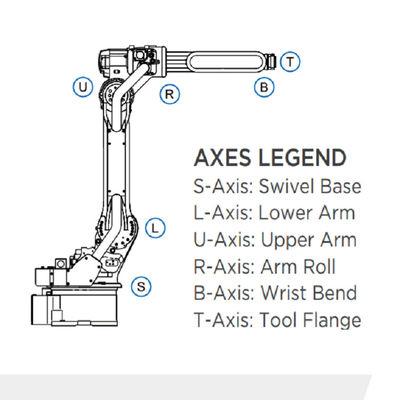

Controlled Axes: 6
Contoller: YRC1000/YRC1000micro
Power Rating: 1.5 KVA
Max. Payload: 12kg
Repeatability: +0.06mm

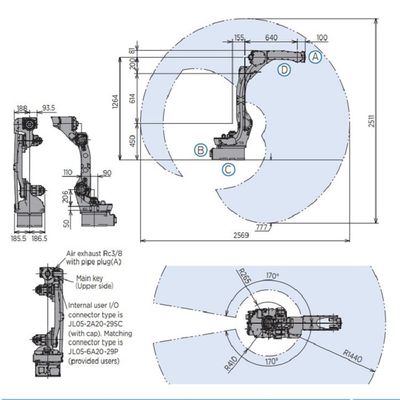

Horizontal Reach: 1440mm
Vertical Reach: 0 To +45℃
Weight: 130kg

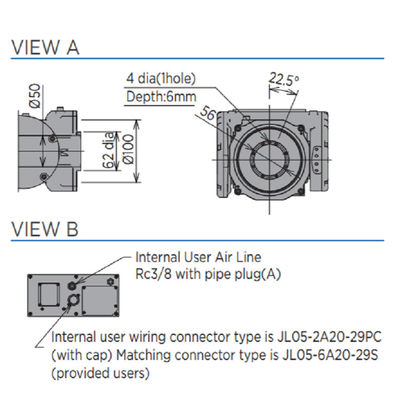

Lnternal User Air Line: (1)3/8" Connection
Power Requirements: 380-480VAC
Applications: Assembly,Material Handling,Packaging

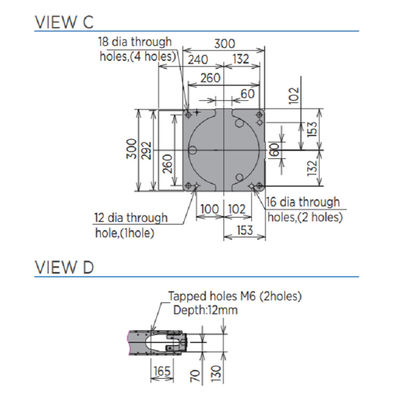

Mounting Options: Floor,Wall,Tilt Or Ceiling
Highlight:

Payload 12kg Yaskawa Robot Arm

,

Reach 1440mm Yaskawa Robot Arm

,

480VAC Yaskawa Robot Arm

Basic Infomation
Place of Origin: China
Brand Name: YASKAWA
Model Number: GP12
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Delivery Time: 30-60 Work days
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 50 SETS PER MONTH
Product Description

6 Axis Robot arm GP12 Payload 12kg Reach 1440mm for Material Handing Fast and Accurate Matecurate Material Handing Robot



KEY BENEFITS

Highest payload, speeds and wrist allowable moment in its class
Space-efficient design
Engineered for easy installation,operation and maintenance



· lncrease your productivity with the fast and efficient GP12 robot.

·All axis speeds have been increased by up to 15%- surpassing other robots in its class.

·Reduced interference design allows close proximity placement of robots.

·Maximum reduction of acceleration/deceleration times for all robot positions.
·Hollow arm structure eliminates cable interference.

·Highest wrist allowable moment for accurate and repeatable handling.

·Higher payload allows wider range of tooling integration such as double gripper for multi-handling operations.
·Single power and control cable reduces wiring time and increases work efficiency.

·New robot harness design for improved diagnostics and maintenance.
·Home position data can be saved without battery connection for easy maintenance.
·ldeal for high-volume assembly,handling and packaging applications.
·NSF-H1 certified food-grade lubricant option available for food or consumer product packaging environments.

·The GP12 has an lP67-rated wrist and an lP54 body standard.An XP(eXtra Protection) package that increases the body protection rating to lP65 is available.
·The GP12 can be floor-,wall-, tilt- or ceiling-mounted.Brakes are included on all axes.
·The GP12 robot is available with either the standard teach pendant or the Smart Pendant.
