| Place of Origin: | China |
|---|---|
| Brand Name: | YASKAWA |
| Model Number: | GP50 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | WOODEN BOX |
| Delivery Time: | 30-60 Work days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Controlled Axes: | 6 | Contoller: | YRC1000/YRC1000micro |
|---|---|---|---|
| Maximum Payload: | 50kg | Repeatability: | +0.03mm |

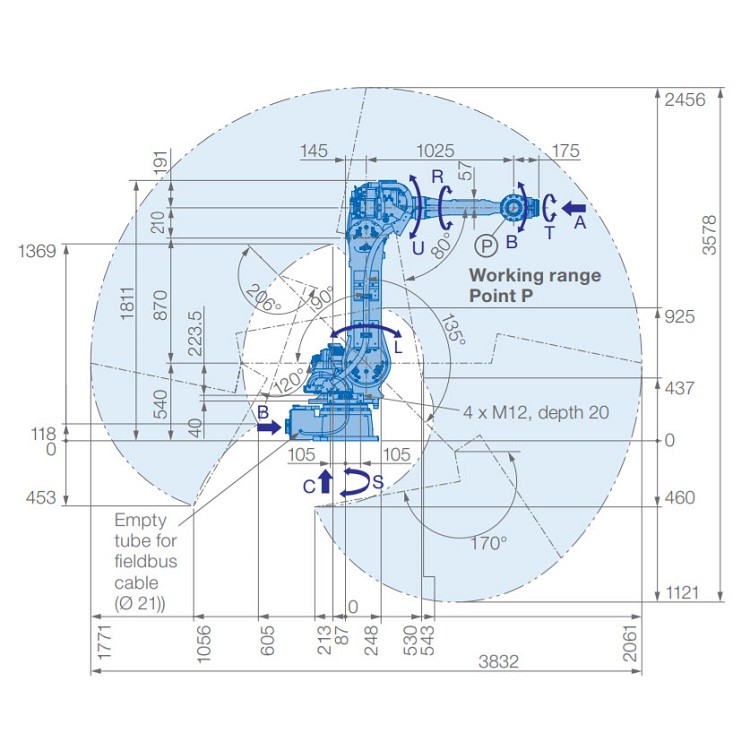

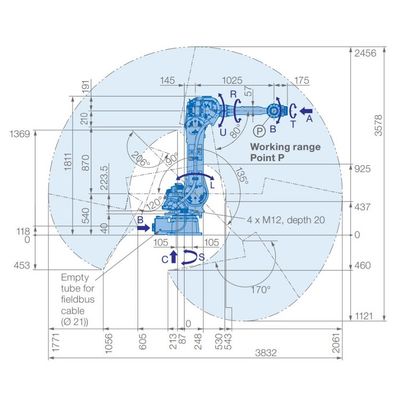

| Max. Working Range R: | 2061mm | Temperature: | 0 To +45℃ |
| Weight: | 570kg | Humidity: | 20 - 80 |
| Power Supply, Average: | 4.0kVA | Mounting Options: | Floor, Ceiling, Wall, Tilt |
| Mounting Options: | Floor,Wall,Tilt Or Ceiling | ||
| High Light: | 2061mm Reach Yaskawa Robot Arm,50kg Payload Yaskawa Robot Arm,4.0kVA Yaskawa Robot Arm |
||
6 Axis Robot arm GP50 Payload 50kg Reach 2061mm for Material Handing Fast and Accurate Material Handing Robotot

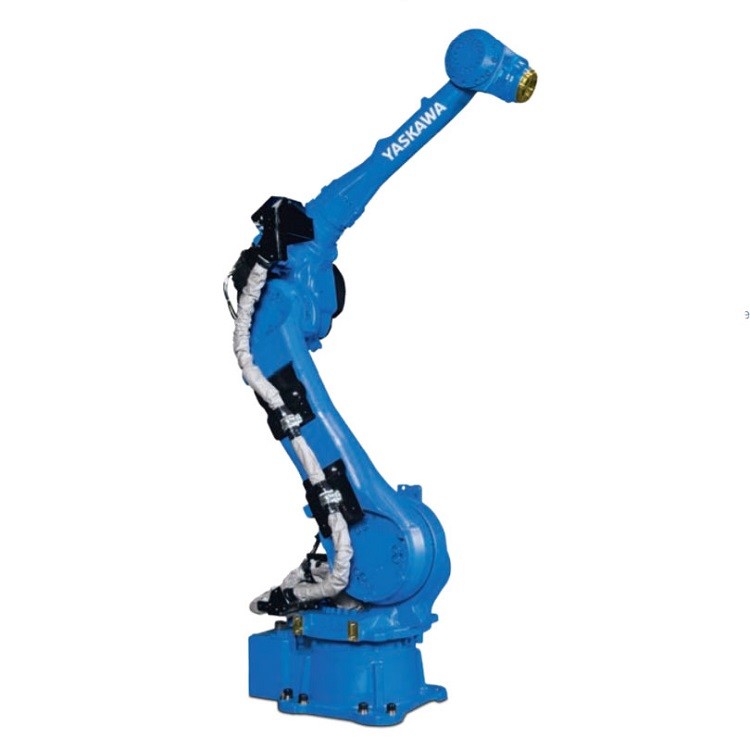

The MOTOMAN GP50 is a versatile, high speed 6-axis robot offering superior performance in material handling, machine tending, processing and dispensing applications. Due to its compact design, the GP50 can be placed close to machines for loading and unloading of parts.
KEY BENEFITS
• Fast, flexible and reliable
• Ideal for a variety of applications, multi-purpose robot
• Robot with sleek design that requires minimal installation space
• 50 kg payload

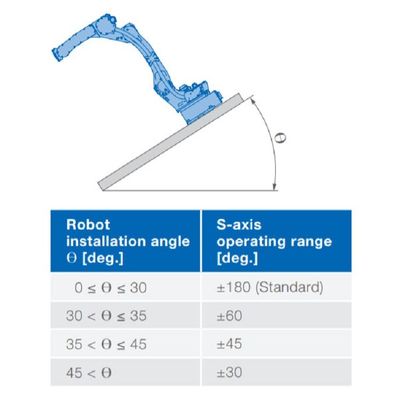

Protection class version YR-1-06VX50-A00 Standard: Main axes (S, L, U) IP54, wrist IP67 Protection class version YR-1-06VX50-C00: Main axes (S, L, U) IP65, wrist IP67 Please notice wall mounting option: ±30° S-axis limit Please notice ceiling mounting option: Please notice working range of B-axis Please notice tilted robot: 0°–90° limitation of S-axis, details on request
