6 Axis Robot Arm GP110 Payload 110kg Reach 2236mm For Material Handing

Basic Information
Place of Origin: China
Brand Name: YASKAWA
Model Number: GP110
Minimum Order Quantity: 1set
Packaging Details: WOODEN BOX
Delivery Time: 30-60 Work days
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 50 SETS PER MONTH
Controlled Axes: 6 Contoller: YRC1000
Maximum Payload: 110kg Repeatability: ±0.03mm

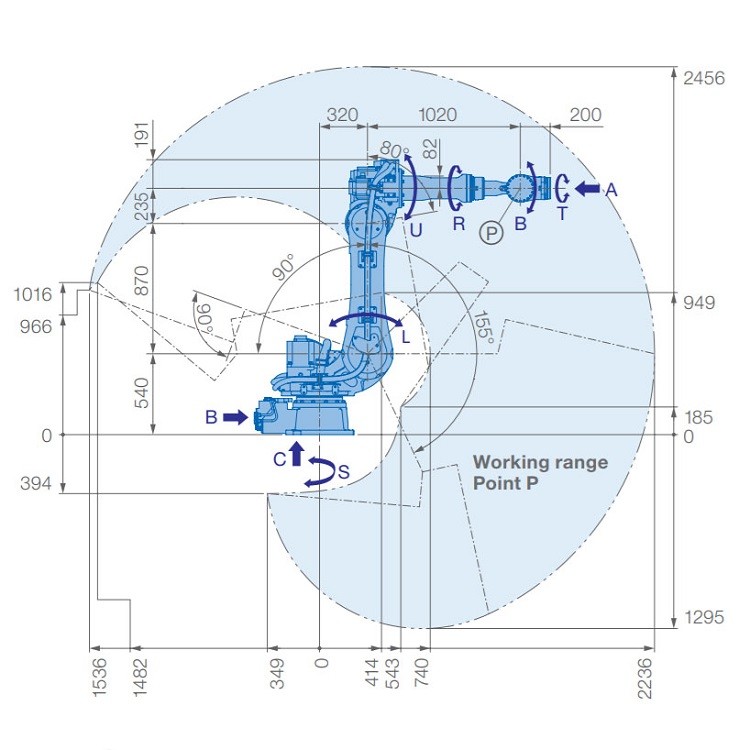

Max. Working Range R: 2236mm Temperature: 0 To +45℃
Weight: 660kg Humidity: 20 - 80%
Power Supply, Average: 5.0kVA Mounting Option: Floor
High Light:

110kg Payload Yaskawa Robot Arm

,

Reach 2236mm Yaskawa Robot Arm

,

5.0kVA 6 Axis Robot Arm

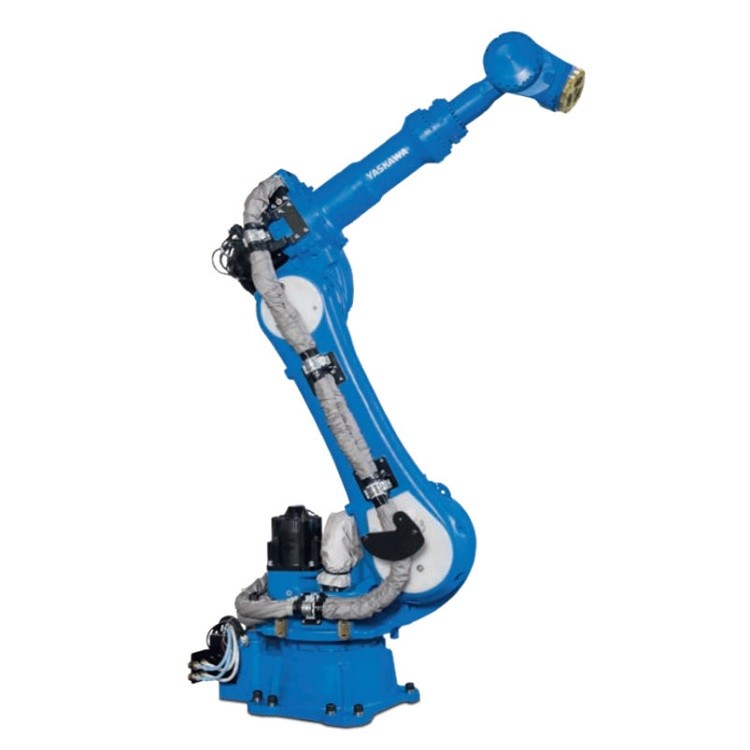

6 Axis Robot arm GP110 Payload 110kg Reach 2236mm for Material Handing Fast and Accurate Material Handing Robot



The 6-axis MOTOMAN GP110 is a versatile, high speed robot offering superior performance for a variety of applications, for example material handling, machine and press tending. Despite of providing a wide motion range and high payload of 110 kg, the MOTOMAN GP110 has a streamlined design, which allows extremely close positioning of several robots. Also the slim cable inlet reduces the robots width, therefore valuable floor space can be saved. The MOTOMAN GP110 is available with the PLd Category 3 Functional Safety Unit (FSU).



KEY BENEFITS

• Fast and flexible

• Wide motion range: 2236 mm

• High payload: 110 kg

• Compact design

• Slim cable inlet

• Enhanced safety functions

Protection class version YR-1-06VX110-A00 Standard: Main axes (S, L, U) IP54, wrist IP67 Protection class version YR-1-06VX110-C00: Main axes (S, L, U) IP65, wrist IP67
