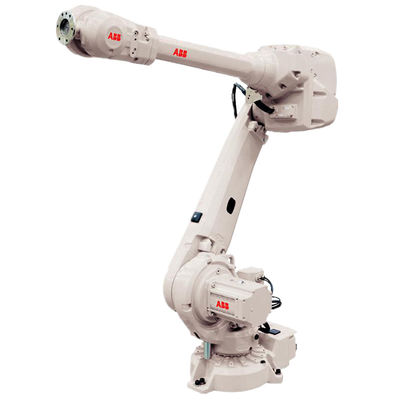

6 Axis Milling Robot IRB4600 45kg Payload Reach 2050mm Highly Productive Robotic Arm Milling

Basic Information
Place of Origin: China
Brand Name: ABB
Model Number: IRB4600
Minimum Order Quantity: 1 set
Packaging Details: 6 Axis Milling Robot IRB4600 45kg Payload Reach 2050mm Highly Productive Robotic Arm Milling with robotiq gripper packing with fumigation wooden frame, Controller and other parts packing with brown box,
Delivery Time: 15 working days after deposit
Payment Terms: T/T, L/C, Western Union, D/A, D/P
Supply Ability: 50 sets /Month
Armload: 20kg Number Of Axes: 6
Protection: Standard IP67, As Option Foundry Plus 2 Mounting: Floor, Shelf, Inverted Or Tilted
Controller: IRC5 Single Cabinet Position Repeatability: 0.05 Mm
Path Repeatability: 0.13 Mm Supply Voltage: 200-600 V, 50-60 Hz
Height: 1727 Mm Robot Base: 512 X 676 Mm
High Light:

Milling ABB Robot Arm

,

Reach 2050mm ABB Robot Arm

,

IRB4600 ABB Robot Arm

6 Axis Milling Robot IRB4600 45kg Payload Reach 2050mm Highly Productive Robotic Arm Milling

Robot version Reach (m)

Payload

(kg)

Armload

(kg)

IRB 4600-45/2.05 2.05 45 20
Number of axes 6
Protection Standard IP67, as option Foundry Plus 2
Mounting Floor, shelf, inverted or tilted
Controller IRC5 Single cabinet



Performance (according to ISO 9283)

IRB 4600-45/2.05
Path repeatability* 0.13 mm
Position repeatability 0.05 mm



Technical information

Electrical Connections
Supply voltage 200-600 V, 50/60 Hz
Physical
Robot base 512 x 676 mm
Robot height 1727 mm
Robot weight 425 kg



Main applications

• Arc Welding

• Assembly

• Material Handling

• Machine Tending

• Material Removal

• Cleaning/Spraying

• Dispensing

• Packing

• Laser Cutting

• Laser Welding



Company Information

Product Description

IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality - and that means improved productivity.



Shortest cycle times

Thanks to the new compact and optimized design resulting in a low weight, the IRB 4600 can cut the cycle times of the industry benchmark by up to 25%. The maximum acceleration achievable is highest in its class, together with high maximum speeds. With the high acceleration it is possible to use to avoid obstacles or to follow the path. The benefit is increased production capacity and higher productivity.



Ultra-wide working range

You can position the IRB 4600 in the most favourable way with regard to reach, cycle time and auxiliary equipment. Flexible mounting with floor, tilted, semishelf or inverted mounting is very useful when you are simulating the best position for your application.



Compactness

The small footprint, the slim swing base radius around axis 1, the fine elbow behind axis 3, the small lower and upper arms, and the compact wrist all contribute to the most compact robot in its class. With the IRB 4600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines, which also increases your output and your productivity.



Best protection available

ABB has the most comprehensive protection program on the market and it will be even further enhanced with the IRB 4600. Foundry Plus includes IP 67, resistant paint, rustprotected mounting flange and protection for molten metal spits on non-moving cables on the rear of the robot and extra protection plates over the floor cable connections on the foot.



Optimize and go sharp

To get the IRB 4600 ready for the targeted applications you have access to high performing workpiece positioners, track motions, and the motor and gear unit range.

To simulate your production cell to find the optimal position for the robot and program it offline, RobotStudio is available on subscription together with PowerPacs for several applications. Learn more about how to use the IRB 4600 in your applications and environments - watch simulations on several applications at www.abb.com/robotics.



1
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance



4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
