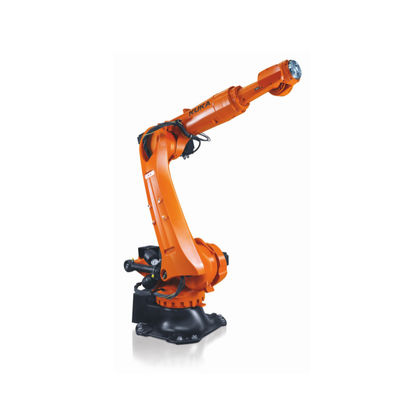

Milling Robot KUKA KR 210 R2700-2 Payload 275Kg Reach 2701mm KR C5 KR C4 Controller Robotic Arm Milling

Basic Information
Place of Origin: China
Brand Name: KUKA
Model Number: KUKA KR 210 R2700-2
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: 30-60 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 SETS PER MONTH
Maximum Reach: 2701 Mm Maximum Payload: 275 Kg
Rated Payload: 210 Kg Pose Repeatability (ISO 9283): ± 0.05 Mm
Number Of Axes: 6 Mounting Position: Floor
Footprint: 754 Mm X 754 Mm Weight: Approx. 1077 Kg
Ambient Temperature During Operation: 0 °C To 55 °C (273 K To 328 K) Controller: KR C5; KR C4
High Light:

Reach 2701mm Kuka Robot Arm

,

Kuka Milling Robot Arm

,

Payload 275Kg Milling Robot Arm

Milling Robot KUKA KR 210 R2700-2 Payload 275 kg Reach 2701 mm KR C5; KR C4 Controller Robotic Arm Milling

The KR 210 R2700-2 is designed for a rated payload of 210 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used.



Axis data

                          Motion range
A1 ±185 °
A2 -140 ° / -5 °
A3 -120 ° / 168 °
A4 ±350 °
A5 ±125 °
A6 ±350 °
                              Speed with rated payload
A1 120 °/s
A2 115 °/s
A3 112 °/s
A4 179 °/s
A5 172 °/s
A6 220 °/s



Operating conditions

Ambient temperature during operation   0 °C to 55 °C (273 K to 328 K)
