Features

Specifications

Model: HH050

Structure: Articulated

Degree Of Freedom: 6

Drive Method: AC Servo

Payload: 50 Kg

Repeatability: ±0.06 Mm

Ambient Temperature: 0~45℃

Body Weight: 645 Kg

Installation Method: Floor/Wall/Ceiling

Application: Material Handling, Sealing, Press Handling

Highlight:

Reach 2239mm Robot Arm

Payload 50kg Robot Arm

Milling 6 Axis Robot Arm

Basic Infomation

Place of Origin: China

Brand Name: Hyundai Robotic

Model Number: HH050

Payment & Shipping Terms

Packaging Details: WOODEN BOX

Delivery Time: 30-60 work days

Payment Terms: Western Union, T/T, L/C, D/A

Supply Ability: 10 sets per month

Gallery

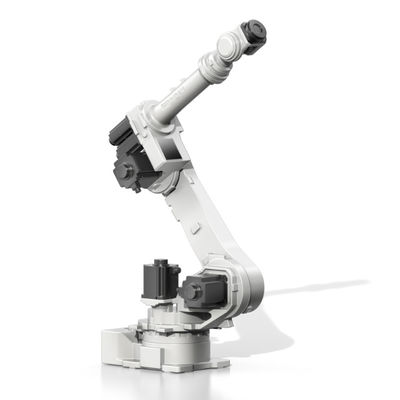

Robot Arm Milling Machine 6 Axis Payload 50kg Reach 2239mm HH050 With Hi5a-S60 Controller Milling Robot

Product Description

Robot Arm Milling Machine 6 Axis Payload 50kg Reach 2239mm HH050 with Hi5a-S60 Controller Milling Robot

Name: Robot Arm Milling Machine 6 Axis Payload 50kg Reach 2239mm HH050 With Hi5a-S60 Controller Milling Robot
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: HH050
Price: 75,050.00 USD
Availability: InStock

Features
High Speed, High accuracy, Large working envelope, High reliability & flexibility

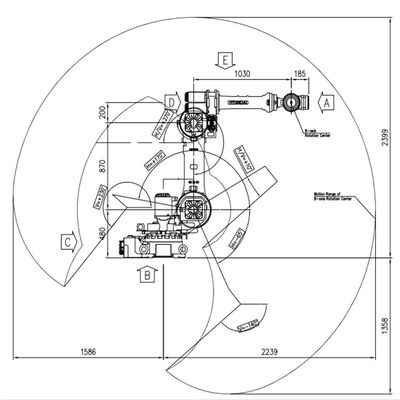

Max.MotionRange

Main Axes

Wrist Axes

Swivel

Horizontal

Vertical

B(Bending)

R1(Twisting)

±180 °

+170 ° ~ -65 °

+180 ° ~ -80 °

±360 °

±125 °

±360 °

Max.Speed

Main Axes

Wrist Axes

Swivel

Horizontal

Vertical

B(Bending)

R1(Twisting)

175 °/s

250 °/s

350 °/s

AllowableTorque

Wrist Axes

B(Bending)

R1(Twisting)

22 kgf.m

15 kgf.m
