Name: R-2000iC/165F Payload 165kg Reach 2655mm Painting Robot
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: R-2000iC/165F
Price: 75,050.00 USD
Availability: InStock

Features Gallery Product Description Ratings & Review Request A Quote

Features

Specifications

Max. Load Capacity At Wrist: 165kg

Max. Reach: 2655 Mm

Controlled Axes: 6

Repeatability: ± 0.05*mm

Mechanical Weight: 1090kg

J4 Moment/ Inertia: 940/120Nm/kg㎡

206/28Nm/kg㎡: 490/100Nm/kg㎡

Robot Footprint: 771 X 610mm

Mounting Position: Floor

Controller: R-30iB Plus

Highlight:

Payload 165kg Fanuc Robot Arm

Reach 2655mm Fanuc Robot Arm

Painting Fanuc Robot Arm

Basic Infomation

Place of Origin: China

Brand Name: FANUC

Model Number: R-2000iC/165F

Payment & Shipping Terms

Packaging Details: WOODEN BOX

Delivery Time: 30-60 WORK DAYS

Payment Terms: T/T, L/C, D/A, D/P, Western Union

Supply Ability: 10 SETS PER MONTH

Gallery

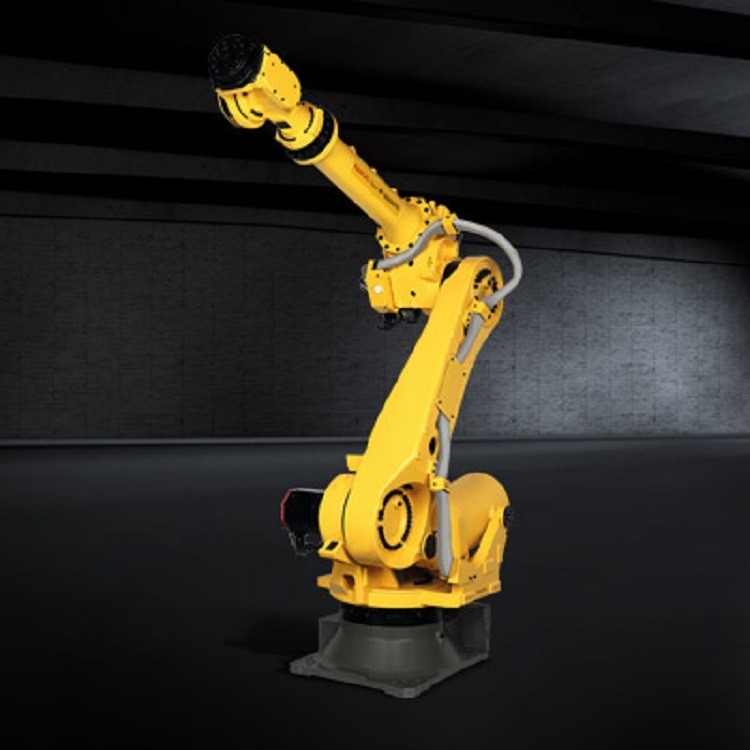

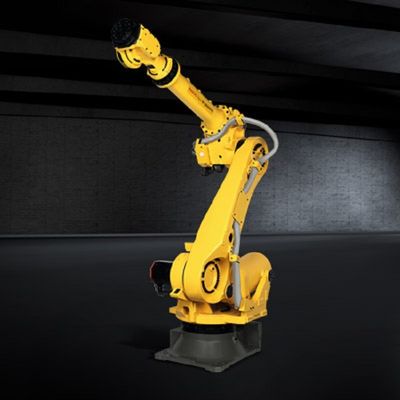

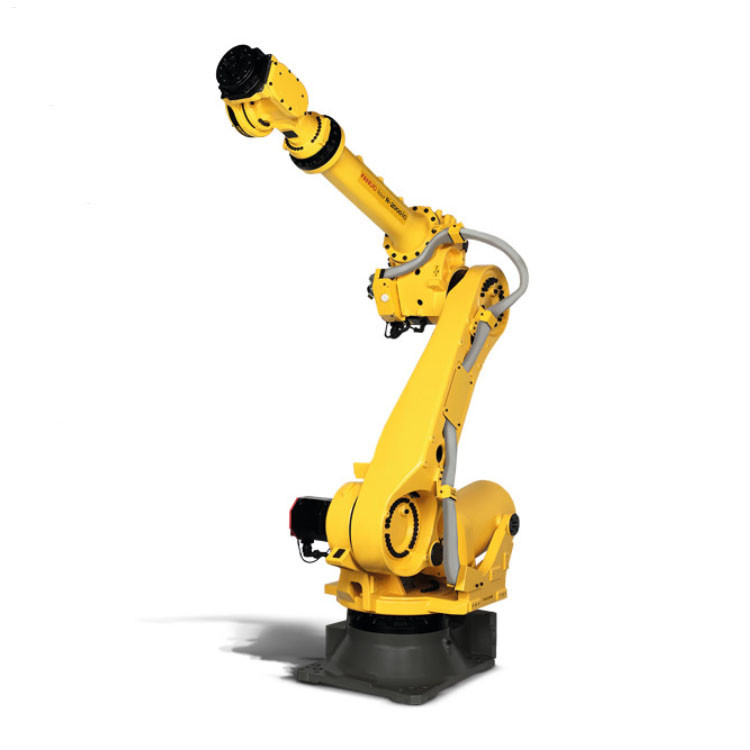

R-2000iC/165F Payload 165kg Reach 2655mm Painting Robot

Product Description

R-2000iC/165F Payload 165kg Reach 2655mm Painting Robot

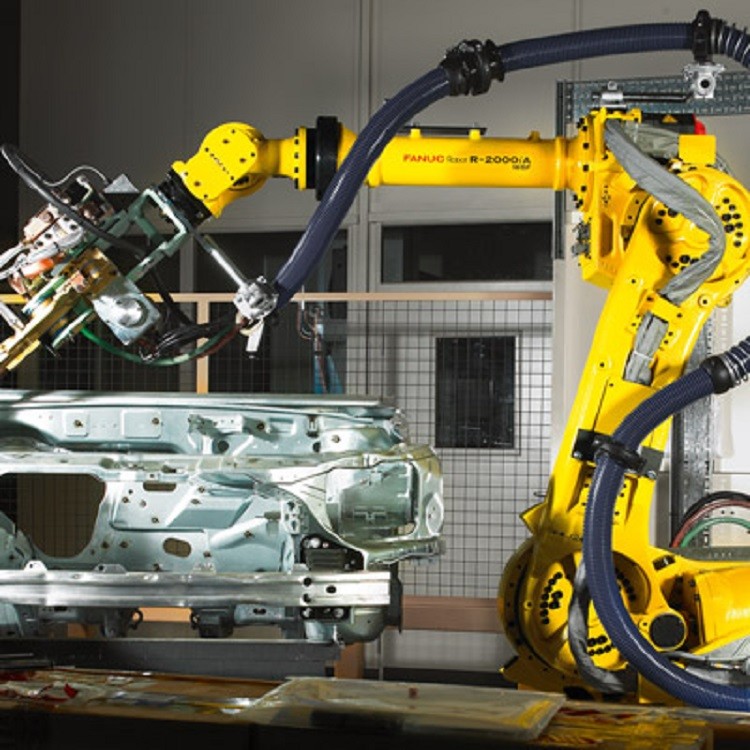

The R-2000 range's all-round model, the flexibility offered by this 6 axis high-payload model sets new standards in almost every industry. Equipped with a thin wrist and capable of delivering excellent cycle times, it makes a nimble spot welding robot on automotive and similar applications. It has also been designed to maximise use of space and enable it to work in close proximity to other robots.

Product Description

Specification

item	value
Place of Origin	China
	Shanghai
Brand Name	FANUC
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC
Warranty	1 Year
	Video technical support, Online support
After Warranty Service	Online support
Local Service Location	Egypt, Canada, France, Pakistan, Thailand, UAE, South Africa
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location	Indonesia, Pakistan, Spain, Argentina, Algeria, Sri Lanka, Bangladesh, Nigeria, Morocco
Max. load capacity at wrist	165 kg
Max. reach	2655 mm
Controlled axes	6
Repeatability	± 0.05*mm
Mechanical weight	1090kg
J4 Moment/ Inertia	940/120Nm/kg㎡
J6 Moment/ Inertia	490/100Nm/kg㎡
Robot footprint	771 X 610mm
Mounting position	Floor
Controller	R-30iB Plus

Company Profile

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot,Control Valve

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese

Production Name	Industry Robot
Power supply	20 ~ 25V
Protection rating	IP54
Weight	1.25kg

FAQ

Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).

Q.What is Your Payment Term?

A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.

Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.

Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.

Q:What Kind of Trade Terms Can You Do?

A:EX-WORKS,FOB,CFR,CIF,etc.
