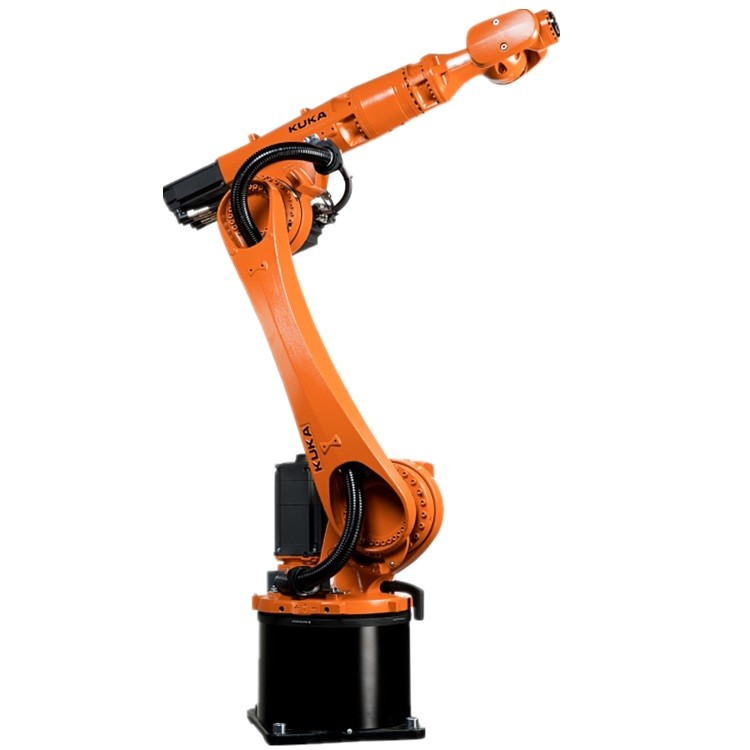

Name: KR16 R1610-2 Payload 20Kg Reach 1612mm Welding Robot Arm
Brand: KUKA
SKU: KR 16 R1610-2
Rating: 4.6 (117 reviews)

Home > products > Kuka Robot Arm >

KR16 R1610-2 Payload 20Kg Reach 1612mm Welding Robot Arm

Reach 1612mm Welding Robot Arm

Payload 20Kg Welding Robot Arm

KR 16 R1610-2

Place of Origin:

China

Brand Name:

KUKA

Model Number:

KR 16 R1610-2

Request A Quote

Product Details

Maximum Reach:

1612 Mm

Maximum Payload:

20 Kg

Rated Payload:

16 Kg

Pose Repeatability (ISO 9283):

± 0.04mm

Number Of Axes:

Mounting Position:

Floor; Ceiling; Wall; Desired Angle

Footprint:

430.5 Mm X 370 Mm

Weight:

Approx. 255 Kg

Ambient Temperature During Operation:

5 °C To 55 °C (278 K To 328 K)

Controller:

KR C4

Industrial 6 Axis Robotic Arm Painting Yaskawa MPX2600 With CNGBS Gun Cleaning Station

Get Best Price

7 Axis Kuka Robotic Arm LBR Iiwa 7 R800 With CNGBS Robot Gripper For Handling As Collaborative Robots

Get Best Price

VL Series Vertical Machining Center V850L Used In Various Production Sites As Machine Tools Accessories

Get Best Price

KR 70 R2100 Industrial KUKA Robot 6 Axis Manipulator For Other Welding Machine

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

KR16 R1610-2 Payload 20 kg Reach 1612 mm Welding Robot Arm

The KR 16 R1610-2 is designed for a rated payload of 16 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used.

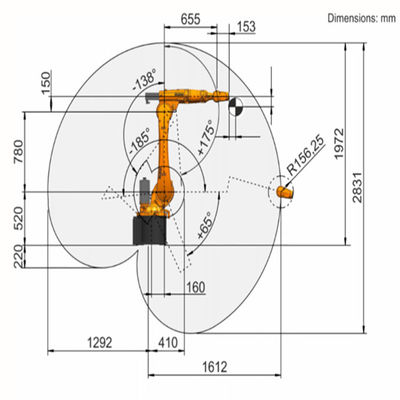

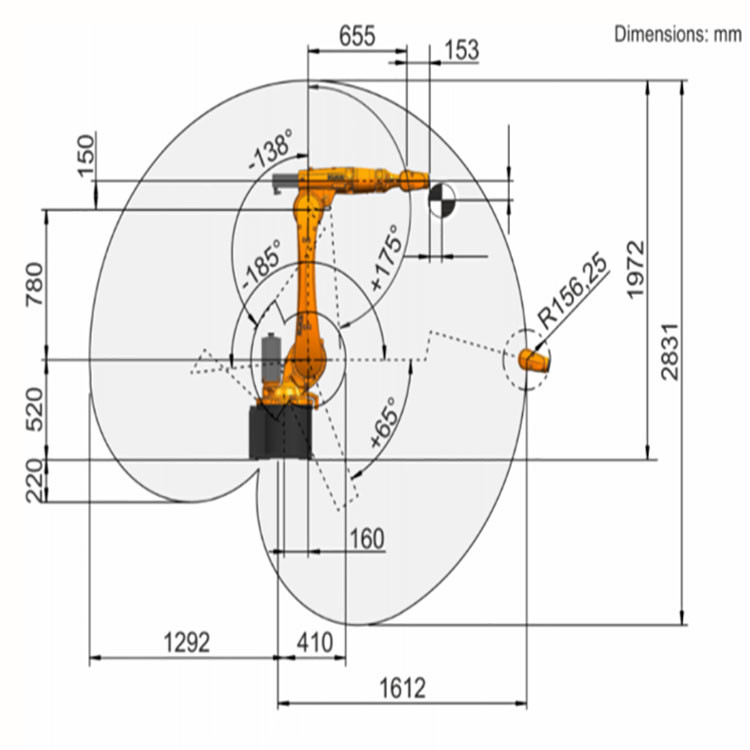

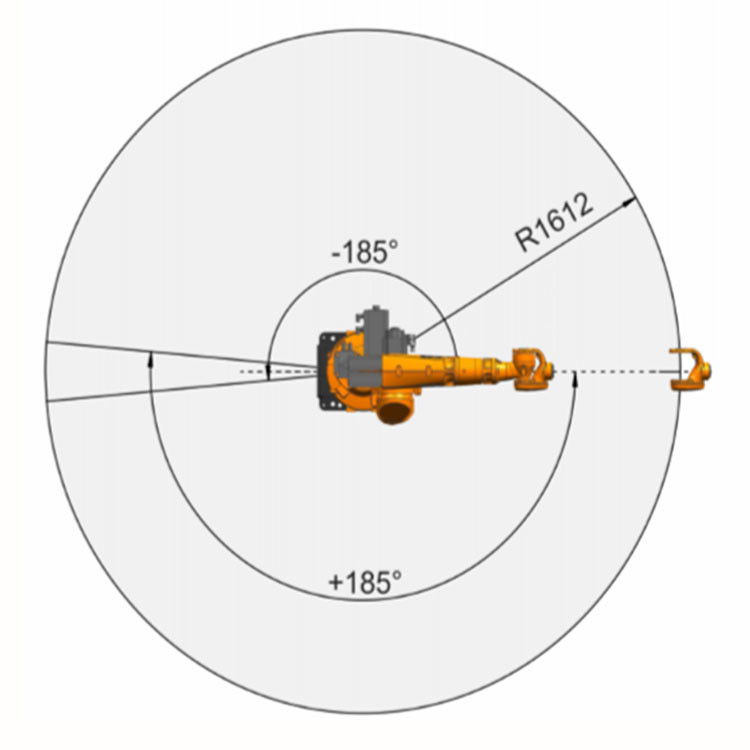

Axis data

Motion range
A1	±185 °
A2	-185 ° / 65 °
A3	-138 ° / 175 °
A4	±350 °
A5	±130 °
A6	±350 °
Speed with rated payload
A1	200 °/s
A2	175 °/s
A3	190 °/s
A4	430 °/s
A5	430 °/s
A6	630 °/s

Product Description

Specification

item	value
Place of Origin	China
	Shanghai
Brand Name	KUKA
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC
Warranty	1 Year
	Video technical support, Online support
After Warranty Service	Online support
Local Service Location	Egypt, France, Germany, Pakistan, Thailand, Malaysia, Chile, Tajikistan
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location	Italy, Saudi Arabia, India, Thailand, Kenya, Romania, Kyrgyzstan
Maximum reach	1612 mm
Maximum payload	20 kg
Rated payload	16 kg
Pose repeatability (ISO 9283)	± 0.04 mm
Number of axes	6
Mounting position	Floor; Ceiling; Wall; Desired angle
Footprint	430.5 mm x 370 mm
Weight	approx. 255 kg
Ambient temperature during operation	5 °C to 55 °C (278 K to 328 K)
Controller	KR C4

Packing & Delivery

Welding Robot KR16 R1610-2 Payload 20 kg Reach 1612 mm With KR C4 Controller 6 Axis Welding Robot Arm Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)
