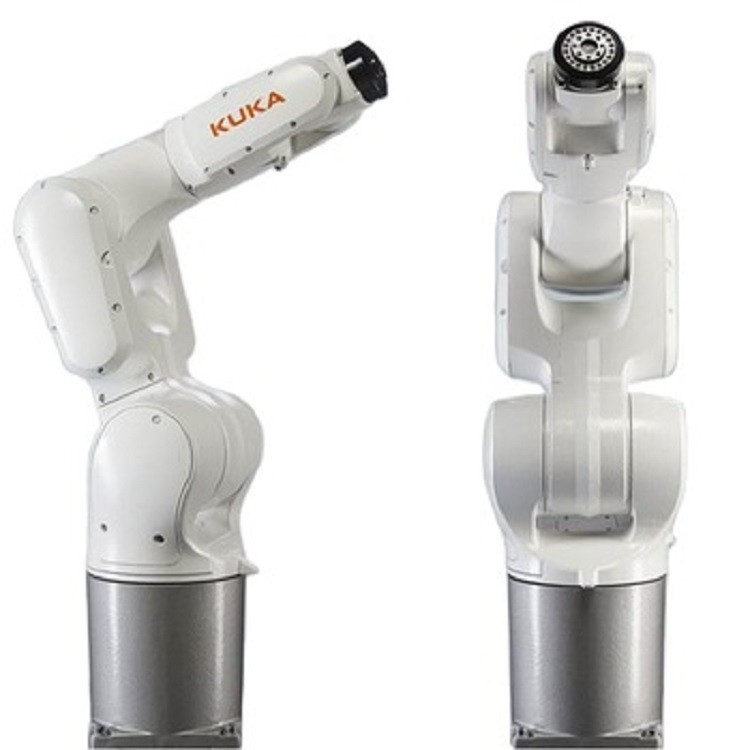

Name: KR 6 R900-2 Payload 6.7kg Reach 901mm 6 Axis Robotic Welding
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: KR 6 R900-2
Price: 75,050.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Maximum Reach: 901 Mm

Maximum Payload: 6.7 Kg

Teach Pendant: KUKA SmartPAD

Pose Repeatability (ISO 9283): ± 0.02 Mm

Number Of Axes: 6

Mounting Position: Floor; Ceiling; Wall; Desired Angle

Footprint: 208 Mm X 208 Mm

Weight: Approx. 55 Kg

Ambient Temperature During Operation: 0 °C To 45 °C (273 K To 318 K)

Controller: KR C5 Micro; KR C4 Compact

Highlight:

Payload 6.7kg Kuka Robot Arm

Reach 901mm Kuka Robot Arm

KR 6 R900-2

Basic Infomation

Place of Origin: China

Brand Name: KUKA

Model Number: KR 6 R900-2

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 30-60 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 15 SETS PER MONTH

Gallery

KR 6 R900-2 Payload 6.7kg Reach 901mm 6 Axis Robotic Welding

Product Description

KR 6 R900-2 Payload 6.7kg Reach 901mm 6 Axis Robotic Welding

The KR 6 R900-2 is designed for a rated payload of 3 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used.

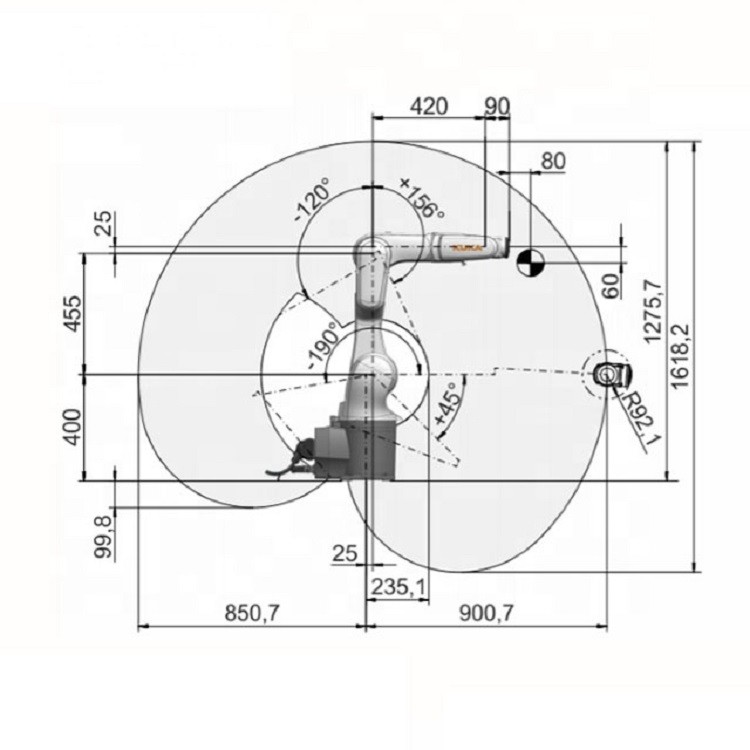

Axis data

Motion range
A1	±170 °
A2	-190 ° / 45 °
A3	-120 ° / 156 °
A4	±185 °
A5	±120 °
A6	±350 °

Product Description

Specification

item	value
Place of Origin	China
	Shanghai
Brand Name	KUKA
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC
Warranty	1 Year
	Video technical support, Online support
After Warranty Service	Online support
Local Service Location	Egypt, France, Germany, Pakistan, Thailand, Malaysia, Chile, Tajikistan
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location	Italy, Saudi Arabia, India, Thailand, Kenya, Romania, Kyrgyzstan
Maximum reach	901 mm
Maximum payload6.7 kg	6.7 kg
Teach pendant	KUKA smartPAD
Pose repeatability (ISO 9283)	± 0.02 mm
Number of axes	6
Mounting position	Floor; Ceiling; Wall; Desired angle
Footprint	208 mm x 208 mm
Weight	approx. 55 kg
Ambient temperature during operation	0 °C to 45 °C (273 K to 318 K)
Controller	KR C5 micro; KR C4 compact

Packing & Delivery

Robotic Welding Arm KR 6 R900-2 Payload 6.7kg Reach 901mm With KR C5 Micro Controller 6 Axis Robotic Welding Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)

Company Profile

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot,Control Valve

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
