6 Axis Arm Robot Han'S Star Mobile Platform Handling Robot Cobot Programmable

6 Axis Arm Robot Han'S Star Mobile Platform Handling Robot Cobot Programmable

CE Programmable Collaborative Robot Arm

36m/min Collaborative Robot Arm

50KG Payload Collaborative Robot Arm

Place of Origin:

China

Brand Name:

Hans

Certification:

CE

Model Number:

Han's Star Mobile Platform

Contact Us

Request A Quote
Product Details
Dimensions:
L1100*W650*H745mm (without Arm)
Navigation:
Laser SLAM/magnetic Tape Navigation
Walking Direction:
Forward,backward,spin Around(Remote Control Mode)
Driving Mode:
Two-wheel Differential Driving
Movement Speed:
18-36m/min
Payload:
50KG
Maximum Grip Weight:
15KG(maximum Working Reach1000mm,normal Working Reach 700mm )
Alarm Way:
Speaker, 3-color Light
Lifting Mechanism Of Driving Unit:
One-button Electric Lifting
AGV Repeated Positioning Accuracy:
Maximum ±10mm
Arm Repeated Positioning Accuracy:
±0.05mm
Safety Device:
Lidar, Bumper, E-STOP
Endurance:
No Load: 12h, Full-load: 8h
Available Options:
Auto Charge
Vision:
Gripper
Product Description

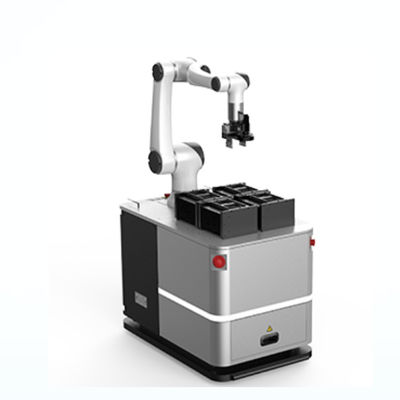

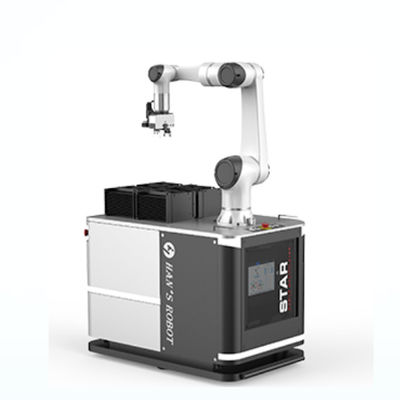

6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm



Product Category: Star Mobile Robot

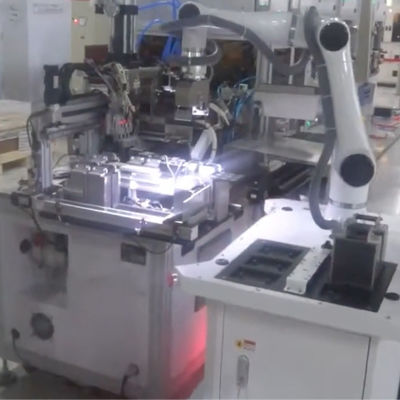

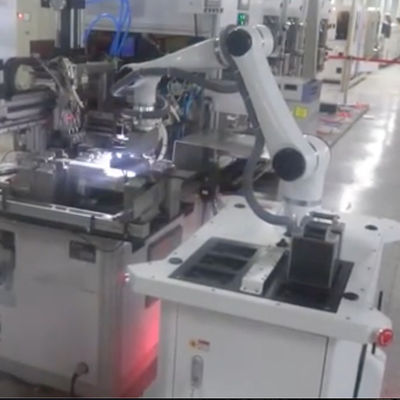

Star robot is mainly used in unmanned workshops of electronics and machining industry. It can automatically grab objects,handle and transport work pieces with mobile robot, robot arm and machine visual system in place of workers, thus
achieving unmanned production in workshops
Features
Multiple navigation methods
Star supports tape/laser SLAM trackless navigation(User can choose appropriate navigation methods according to different environments),which makes it more flexible and universal to adapt to complicated working environment.
Safe and reliable
Robot arm support torque feedback, so the robot will stop in time when it touches obstacles. Moreover, multiple protection measures ensure the safe and reliable work, such as remote laser protection, short distance anti-collision protection, E-stop, etc.
Independent R&D
The key subsystems of Star, such as mobile robot,Elfin robot, AGV, machine vision and force control gripper are all developed by Han’s Robot. It ensures the consistency as well as compatibility of the whole system and reduces costs for
customer as much as possible.
Easy to operate
Force-free teaching effectively reduces debugging time and learning cost.It can communicate with customer machine and portable PC via wireless net works. Besides, such operations can be finished in very short time as robot arrangement, visual matching, teaching pendant and so on through the friendly man-machine operation interface.Additionally, real-
time monitoring will start if host computer software is installed in customer monitoring computer.
Product Description



product name 6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm
dimensions L1100*W650*H745mm (without arm)
navigation laser SLAM/magnetic tape navigation
walking direction forward,backward,spin around(Remote control mode)
driving mode two-wheel differential driving
movement speed 18-36m/min
payload 50KG
maximum grip weight 15KG(maximum working reach1000mm,normal working reach 700mm )
alarm way speaker, 3-color light

lifting mechanism

of driving unit

one-button electric lifting

AGV repeated

positioning accuracy

maximum ±10mm

arm repeated

positioning accuracy

±0.05mm
safety device lidar, bumper, E-STOP
endurance no load: 12h, full-load: 8h
available options auto charge
vision gripper





Hans Star Mobile Robot Introduction:



6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm

6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm

6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm6 Axis Arm Robot Han's Star Mobile Platform Handling Robot Cobot as Programmable Robot Arm
