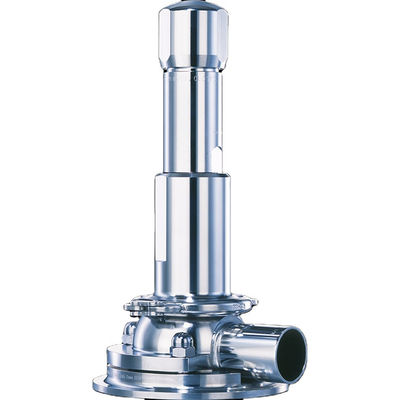

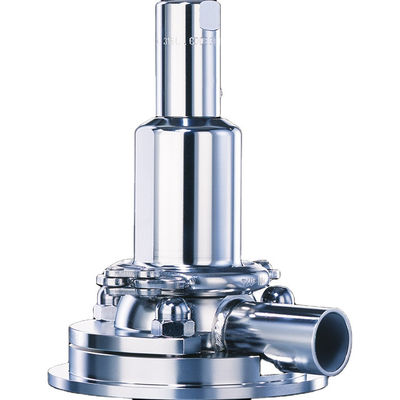

Name: Type 484 With Small To Medium Capacities Spring Loaded Safety Valve
Brand: LESER
SKU: Type 484
Rating: 4.9 (145 reviews)

Home > products > Pressure Reducing Valve >

Type 484 With Small To Medium Capacities Spring Loaded Safety Valve

F Orifice Spring Loaded Safety Valve

DIN Spring Loaded Safety Valve

BN2 Spring Loaded Safety Valve

Place of Origin:

Germany

Brand Name:

LESER

Model Number:

Type 484

Request A Quote

Product Details

Nominal Diameter At Inlet:

DN 25 - DN 40 | 1'' - 2''

Orifice:

D - F

Actual Orifice Diameter D₀:

13 - 25 Mm | 0.512 - 0.984 In

Actual Orifice Area A₀:

133 - 491 Mm² | 0.206 - 0.761 In²

Pressure:

0.1 - 16 Bar | 1.5 - 232 Psig

Temperature (in Accordance With DIN EN):

-45 To 250 °C | -49 To 482 °F

Body Material:

1.4435 (BN2) | SA 479 316L

Valve Connection:

Inlet: Vessel Connection Type 5034 For Welding Into The Vessel Outlet: Normally Welded End Connection Acc. To ASME DIN 11850, Clamps Acc. To ASME BPE / DIN 32676, ISO 2852 Or DIN EN ISO 1127, Aseptic Clamp Acc. To DIN 11864 T1 Series A Or B (with Nut), DIN

Bellows Material (optional):

EPDM

Load Type:

Spring Loaded

Specials:

HyTight Assembly Designed And Manufactured Acc. To: DIN 11866, ASME BPE, EN 1672-2, DIN ISO 14159, USP Class VI And FDA 21 CFR

edward.zhao@gongboshi.com

Contact Now

Product Description

Type 484 With Small To Medium Capacities Spring Loaded Safety Valve

Product Description

Specification

item	value
Warranty	1 Year
Type	Safety Relief Valves
Place of Origin	Germany
Brand Name	LESER
Model Number	Type 484
Application	Industries
Structure	Safety
Nominal Diameter at Inlet	DN 25 - DN 40 \| 1'' - 2''
Orifice	D - F
Actual Orifice Diameter d	13 - 25 mm \| 0.512 - 0.984 in
Actual Orifice Area A	133 - 491 mm² \| 0.206 - 0.761 in²
Pressure	0.1 - 16 bar \| 1.5 - 232 psig
Temperature (in accordance with DIN EN)	-45 to 250 °C \| -49 to 482 °F
Body Material	1.4435 (BN2) \| SA 479 316L
Valve Connection	Inlet: vessel connection type 5034 for welding into the vessel
Bellows Material (optional)	EPDM
Load Type	Spring loaded

Packing & Delivery

Safety Valve For Pressure Cooker Type 485 With A low Dead Space Ratio Through Weldable Spring Loaded Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
