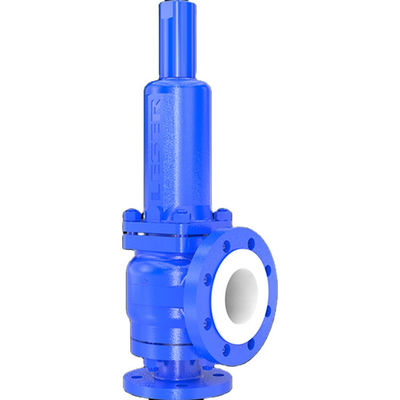

Name: Type 447 With Full PTFE-Lining At The Inlet And Outlet Spring Loaded Safety Valve
Brand: LESER
SKU: Type 447
Rating: 5 (179 reviews)

Home > products > Pressure Reducing Valve >

Type 447 With Full PTFE-Lining At The Inlet And Outlet Spring Loaded Safety Valve

PTFE Lining Spring Loaded Safety Valve

CL150 Spring Loaded Safety Valve

10619 Spring Loaded Safety Valve

Place of Origin:

Germany

Brand Name:

LESER

Model Number:

Type 447

Request A Quote

Product Details

Nominal Diameter At Inlet:

DN 25 - DN 100 | 1" - 4"

Actual Orifice Diameter D₀:

23 - 92 Mm | 0.91 - 3.62 In

Actual Orifice Area A₀:

416 - 6648 Mm² | 0.645 - 10.304 In²

Pressure:

0.1 - 16 Bar | 1.45 - 232 Psig

Temperature (in Accordance With DIN EN):

-85 To 200 °C | -121 To 392 °F

Body Material:

1.0406, 10619, 1.0570 + Virgin PTFE | SA 216 WCB

Valve Connection:

Flange Acc. To DIN EN 1092-1 Or Acc. To ASME B 16.5

Load Type:

Spring Loaded

Specials:

HyTight Assembly Designed And Manufactured Acc. To: DIN 11866, ASME BPE, EN 1672-2, DIN ISO 14159, USP Class VI And FDA 21 CFR

Flange Rating Inlet:

PN 16 | CL150

Temperatur (nach ASME):

-29 To 200 °C | -200 To 392 °F

Bellows Material (optional):

PTFE

Blue Spirax Sarco Floating Ball Steam Drain Valve Or Check Valve For Industrial Pipe

Get Best Price

Fisher 1098-EGR Gas Pressure Regulators Digital Pressure Reducing Valve For Packaging Compressor

Get Best Price

Fuel Gas Pressure Regulator Valve FISHER 95L For Pressure Regulating With Skid Mount Package

Get Best Price

Fisher 299H Gas Reducing Pressure Regulator For Desuperheating And Reducing Device

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

Type 447 With Full PTFE-Lining At The Inlet And Outlet Spring Loaded Safety Valve

Product Description

Specification

item	value
Warranty	1 Year
Type	Safety Relief Valves
Place of Origin	Germany
Brand Name	LESER
Model Number	Type 447
Application	Industries
Structure	Safety
Nominal Diameter at Inlet	DN 25 - DN 100 \| 1" - 4"
Orifice	D - F
Actual Orifice Diameter d	23 - 92 mm \| 0.91 - 3.62 in
Actual Orifice Area A	416 - 6648 mm² \| 0.645 - 10.304 in²
Pressure	0.1 - 16 bar \| 1.45 - 232 psig
Flange Rating Inlet	PN 16 \| CL150
Temperature (in accordance with DIN EN)	-85 to 200 °C \| -121 to 392 °F
Temperatur (nach ASME)	-29 to 200 °C \| -200 to 392 °F
Body Material	1.0406, 10619, 1.0570 + Virgin PTFE \| SA 216 WCB
Load Type	Spring loaded

Packing & Delivery

Safety Valve For Pressure Cooker Type 447 With Full PTFE-Lining At The Inlet And Outlet Spring Loaded Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
