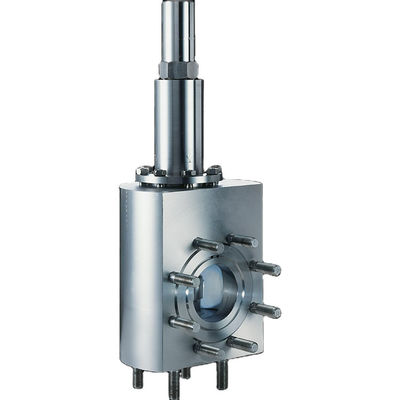

Name: Type 449 With Block Body Flushing Protective Gas Spring Loaded Safety Valve
Brand: LESER
SKU: Type 449
Rating: 5 (127 reviews)

Home > products > Pressure Reducing Valve >

Type 449 With Block Body Flushing Protective Gas Spring Loaded Safety Valve

SS Bellows Pressure Reducing Valve

Protective Gas Spring Loaded Safety Valve

Body Flushing Spring Loaded Safety Valve

Place of Origin:

Germany

Brand Name:

LESER

Model Number:

Type 449

Request A Quote

Product Details

Nominal Diameter At Inlet:

DN 25 - DN 100 | 1" - 4"

Actual Orifice Diameter D₀:

23 - 92 Mm | 0.91 - 3.62 In

Actual Orifice Area A₀:

416 - 6648 Mm² | 0.645 - 10.304 In²

Pressure:

0.1 - 16 Bar | 1.45 - 232 Psig

Temperature (in Accordance With DIN EN):

-270 To 450 °C | -121 To 392 °F

Body Material:

Acc. To Customer Preference All Materials Available

Valve Connection:

Flange Acc. To DIN EN 1092-1 Or Acc. To ASME B 16.5

Load Type:

Spring Loaded

Specials:

Currently No Approvals Acc. To ASME

Bellows Material (optional):

Stainless Steel

Blue Spirax Sarco Floating Ball Steam Drain Valve Or Check Valve For Industrial Pipe

Get Best Price

Fisher 1098-EGR Gas Pressure Regulators Digital Pressure Reducing Valve For Packaging Compressor

Get Best Price

Fuel Gas Pressure Regulator Valve FISHER 95L For Pressure Regulating With Skid Mount Package

Get Best Price

Fisher 299H Gas Reducing Pressure Regulator For Desuperheating And Reducing Device

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

Type 449 With Block Body Flushing Protective Gas Spring Loaded Safety Valve

PTFE-lined flanged safety valves for corrosive media such as chlorine, acids, and lyes. With their highly

resistant lining they offer a safe solution for corrosive media.

Applications

• Corrosive or aggressive chemicals

• Chemical equipment and piping

• Chlorine manufacture and processing

• Reducing acids

(e. g. hydrochloric acid, acetic acid)

• Alkalis or caustic service

• MDI systems

Product Description

Specification

item	value
Warranty	1 Year
Type	Safety Relief Valves
Place of Origin	Germany
Brand Name	LESER
Model Number	Type 449
Application	Industries
Structure	Safety
Nominal Diameter at Inlet	DN 25 - DN 100 \| 1" - 4"
Actual Orifice Diameter d	23 - 92 mm \| 0.91 - 3.62 in
Actual Orifice Area A	416 - 6648 mm² \| 0.645 - 10.304 in²
Pressure	0.1 - 16 bar \| 1.45 - 232 psig
Temperature (in accordance with DIN EN)	-270 to 450 °C \| -121 to 392 °F
Body Material	Acc. to customer preference all materials available
Load Type	Spring loaded
Valve Connection	Flange acc. to DIN EN 1092-1 or acc. to ASME B 16.5
Bellows Material (optional)	Stainless steel
Specials	Currently no approvals acc. to ASME
