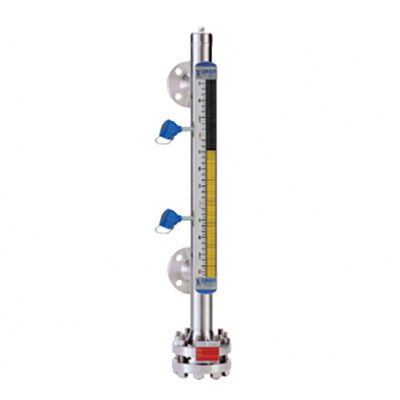

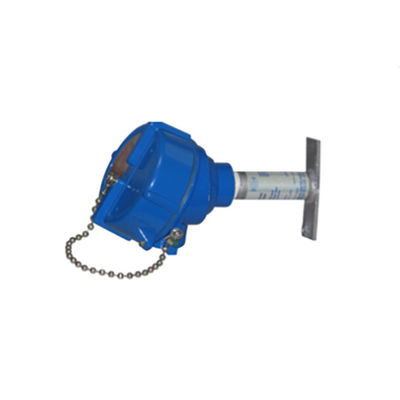

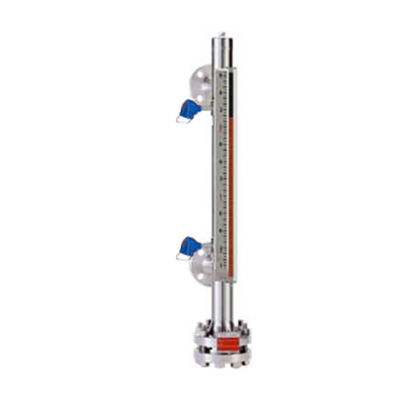

ORS 1-Amp Reed Switch Magnetrol instrument magnetic level indicators with explosion proof stainless steel
| Product Name | ORS 1-Amp Reed Switch Magnetrol instrument magnetic level indicators with explosion proof stainless steel |
| Model | ORS-XXXX-001 |
| Type | Bi-stable reed switch |
| Supply Voltage | 250 VAC/150 VDC max |
| Maximum Load | 25 watts AC/DC max |
| Dead band | ±0.50" (13 mm) float travel |
| Temperature Range | -58 to 325 °F (-50 to 163 °C) |
| Enclosure Rating | NEMA 4X/7/9 |
| Standard housing | 316 stainless steel |
| Enclosure Material | aluminum or stainless steel |
