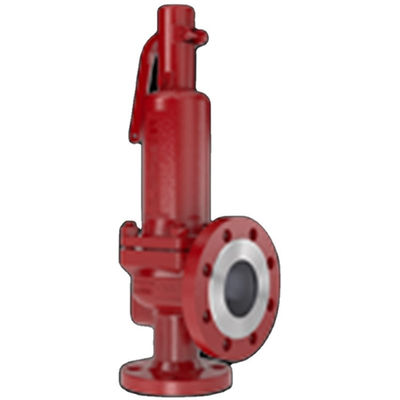

Type 424 Heating And Air Conditioning Spring Loaded Safety Valve

Type 424 Heating And Air Conditioning Spring Loaded Safety Valve

Air Conditioning Spring Loaded Safety Valve

Type 424 Pressure Reducing Valve

PN16 Spring Loaded Safety Valve

Place of Origin:

Germany

Brand Name:

LESER

Model Number:

Type 424

Contact Us

Request A Quote
Product Details
Nominal Diameter At Inlet:
DN 25 - DN 150 | 1" - 6"
Actual Orifice Diameter D₀:
23 - 125 Mm | 0.98 - 4.92 In
Actual Orifice Area A₀:
416 - 12272 Mm² | 0.65 - 19 In²
Pressure:
0.5 - 1 Bar | 7.2 - 14.5 Psig
Flange Rating Inlet:
PN 16 | PN16
Temperature (in Accordance With DIN EN):
Up To 120 °C | Up To 248 °F
Body Material:
0.6025, (1.6019) | Cast Steel, (SA 216 WCB)
Valve Connection:
Flange Acc. To DIN EN 1092-1
Bellows Material (optional):
EPDM
Load Type:
Spring Loaded
Product Description

Type 424 Heating and Air Conditioning Spring Loaded Safety Valve



Safety valves for heating systems

  • Standardized heating safety valve
  • Suitable for steam generators up to 1 bar overpressure
  • Suitable for water heating systems up to 120 °C
  • Complies with DIN EN ISO 4126-1, DIN 4751 Part 2 and TRD 721 standards
Product Description
Specification


item

value

Warranty

1 Year

Type

Safety Relief Valves

Place of Origin

Germany

Brand Name

LESER

Model Number

Type 424

Application

Industries

Structure

Safety

Nominal Diameter at Inlet

DN 25 - DN 150 | 1" - 6"

Actual Orifice Diameter d

23 - 125 mm | 0.98 - 4.92 in

Actual Orifice Area A

416 - 12272 mm² | 0.65 - 19 in²

Pressure

0.5 - 1 bar | 7.2 - 14.5 psig

Temperature (in accordance with DIN EN)

up to 120 °C | up to 248 °F

Body Material

0.6025, (1.6019) | Cast steel, (SA 216 WCB)

Load Type

Spring loaded

Valve Connection

Flange acc. to DIN EN 1092-1

Bellows Material (optional)

EPDM

Flange Rating Inlet

PN 16 | PN16


Packing & Delivery


Type 424 Heating And Air Conditioning Spring Loaded Safety Valve 0

Type 424 Heating And Air Conditioning Spring Loaded Safety Valve 1

Safety Valve For Pressure Cooker Type 449 With Block Body Flushing Protective Gas Spring Loaded Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
