Place of Origin:
JAPAN
Brand Name:
YASKAWA
Certification:
ce eac
Model Number:
GP 8
Contact Us
Video
Video

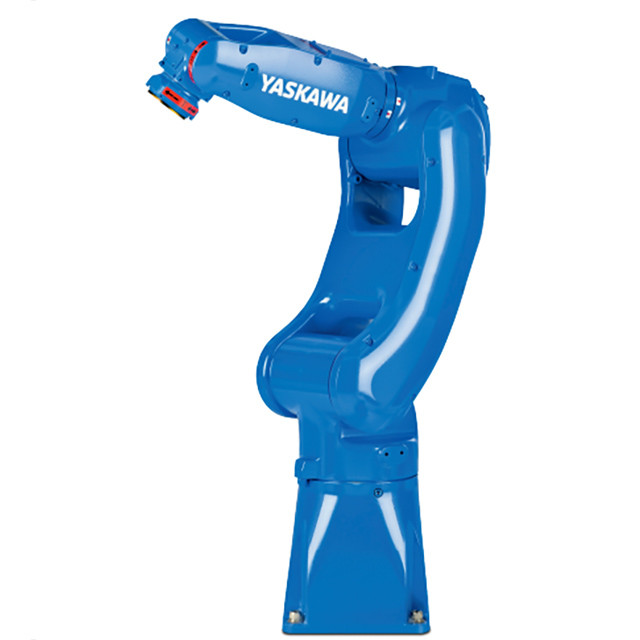

Yaskawa MOTOMAN GP8 industrial robot arm with 6 axis used as vehicle painting robot arm
Main Specifications
Model: GP 8
Maximum reach: 727 mm
Maximum payload: 8 kg
Pose repeatabilit: ± 0.01mm
Number of axes :6
Weight:32 kg
| Production Name | Yaskawa MOTOMAN GP8 industrial robot arm with 6 axis used as vehicle painting robot arm |
| Model | GP 8 |
| Application | painting robot arm |
| Maximum reach | 727 mm |
| Maximum payload | 8 kg |
| Pose repeatability (ISO 9283) | ± 0.01 mm |
| Number of axes | 6 |
| Mounting position | Ceiling, Wall, Floor |
| Weight | 32 kg |
| Humidity | 20% - 80% |
| Controller | YRC 1000 |

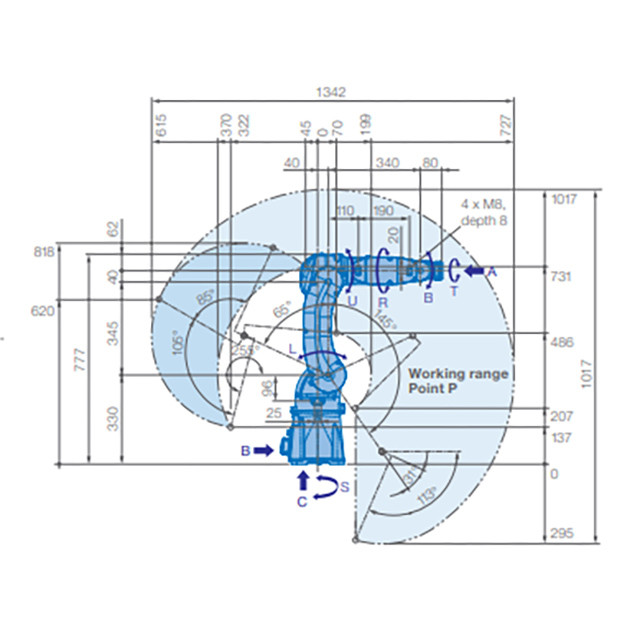

| Motion range | |
| S axis | + 170° to - 170° |
| L axis | + 145° to - 65° |
| U axis | + 190° to - 70° |
| R axis | + 190° to - 190° |
| B axis | + 135° to - 135° |
| T axis | + 360° to - 360° |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
