Name: BX300L Payload 300kg Reach 2812mm Compact Design High Speed Spot Welding Robot
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: BX300L
Price: 75,050.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Articulated Robot

Degrees Of Freedom: 6 Axes

Payload: 300kg

Max. Reach: 2812 Mm

Positional Repeatability: ±0.07 (mm) *1

Applications: Spot Welding/Assembly/Material Handling

Mass: 1460kg

Mounting: Floor

Proection: Wrist : IP67 Equivalent / Base Axis : IP54 Equivalent

Controller / Power Requirements: 7.5(kVA) *2

Highlight:

Payload 300kg Robot Arm

Reach 2812mm Robot Arm

IP67 Spot Welding Robot Arm

Basic Infomation

Place of Origin: China

Brand Name: Kawasaki

Model Number: BX300L

Payment & Shipping Terms

Packaging Details: WOODEN BOX

Delivery Time: 4~6 weeks

Payment Terms: T/T, D/P, D/A, Western Union, L/C

Supply Ability: 50 sets per month

Gallery

BX300L Payload 300kg Reach 2812mm Compact Design High Speed Spot Welding Robot

Product Description

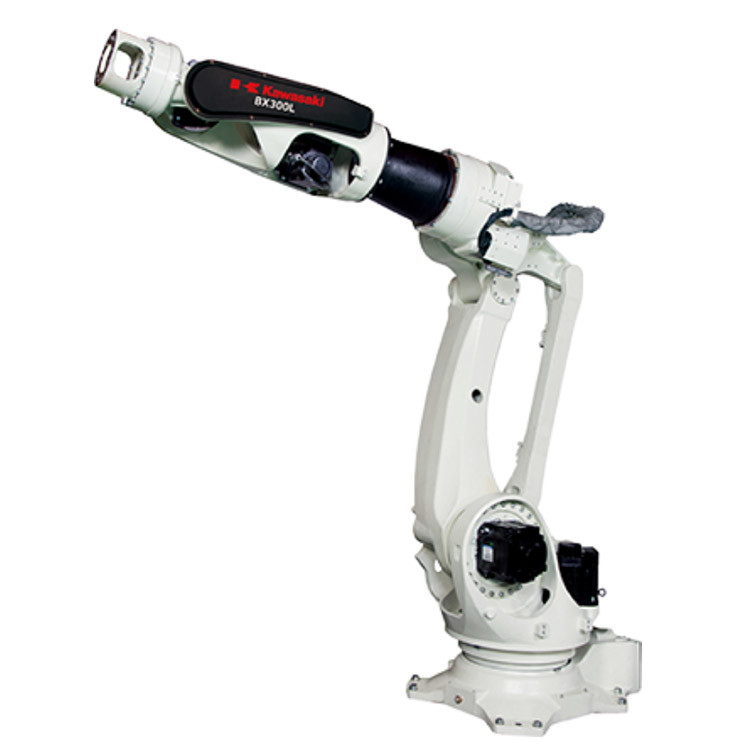

BX300L Payload 300kg Reach 2812mm Compact Design High Speed Spot Welding Robot

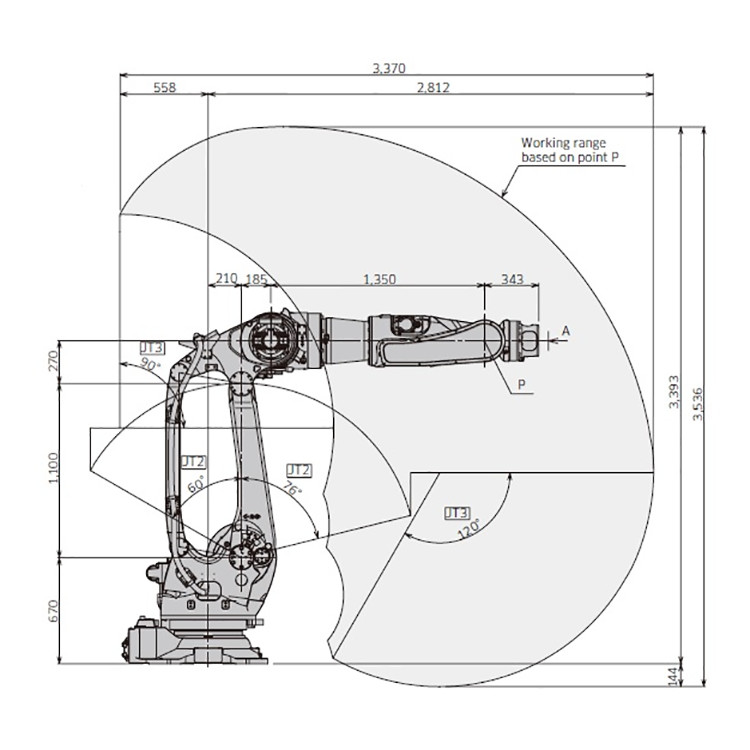

The BX300L high-speed spot welding robot features a hollow wrist for housing cables and hoses, a longer reach with wide motion range, and the highest payload capacity of the B series robots.

Product Description

Specification

item	value
Place of Origin	China
	Shanghai
Brand Name	Kawasaki
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC
Warranty	1 Year
	Video technical support, Online support
After Warranty Service	Online support
Local Service Location	Egypt, Italy, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Malaysia, Australia, Argentina, South Korea, Chile, Sri Lanka, Ukraine
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location	Egypt, Germany, Brazil, Peru, Indonesia, India, Mexico, Spain, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh
Type	Articulated Robot
Degrees of Freedom	6 axes
Payload	300 kg
Max. Reach	2812 mm
Positional Repeatability	±0.07 (mm) *1
Applications	Spot Welding/Assembly/Material Handling
Mass	1460kg
Mounting	Floor
Protection	Wrist : IP67 equivalent / Base axis : IP54 equivalent
Power Requirements	7.5(kVA) *2

Packing & Delivery

Robot Spot Welding 6 Axis BX300L Payload 300kg Reach 2812mm Compact Design High Speed Spot Welding Robot Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)
