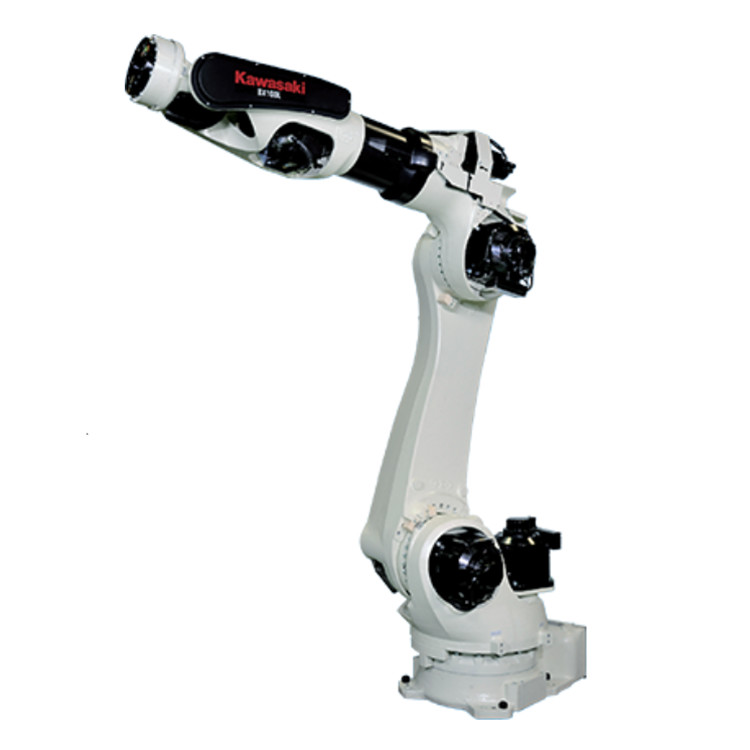

Name: BX200L 6 Axis Payload 200kg Reach 2597mm High Speed Spot Welding Robot
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: BX200L
Price: 75,050.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Articulated Robot

Degrees Of Freedom: 6 Axes

Payload: 200kg

Max. Reach: 2597 Mm

Positional Repeatability: ±0.06 (mm) *1

Applications: Spot Welding/Assembly/Material Handling/Machine Tending/Friction Spot Joining

Mass: 890kg

Mounting: Floor

Proection: Wrist : IP67 Equivalent / Base Axis : IP54 Equivalent

Controller / Power Requirements: E02 / 7.5 KVA

Highlight:

Reach 2597mm Robot Arm

Payload 200kg Robot Arm

6 Axis Spot Welding Robot Arm

Basic Infomation

Place of Origin: China

Brand Name: Kawasaki

Model Number: BX200L

Payment & Shipping Terms

Packaging Details: WOODEN BOX

Delivery Time: 4~6 weeks

Payment Terms: T/T, D/P, D/A, Western Union, L/C

Supply Ability: 50 sets per month

Gallery

BX200L 6 Axis Payload 200kg Reach 2597mm High Speed Spot Welding Robot

Product Description

BX200L 6 Axis Payload 200kg Reach 2597mm High Speed Spot Welding Robot

The BX200L high-speed spot welding robot features a hollow wrist for housing cables and hoses and can hold a large weld guns. Its small footprint makes it suitable for high-density installations.

Product Description

Specification

item	value
Place of Origin	China
	Shanghai
Brand Name	Kawasaki
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC
Warranty	1 Year
	Video technical support, Online support
After Warranty Service	Online support
Local Service Location	Egypt, Italy, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Malaysia, Australia, Argentina, South Korea, Chile, Sri Lanka, Ukraine
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location	Egypt, Germany, Brazil, Peru, Indonesia, India, Mexico, Spain, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh
Type	Articulated Robot
Degrees of Freedom	6 axes
Payload	200kg
Max. Reach	2597 mm
Positional Repeatability	±0.06 (mm) *1
Applications	Spot Welding/Assembly/Material Handling/Machine Tending
Mass	890kg
Mounting	Floor
Protection	Wrist : IP67 equivalent / Base axis : IP54 equivalent
Controller / Power Requirements	E02 / 7.5kVA

Packing & Delivery

Robot Spot Welding BX200L 6 Axis Payload 200kg Reach 2597mm High Speed Small Footprint Spot Welding Robot Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)

Company Profile

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot,Control Valve

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
