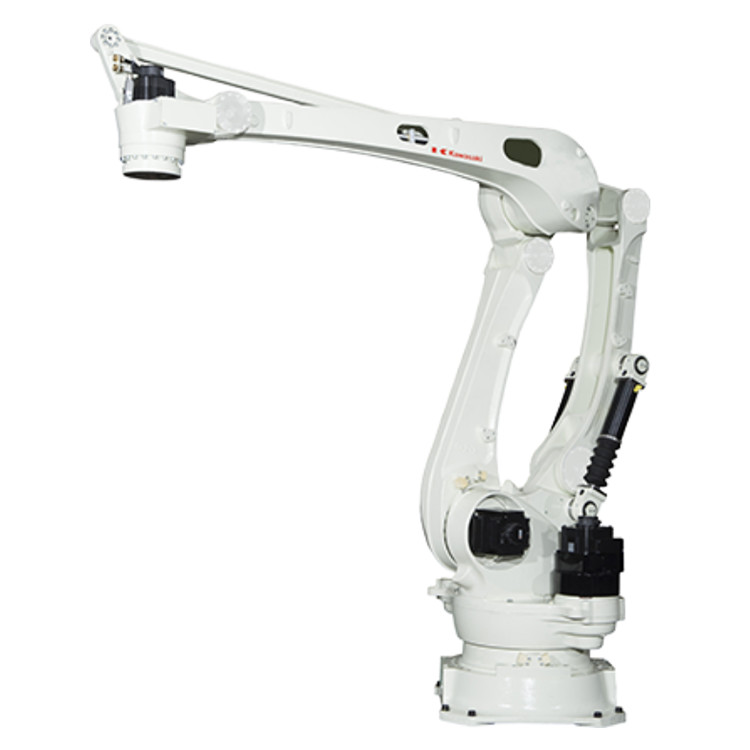

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot

1 set
MOQ
CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Type: Articulated Robot
Degrees Of Freedom: 4 Axes
Payload: 160kg
Max. Reach: 3,255 Mm
Positional Repeatability: ±0.5 (mm) *1
Applications: Palletizing
Mass: 1600kg
Mounting: Floor
Controller: E03
Power Requirements: 12kVA
Highlight:

Reach 3255mm Palletizing Robot

,

Payload 160kg Palletizing Robot

,

4 Axis Palletizing Robot
Basic Infomation
Place of Origin: China
Brand Name: Kawasaki
Model Number: CP180L
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Delivery Time: 4~6 weeks
Payment Terms: T/T, D/P, D/A, Western Union, L/C
Supply Ability: 50 sets per month
Product Description

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot

The CP series palletizing robots feature industry leading cycle times, a broad motion range, a space and energy saving controller, and easy-to-use palletizing software to program the robot’s operation. The robots drive the flexible automation of end-of-line and distribution processes in a wide range of industries, and support the highest production line efficiencies. With the lightest maximum payload capacity, the CP180L model's throughput is the highest of the CP series palletizing robots.



Product Description


Specification


item

value

Place of Origin

China



Shanghai

Brand Name

Kawasaki

Condition

New

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC

Warranty

1 Year



Video technical support, Online support

After Warranty Service

Online support

Local Service Location

Egypt, Italy, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Malaysia, Australia, Argentina, South Korea, Chile, Sri Lanka, Ukraine

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other

Showroom Location

Egypt, Germany, Brazil, Peru, Indonesia, India, Mexico, Spain, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh

Type

Articulated Robot

Degrees of Freedom

4 axes

Payload

160kg

Max. Reach

3,255 mm

Positional Repeatability

±0.5 (mm) *1

Applications

Palletizing

Mass

1,600kg

Mounting

Floor

Controller

E03

Power Requirements

12kVA


Packing & Delivery


CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 0

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 1

Palletizing Robot Palletizer Robot Arm CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)

Company Profile

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 2

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 3

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 4


CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 5

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 6

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 7

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot,Control Valve

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese


CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 8


CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 9


CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 10


CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 11


Production Name

Industry Robot

Power supply

20 ~ 25V

Protection rating

IP54

Weight

1.25kg





FAQ

Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).

Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.

CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 12
CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 13
CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 14
CP180L 4 Axis Payload 160kg Reach 3255mm High Speed Palletizing Robot 15
