Place of Origin:
China
Brand Name:
NEOTECHA
Model Number:
NXR/PFA
Contact Us

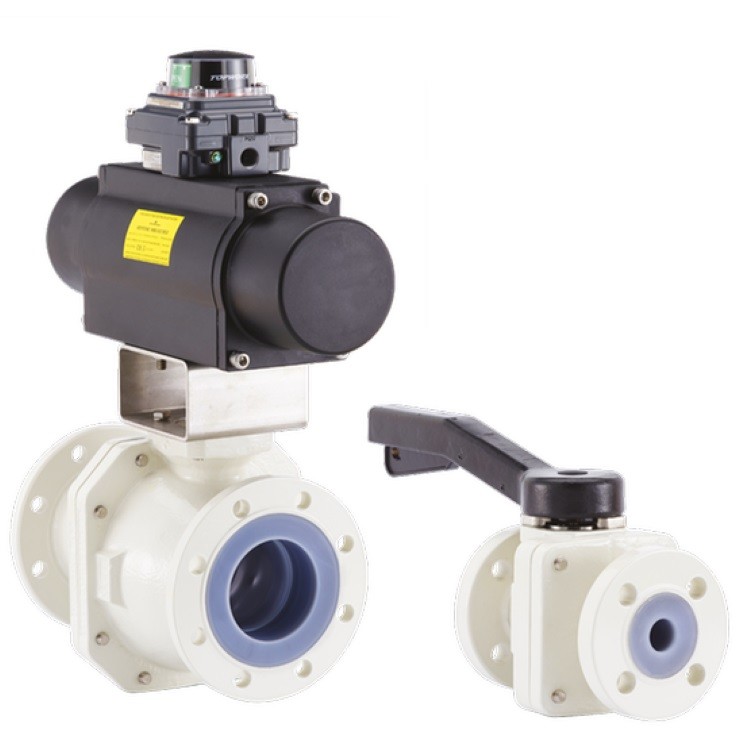

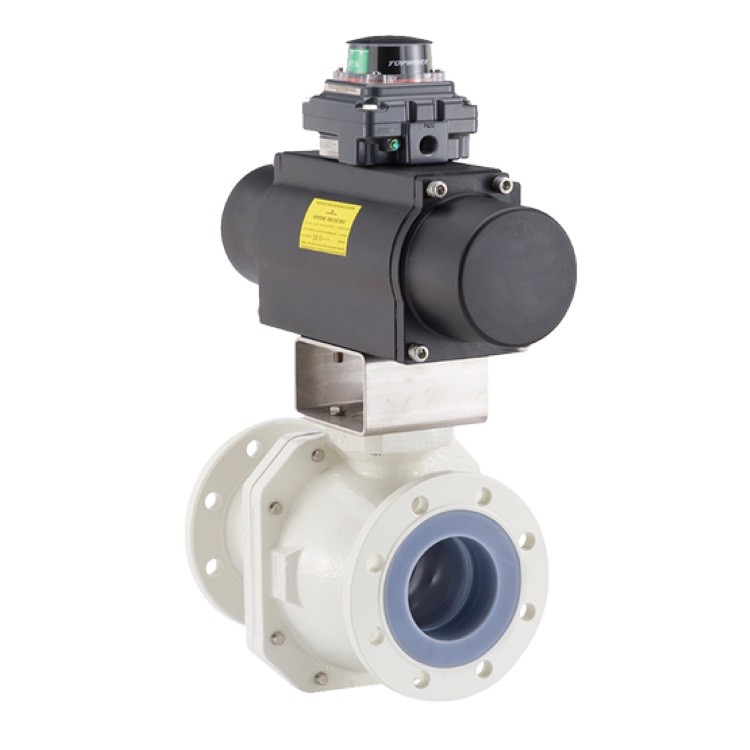

Neotecha NXR PFA Lined Ball Valve With Manual Actuators Standards API 609
Specifications
Application:Chemical Injection/Flow Assurance, Life Sciences, Chemical Dispersion, Reactors
Pressure Class:PN, ASME
Process Connection Type:Flanged
Seat/Seal Type:Lined, Ball
Standards:API 609
Valve Size:NPS 3 / DN 80, NPS 6 / DN 150, NPS 4 / DN 100, NPS 3/4 / DN 20, NPS 2 / DN 50, NPS 1-1/2 / DN 40, NPS 1/2 / DN 15, NPS 1 / DN 25
Valve Size Standard:NPS, JIN, DN
Features
1.PFA lining offers highest corrosion resistance
2.Bubble tight shut-off: precision machined ball and seats guarantees an absolute leak-free valve.
3.Full bore acc. EN 1983/EN17292 offers high Kv-value equal to the pipe.
4.One-piece ball/stem: no possibility of damaging PFA-lining on ball by the stem, no hysteresis, ideal for flow control applications.
5.Specific anti blow-out shaft design, which can not be affected by the media, according API 609.
6.Static electricity: build-up of static electricity is eliminated since the ball/stem and the housing are of the same potential.
7.Constant torque: the unique two-piece body construction together with the spring loaded seats guarantee a constant torque even after months of operation. ISO15848-1 approved.
8.The self adjusting packing is maintenance free and provides a leak free stem seal.

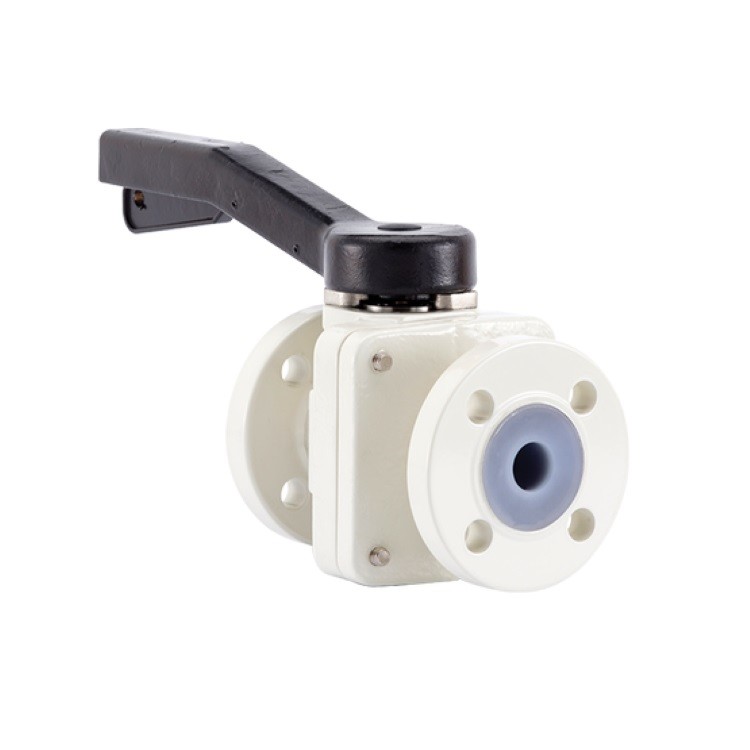

9.The handlever features a positive locked position in the open and closed position.
10.The body has a thermally applied polyester powder coating (RAL 9002) which offers excellent protection against external corrosion and rust.
11.Actuator mounting according to ISO 5211.
