CEC Series Differential Pressure/Pressure Transmitters Of Guanghua Instrument

CEC Series Differential Pressure/Pressure Transmitters Of Guanghua Instrument

Place of Origin:

China

Brand Name:

Guanghua

Model Number:

CEC Series

Contact Us

Request A Quote
Product Details
Diaphragm Material:
316L、TAN、HASTC-276、MONEL
Function:
Continuous Self-diagnosis
Damping Time:
0.1~16s
Brand:
Guanghua
Product Description

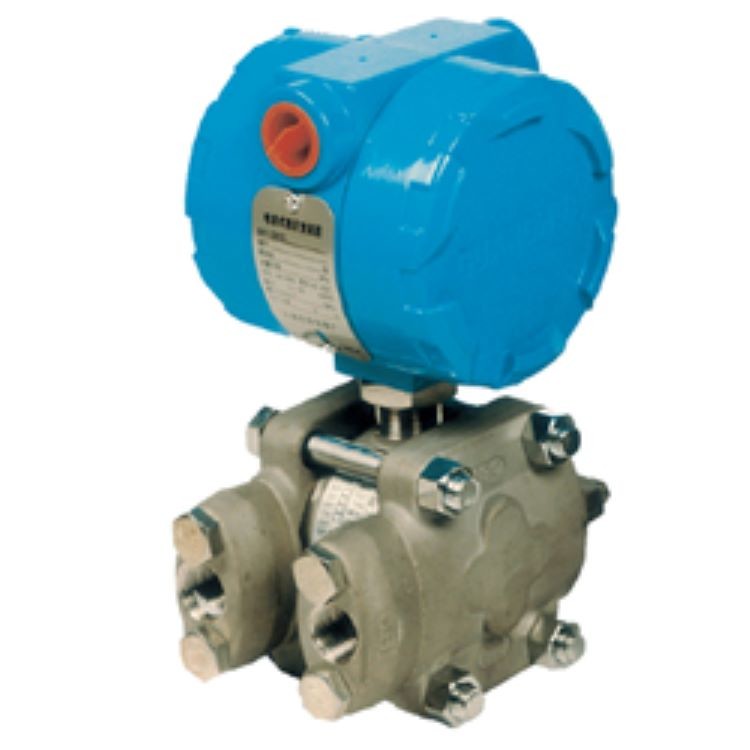

CEC Series Differential Pressure/Pressure Transmitters Of Guanghua Instrument

CEC series capacitive differential pressure/pressure transmitters were developed by Shanghai Guanghua Instrument Co., Ltd in 1981.The product is famous for its advanced design principle, complete varieties and specifications, easy installation and use, all-weather explosion-proof, stable and reliable performance, cheap and good quality, and enjoys a high reputation in the market.For more than 20 years, CEC series capacitive differential pressure/pressure transmitters have become more and more perfect. The key raw materials, components and spare parts are all imported. Its performance and quality are comparable to the foreign advanced similar products (such as 1151 series, etc.), and it is in the leading position in domestic capacitive differential pressure/pressure transmitters.

Functional features:

1) High accuracy and good stability

2) Remote hand operator or upper computer can be used to manage and control the internal information of the transmitter for configuration, so that the transmitter is in the required working state.The configuration data is stored in an EEPROM that is not easily lost

3) There can be 5 digital intelligent liquid crystal display, on-site display differential pressure/differential force value, output current value and output percentage value

4) It has continuous self-diagnosis function and can display self-diagnosis information

5) With linear compensation and digital fine-tuning function, it can realize local adjustment of zero position and range, and can also realize remote adjustment through remote hand operator, desktop and portable computer.Linear or root output is also available for different applications

6) The damping time can be set to transform between 0.1 ~ 16s;The pressure value can be converted between KPa, Pa, InH2O and Bar

7) The failure and safety modes can be set by flipping the failure/safety switch

8) With single point, multi-point and burst mode;With power off protection function, when power off can automatically save its working data

9) Solid components, plug type printed circuit board, small, light weight, fastening aseismatic

10) Good unidirectional overload protection characteristics, no mechanical moving parts, small maintenance workload

11) Unified structure of the whole series, strong interchangeability of parts

12) diaphragm material of contact medium can be selected (316L, TAN, HASTC-276, MonEL and other corrosion resistant materials), explosion-proof structure, all-weather use
