The device can be mounted in any position, allowing for both normal and split-range operation. Additionally, it boasts an excellent dynamic response and is highly resistant to any potential influence from the supply air. The proportional band (P band) is adjustable, and users can also adjust the air output capacity to suit their specific needs. The air supply consumption is relatively low, and the device is very resilient against mechanical vibrations. Furthermore, this device is designed to require minimal maintenance thanks to its compact construction.

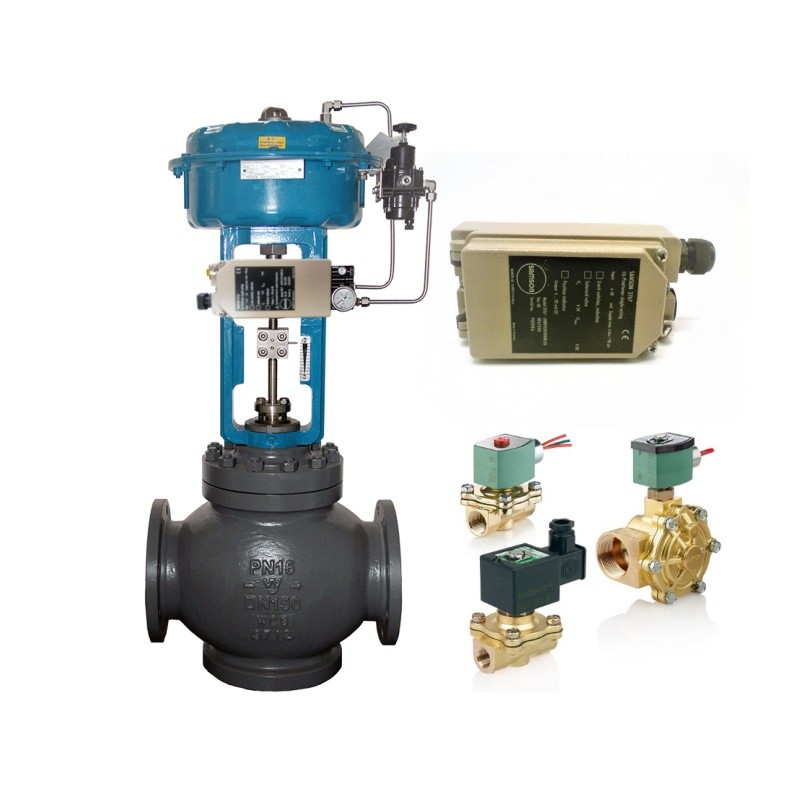

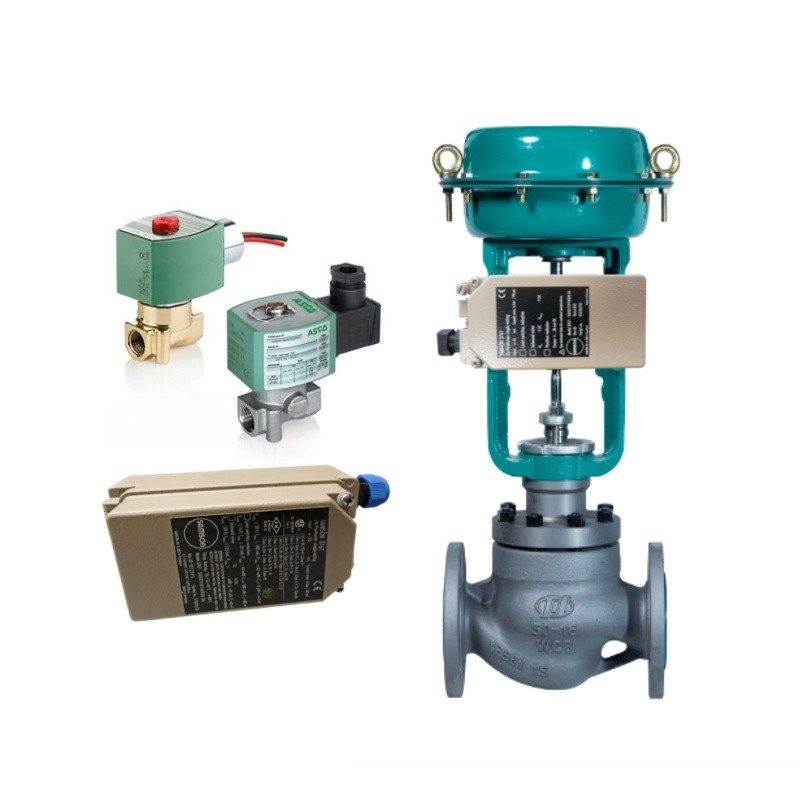

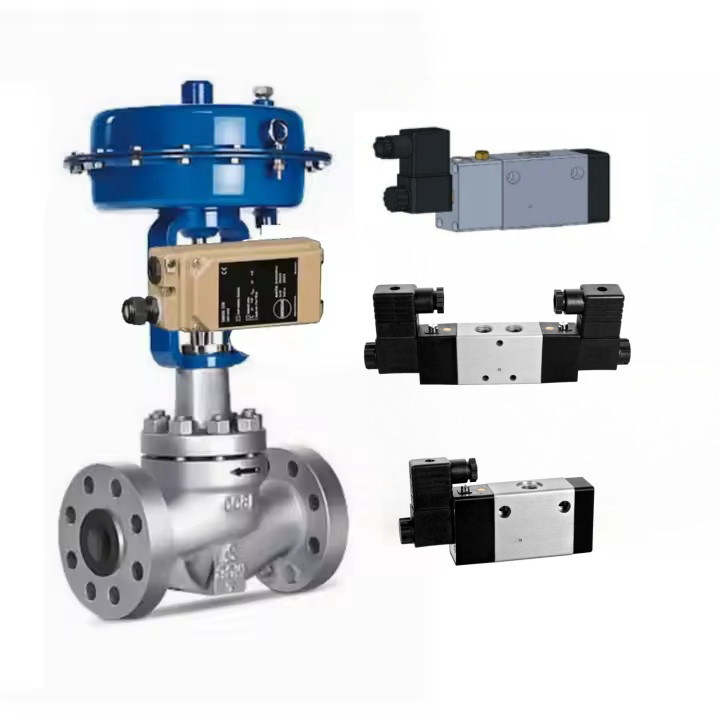

The Electropneumatic Positioner is a highly versatile instrument that allows attachment to a wide range of linear and rotary actuators. The device is designed to be compact and easy to maintain, with a die-cast aluminum or stainless steel housing.
The Electropneumatic Positioner is compatible with linear actuators as specified by IEC 60534-6 or SAMSON integral attachments. Rotary actuators can be attached according to VDI/VDE 3845, while double-acting actuators can be connected using the Type 3710 Reversing Amplifier.
With its low-maintenance design, the Electropneumatic Positioner can be mounted in any position and is insensitive to mechanical vibrations. It offers reversible direction of action and excellent dynamic response for precise control over the actuator.
The Electropneumatic Positioner features normal and split-range operation with adjustable proportional (P) band and air output capacity. The device consumes low supply air, making it an energy-efficient option for actuator control.
| Brand Name | Samson |
| Product | Electropneumatic Positioner |
| Acting | Single Acting Or Double Acting |
| Actuator | Linear Or Rotary |
| Communication | Without |
| Diagnostics | Without |
| Control loop | 4 To 20 MA |
| Material | Aluminum |
| Warranty | 1 Year |
| Customized support | OEM |
Positioners can be a valuable addition to your pneumatic control valves, providing increased accuracy and precision in their operation. These devices work by measuring the position of the valve stem and adjusting the pneumatic signal sent to the valve actuator to ensure that it operates exactly as intended.
One important consideration when choosing a positioner is whether you need the added functionality of a double-acting positioner or if a single-acting one will suffice. Single-acting positioners are less complex and typically less expensive, but they may not be suitable for all applications. Double-acting positioners offer greater control over the valve and can be a better choice for applications where precise control is necessary.
Regardless of which type of positioner you choose, it is important to ensure that it is properly attached to your pneumatic control valve. This may involve choosing the appropriate mounting location and using the correct hardware to secure the positioner in place. With the right positioner and installation, you can achieve greater precision and efficiency in your pneumatic control valve operation.
The Control Valve Positioner is a high-performance product that provides precise control and accurate positioning of control valves in industrial applications. Our product technical support and services include:
Our team of experienced engineers and technicians are dedicated to ensuring your Control Valve Positioner operates at optimal performance, while minimizing downtime and operating costs. Contact us for more information.
Product Packaging:
The Control Valve Positioner will be packaged in a sturdy cardboard box with foam inserts to protect it during shipping. The box will also include a user manual and any necessary mounting hardware.
Shipping:
The Control Valve Positioner will be shipped via standard ground shipping. Shipping times may vary depending on the destination, but customers can expect their product to arrive within 3-5 business days. Customers will receive a tracking number once their order has shipped.
