KR 470 PA Kuka Industrial Robot Rated Payload 470Kg Industrial Robot Arm 5 Axes Industrial Robot

KR 470 PA Kuka Industrial Robot Rated Payload 470Kg Industrial Robot Arm 5 Axes Industrial Robot

KR 470 PA Kuka Robot Arm

Payload 470Kg Industrial Robot Arm

IP65 Protection Industrial Robot Arm

Place of Origin:

China

Brand Name:

KUKA

Certification:

CE

Model Number:

KR 470 PA

Contact Us

Request A Quote
Product Details
Payload:
470 Kg
Maximum Reach:
3,150 Mm
Suppl. Load, Arm/link Arm/rotating Col:
50 Kg
Suppl. Load, Arm Link Arm, Max:
50 Kg
Maximum Total Load:
520 Kg
Number Of Axes:
5
Mounting Position:
Floor
Weight (excluding Controller), Approx:
2,331 Kg
Protection Classification:
IP 65
Robot Footprint:
1,240 Mm X 1,240 Mm
Product Description

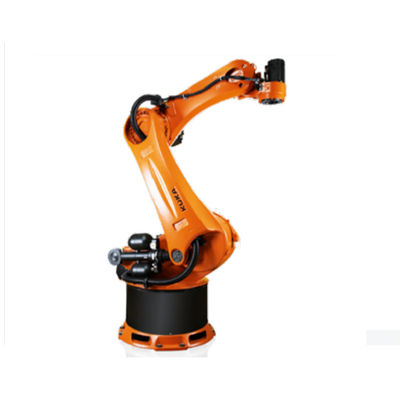

KR 470 PA kuka industrial robot Rated payload 470 kg industrial robot arm 5 axes industrial robot

The KR 470-2 PA features a compact design, low weight and high speed in the heavy-duty category. It is optimally suited to handling tasks with payloads of up to 470 kilograms. The palletizer can be flexibly adapted to its specific task by means of booster frames of different heights.

Product Description

KR 470 PA Kuka Industrial Robot Rated Payload 470Kg Industrial Robot Arm 5 Axes Industrial Robot 0
KR 470 PA Kuka Industrial Robot Rated Payload 470Kg Industrial Robot Arm 5 Axes Industrial Robot 1
KR 470 PA Kuka Industrial Robot Rated Payload 470Kg Industrial Robot Arm 5 Axes Industrial Robot 2
KR 470 PA Kuka Industrial Robot Rated Payload 470Kg Industrial Robot Arm 5 Axes Industrial Robot 3
KR 470 PA Kuka Industrial Robot Rated Payload 470Kg Industrial Robot Arm 5 Axes Industrial Robot 4

Specification


item

value

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

After Warranty Service

Video technical support, Online support

Local Service Location

None

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC

Condition

New

Place of Origin

China



Shanghai

Brand Name

KUKA

Weight

2,331 kg

Dimension(L*W*H)

Optional

Power

380V

Certification

CE

Warranty

1 Year



Online support

Payload

470 kg

Maximum reach

3,150 mm

Suppl. load, arm/link arm/rotating col

. 50 kg

Suppl. load, arm link arm, max

50 kg

Maximum total load

520 kg

Number of axes

5

Mounting position

Floor

Weight (excluding controller), approx

2,331 kg

Protection classification

IP 65

Robot footprint

1,240 mm x 1,240 mm


Packing & Delivery

ONE KR 470 PA kuka industrial robot Rated payload 470 kg industrial robot arm 5 axes industrial robot packing with fumigation wooden frame, WG:2,331 kg
