6 Axis Industrial Robotic Arm Industrial Robot With Rated Payload Of 600 Kg Kuka Industrial Robot

6 Axis Industrial Robotic Arm Industrial Robot With Rated Payload Of 600 Kg Kuka Industrial Robot

Kuka Industrial Robotic Arm

Payload 600Kg Kuka Robot Arm

2826mm Reach Kuka Robot Arm

Place of Origin:

China

Brand Name:

KUKA

Certification:

CE

Model Number:

KR 600 r2830

Contact Us

Request A Quote
Product Details
Maximum Reach:
2826 Mm
Maximum Payload:
729 Kg
Rated Payload:
600 Kg
Pose Repeatability (ISO 9283):
± 0.08 Mm
Number Of Axes:
6
Mounting Position:
Floor
Footprint:
1050 Mm X 1050 Mm
Weight:
Approx. 2650 Kg
Controller:
KR C4
Teach Pendant:
KUKA SmartPAD
Product Description
6 Axis industrial robotic arm industrial robot with rated payload of 600 kg kuka industrial robot

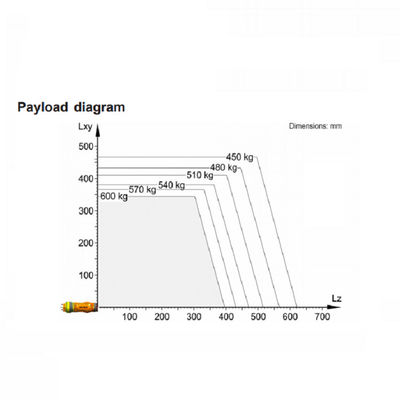

The KR 600 R2830 is designed for a rated payload of 600 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.



Product Description

6 Axis Industrial Robotic Arm Industrial Robot With Rated Payload Of 600 Kg Kuka Industrial Robot 0
6 Axis Industrial Robotic Arm Industrial Robot With Rated Payload Of 600 Kg Kuka Industrial Robot 1
6 Axis Industrial Robotic Arm Industrial Robot With Rated Payload Of 600 Kg Kuka Industrial Robot 2
6 Axis Industrial Robotic Arm Industrial Robot With Rated Payload Of 600 Kg Kuka Industrial Robot 3
6 Axis Industrial Robotic Arm Industrial Robot With Rated Payload Of 600 Kg Kuka Industrial Robot 4

Specification


item

value

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

After Warranty Service

Online support

Local Service Location

None

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC

Condition

New

Place of Origin

China



Shanghai

Brand Name

KUKA

Weight

2650 kg

Dimension(L*W*H)

Optional

Power

380V

Certification

CE

Warranty

1 Year



Online support

Maximum reach

2826 mm

Maximum payload

729 kg

Rated payload

600 kg

Pose repeatability (ISO 9283)

± 0.08 mm

Number of axes

6

Mounting position

Floor

Footprint

1050 mm x 1050 mm

Weight

approx. 2650 kg

Controller

KR C4

Teach pendant

KUKA smartPAD


Packing & Delivery

ONE 6 Axis industrial robotic arm industrial robot with rated payload of 600 kg kuka industrial robot packing with fumigation wooden frame, WG:2650kg
