Kuka Palletizing Robot Kr 10 R1420 10kg Rated Payload 6 Axis Arm Robot Industrial Robotic Arm For Pallets

Kuka Palletizing Robot Kr 10 R1420 10kg Rated Payload 6 Axis Arm Robot Industrial Robotic Arm For Pallets

Palletizing Kuka Robot Arm

10kg Payload Kuka Robot Arm

IP54 Industrial Robotic Arm

Place of Origin:

CHINA

Brand Name:

KUKA

Certification:

CE

Model Number:

KR 10 R1420

Contact Us

Request A Quote
Product Details
Type:
KR 10 R1420

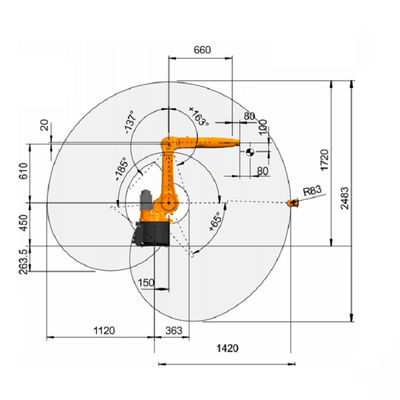

Maximum Reach:
1420 Mm
Maximum Payload:
10 Kg
Rated Payload:
10 Kg
Pose Repeatability (ISO 9283):
± 0.04 Mm
Number Of Axes:
6
Teach Pendant:
KUKA SmartPAD
Weight:
Approx. 160 Kg
Protection Rating (IEC 60529):
IP54
Product Description
Kuka palletizing robot KR 10 R1420 10kg rated payload 6 axis arm robot industrial robotic arm for pallets
The KR 10 R1420 is designed for a rated payload of 10 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.

Specification

item

value

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

After Warranty Service

Video technical support, Online support

Name

Kuka palletizing robot KR 10 R1420 10kg rated payload 6 axis arm robot industrial robotic arm for pallets

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC

Condition

New

Place of Origin

China



Shanghai

Brand Name

KUKA

Weight

160kg

Dimension(L*W*H)

333.5 mm x 307 mm

Certification

CE

Warranty

1 Year



Online support

Weight (KG)

160kg

Maximum reach

1420 mm

Maximum payload

-

Rated payload

10 kg

Teach pendant

KUKA smartPAD

Pose repeatability (ISO 9283)

± 0.04 mm

Number of axes

6

Footprint

333.5 mm x 307 mm

Weight

approx. 160 kg

Ambient temperature during operation

5 °C to 45 °C (278 K to 318 K)

Protection rating (IEC 60529)

IP54


Packing & Delivery

Kuka palletizing robot KR 10 R1420 10kg rated payload 6 axis arm robot industrial robotic arm for pallets WG:160KG
