Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed

1
MOQ
Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Body Design Conditions: PN16
PMA: 16 Bar G @ 120 °C
TMA: 250 °C
MAT: -10 °C
PMO: 14.6 Bar G
TMO: TMO Maximum Operating Temperature 2
Designed For A Maximum Cold Hydraulic Test Pressure Of:: 24 Bar G
Body Material: Austenitic Stainless Steel
Valve Seat: Stainless Stee
Connect: Screwed
Description: Horizontal Connections With Flow From Left To Right
Highlight:

16bar Ball Float Steam Trap

,

Horizontal Ball Float Steam Trap

,

Austenitic SS Ball Float Steam Trap
Basic Infomation
Place of Origin: China
Brand Name: Spirax Sarco
Model Number: FTGS14 (L-R)
Payment & Shipping Terms
Packaging Details: standard packaging
Payment Terms: L/C, T/T
Supply Ability: 1000 set per month
Product Description

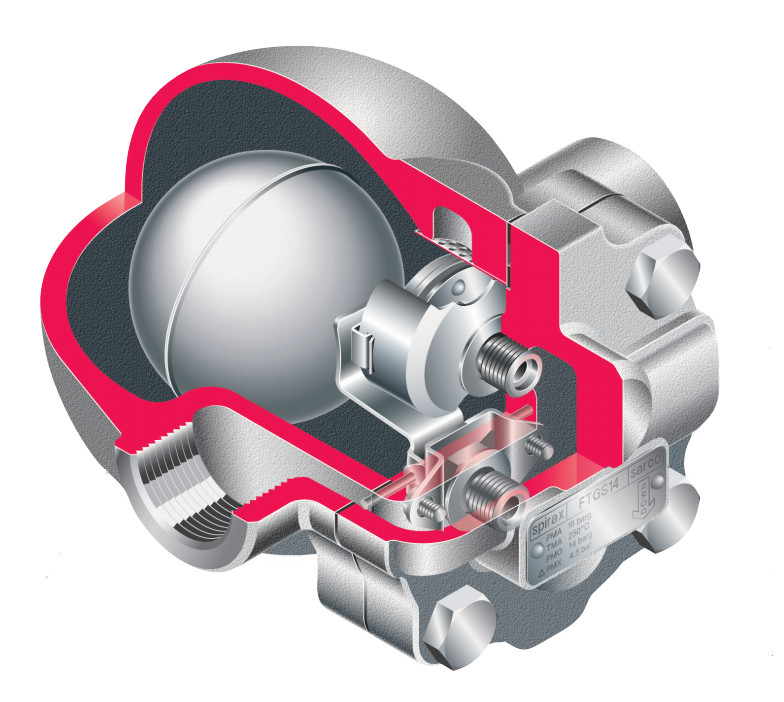

FLOAT AND THERMOSTATIC STEAM TRAPS

Extremely versatile traps that work efficiently on both light and heavy condensate loads.



Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed 0Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed 1Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed 2Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed 3Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed 4Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed 5Ball Float Steam Trap FTGS14 L-R Spirax Sarco Screwed 6
