FTGS14V Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap

FTGS14V Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap

PN16 Ball Type Steam Trap

FTGS14V Ball Type Steam Trap

Screwed Ball Type Steam Trap

Place of Origin:

China

Brand Name:

Spirax Sarco

Model Number:

FTGS14V

Contact Us

Request A Quote
Product Details
Description:
Vertical Connections With Flow From Top To Bottom
Body Design Conditions:
PN16
PMA:
16 Bar G @ 120 °C
TMA:
250 °C
MAT:
-10 °C
PMO:
14.6 Bar G
TMO:
TMO Maximum Operating Temperature 2
Designed For A Maximum Cold Hydraulic Test Pressure Of::
24 Bar G
Body Material:
Austenitic Stainless Steel
Valve Seat:
Stainless Stee
Connect:
Screwed
Product Description

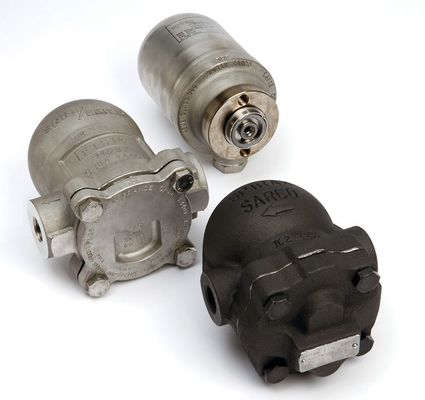

FLOAT AND THERMOSTATIC STEAM TRAPS

Extremely versatile traps that work efficiently on both light and heavy condensate loads.



Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.
