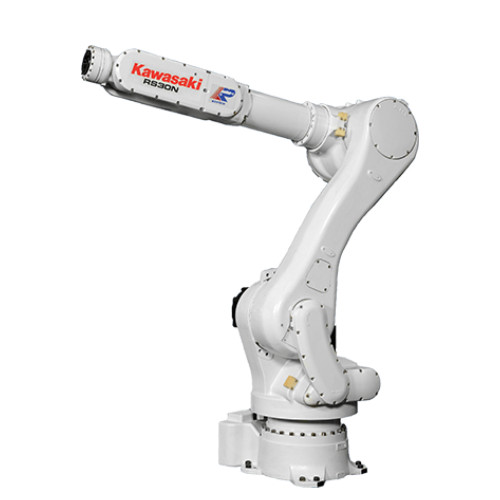

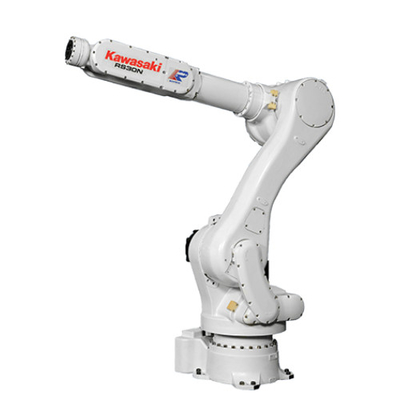

KAWASAKI Small Payload 6 Axis Industry Robot RS030N For Packing Assembly

KAWASAKI Small Payload 6 Axis Industry Robot RS030N For Packing Assembly

2100mm 6 Axis Robot

IP67 Payload 6 Axis Robot

Payload 30kg Industrial Robot Arm

Place of Origin:

JAPAN

Brand Name:

Kawasaki

Model Number:

RS030N

Contact Us

Request A Quote
Product Details
Axis:
6
Playload:
30 Kg
Max Range:
2100mm
Positional Repeatability (mm):
±0.06
Protection:
Wrist : IP67 Base Axis : IP65
Product Description

Product Description


Specification


KAWASIKA ROBOT RS030N SPECIFICATIONS



Type

Articulated Robot





Degrees of Freedom (axes)

6





Payload (kg)

30





Max. Reach (mm)

2100





Positional Repeatability (mm) ✽1

±0.06

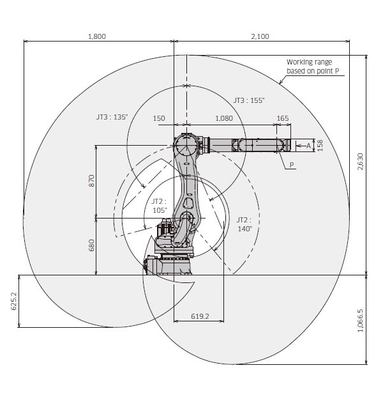

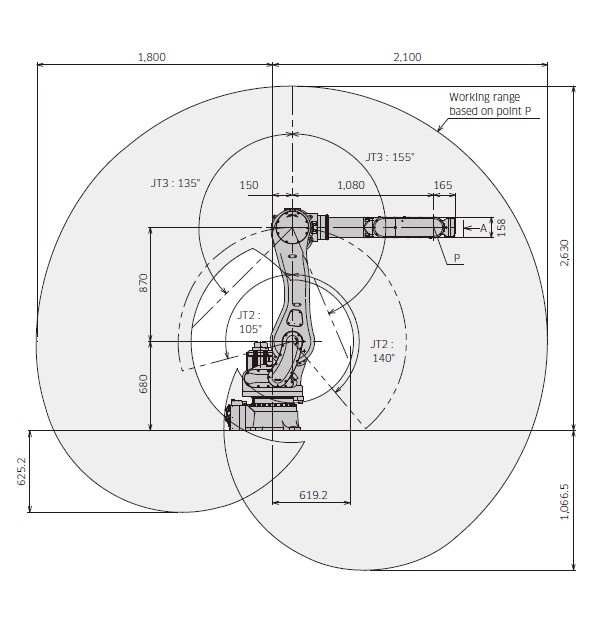

Motion Range (°)

Arm Rotation (JT1)

±180

Arm Out-in (JT2)

+140 - −105



Arm Up-down (JT3)

+135 - −155



Wrist Swivel (JT4)

±360



Wrist Bend (JT5)

±145



Wrist Twist (JT6)

±360



Max. Speed (°/s)

Arm Rotation (JT1)

180



Arm Out-in (JT2)

180



Arm Up-down (JT3)

185



Wrist Swivel (JT4)

260



Wrist Bend (JT5)

260



Wrist Twist (JT6)

360



Allowable Moment (N•m)

Wrist Swivel (JT4)

210



Wrist Bend (JT5)

210



Wrist Twist (JT6)

130



Allowable Moment of Inertia (kg•m2)

Wrist Swivel (JT4)

16.8



Wrist Bend (JT5)

16.8



Wrist Twist (JT6)

6.6



Mass (kg)

555

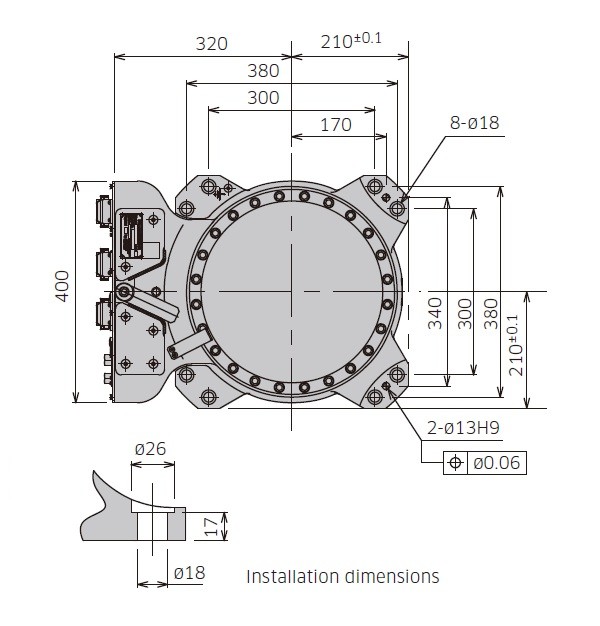

Mounting

Floor, Ceiling





Installation Environment

Ambient Temperature (°C)

0 - 45



Relative Humidity (%)

35 - 85 (No dew, nor frost allowed)

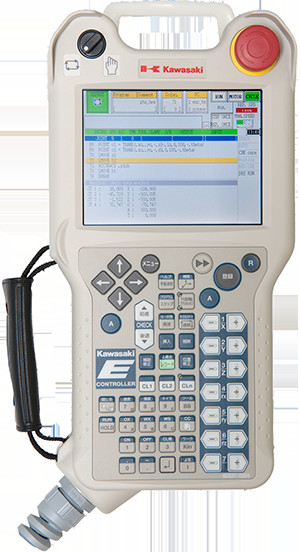

Controller / Power Requirements (kVA)

E02 / 7.5





Protection

Wrist : IP67 Base axis : IP65
