Lockup Valve KOSO CL-420 Lock Valve

Basic Information
Brand Name: KOSO
Model Number: CL-420
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 4-10 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Name: Lockup Valve KOSO CL-420 Lock Valve Brand: KOSO
Model: CL-420 Matrial: Alloy/Steel
Valve Style: Positioner Impedance: Max.500 20mA DC
Supply Pressure: 0.14~0.7Mpa Linearity: ±0.5% F.S
Hysteresis: ±0.5% F.S Sensitivity: ±0.2% F.S
Reapeatability: ±0.3% F.S
High Light:

Lockup Electric Control Valve

,

20mA Alloy Steel Lockup Valve

,

Linear Alloy Steel Lockup Valve

Product Description
introduction This valve is used for switching control of pneumatic circuits. Available in two types shown below, it is designed to
provide various control circuits as desired through combination. In using these valves, it is suggested that this manual be carefully read for proper and adequate knowledge of operation and
maintenance so as enable the valves to per from as they should..

Specification

Series CL-420
Model CL-420
Input signal 4~20mA analog signal or digit signal
Input impedance 250 ± 5% at 25℃
Characteristic Linear
Brand Name KOSO

FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made
optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For
Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For
Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE
CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.

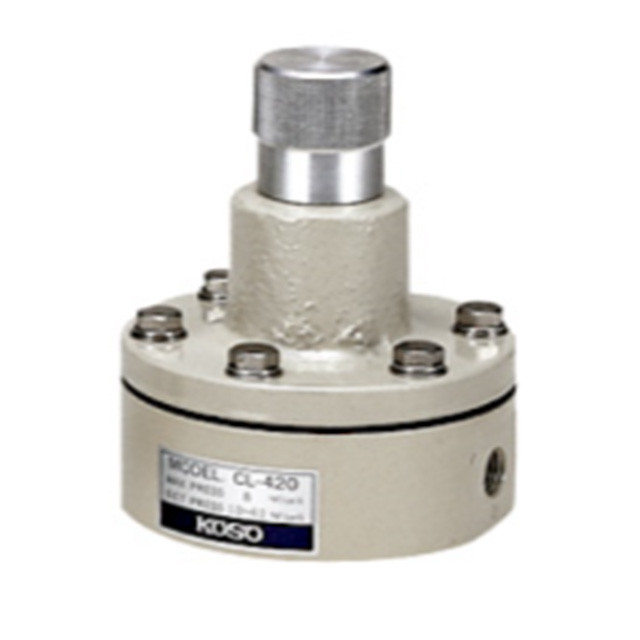

Lockup Valve KOSO CL-420 Lock Valve 0

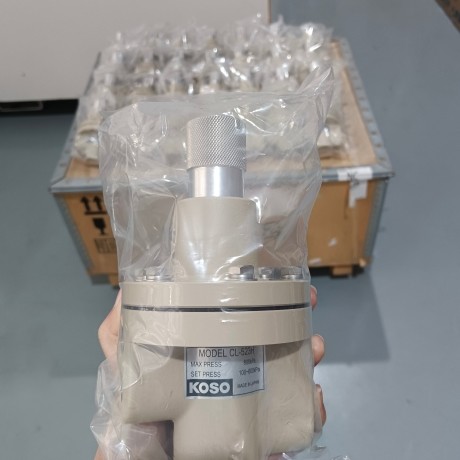

Lockup Valve KOSO CL-420 Lock Valve 1

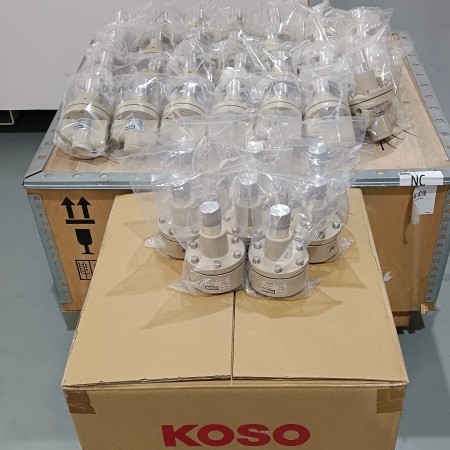

Lockup Valve KOSO CL-420 Lock Valve 2

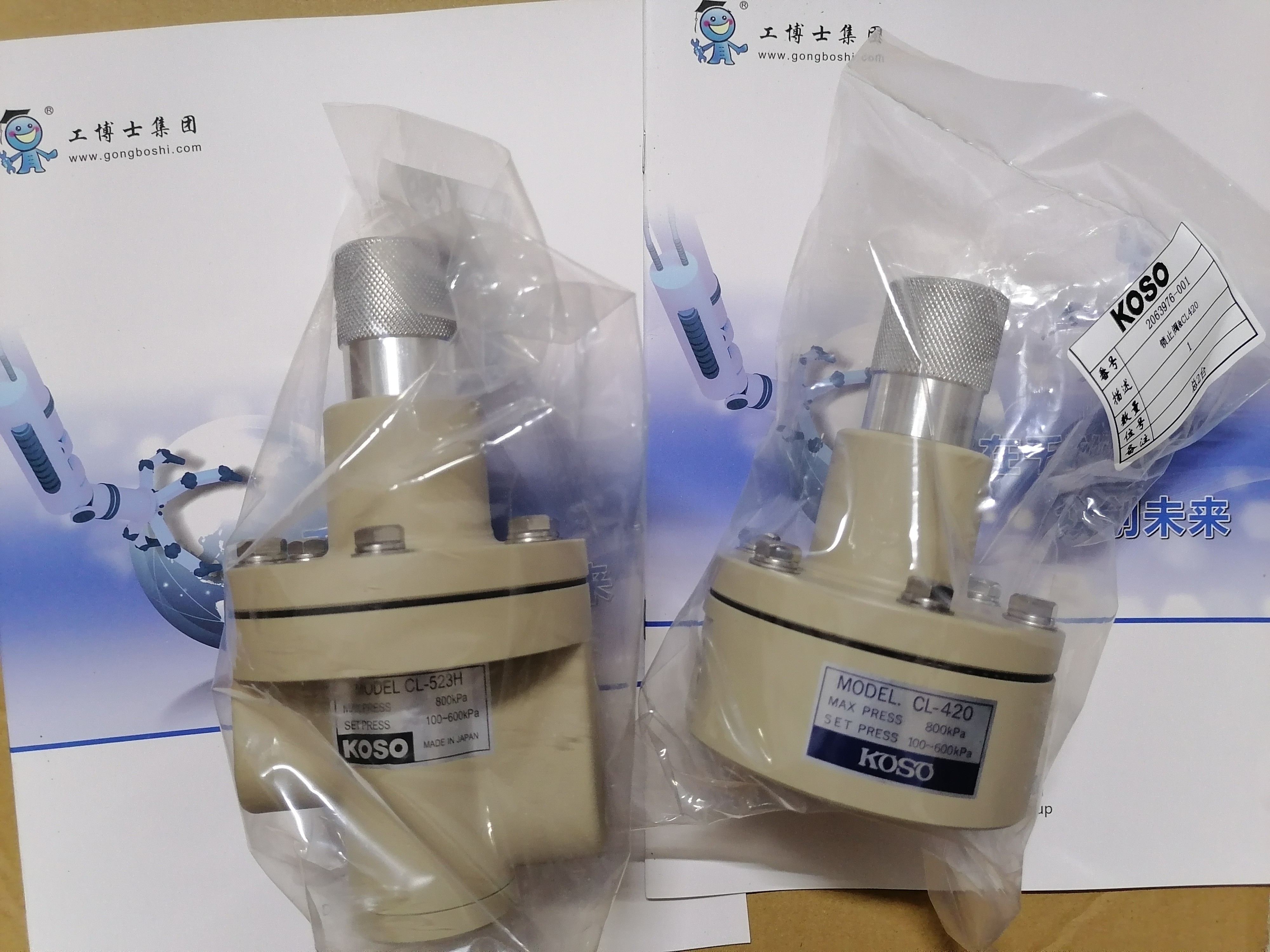

Lockup Valve KOSO CL-420 Lock Valve 3

Lockup Valve KOSO CL-420 Lock Valve 4
