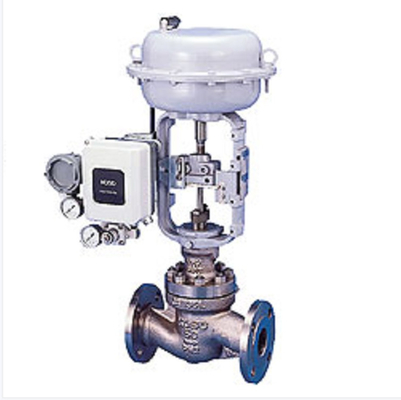

KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve

1
MOQ
Negotiation
Price
KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve
Brand: KOSO
Model: 510T
Matrial: Alloy/Steel
Valve Style: Globe Valve
Connections: Top Guided Single Seated Globe Valves
Body Size: 1/2" 8"
Linearity: ±0.5% F.S
Seat Leakage: 90CV*2.5
Bonnet Type: Standard Type
Gasket: Grooved Metal Gasket
Highlight:

Alloy Steel Single Seated Globe Valve

,

Diaphragm Single Seated Globe Valve

,

Linear Single Seated Globe Valve
Basic Infomation
Brand Name: KOSO
Model Number: 510T
Payment & Shipping Terms
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 4-10 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Description
Product Description
KOSO control valve 510T Top Guided Single Seated Globe Valves with 5200LA Diaphragm type Actuator pneumatic valve

Simple structure and compact size characterize our top
guided control valves. They are applicable in a wide scope
of liquid services as well as steam/gas services. Those
valves are easily adaptable to bellows, steam-jacketed and
long extension bonnets.
KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve 0KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve 1
Specification

Series 510T
Model KOSO control valve 510T Top Guided Single Seated Globe Valves with 5200LA Diaphragm type Actuator pneumatic valve
Input signal 4～20mA analog signal or digit signal
Input impedance 250 ± 5% at 25℃
Characteristic Linear
Brand Name KOSO

FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made
optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For
Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For
Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE
CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.


KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve 2

KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve 3



KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve 4

KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve 5

KOSO Control Valve 510T Top Guided Single Seated Globe Valves With 5200LA Diaphragm Type Actuator Pneumatic Valve 6
