FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap

FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap

PN16 Ball Float Steam Trap

Screwed Ball Type Steam Trap

Spirax Sarco Float Type Steam Trap

Place of Origin:

China

Brand Name:

Spirax Sarco

Model Number:

FTGS14

Contact Us

Request A Quote
Product Details
Description:
Vertical Connections With Flow From Top To Bottom
Body Design Conditions:
PN16
PMA:
16 Bar G @ 120 °C
TMA:
250 °C
MAT:
-10 °C
PMO:
14.6 Bar G
TMO:
TMO Maximum Operating Temperature 2
Designed For A Maximum Cold Hydraulic Test Pressure Of::
16 Bar G
Body Material:
Austenitic Stainless Steel
Valve Seat:
Stainless Stee
Connect:
Screwed & Flange
Product Description

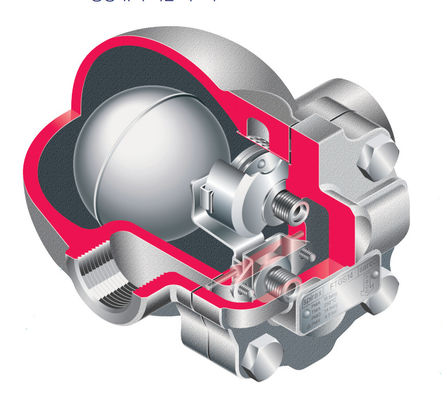

Spirax Sarco FLOAT AND THERMOSTATIC STEAM TRAPS FTGS14

Extremely versatile traps that work efficiently on both light and heavy condensate loads.



Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap 0FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap 1

Spirax Sarco FLOAT AND THERMOSTATIC STEAM TRAPS FTGS14FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap 2

Spirax Sarco FLOAT AND THERMOSTATIC STEAM TRAPS FTGS14FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap 3

Spirax Sarco FLOAT AND THERMOSTATIC STEAM TRAPS FTGS14FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap 4FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap 5FTGS14 Ball Float Steam Trap Spirax Sarco Screwed Ball Type Steam Trap 6
